Single Phase Solid State Relay 40A SSR, DC & AC Solid State Relay (IBEST)

Zhongshan IBEST Electrical Co., Ltd.
Single Phase Solid State Relay 40A SSR, DC & AC Solid State Relay (IBEST) thumbnail-1
Single Phase Solid State Relay 40A SSR, DC & AC Solid State Relay (IBEST) thumbnail-2
Single Phase Solid State Relay 40A SSR, DC & AC Solid State Relay (IBEST) thumbnail-3
Single Phase Solid State Relay 40A SSR, DC & AC Solid State Relay (IBEST) photo-1

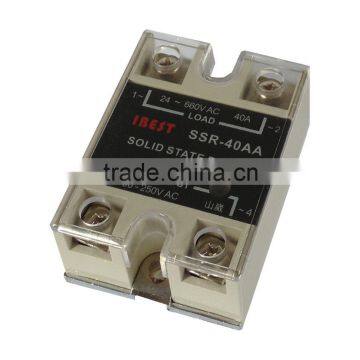

Single Phase Solid State Relay 40A SSR, DC & AC Solid State Relay (IBEST) photo-2
Single Phase Solid State Relay 40A SSR, DC & AC Solid State Relay (IBEST) photo-3
US$ 4.5 - 6 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
IBEST
Model Number:
SSR-40A, SSR-40AA
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name IBEST
Model Number SSR-40A, SSR-40AA
Theory Voltage Relay
Usage General Purpose
Size Miniature
Protect Feature Sealed
Contact Load High Power



IBEST Single Phase & Three Phase Solid State Relay







 1.Features of IBEST Single Phase DC Control Voltage Solid State Relay :







-         Load current range:  2A, 15A, 25A, 40A, 50A, 80A, 100A.



-         Load voltage range: AC 24~660V AC.



-         Control voltage: DC 3~32V  or  AC 90~250V ;



-         Control current: 6mA~25mA.



-         Input constant current control, AC Zero point On and OFF function.



-         Adop technic of glass passivation triac square piece(>50A), good in dispersing heat.



-         Optic isolated (>or=2000V AC 1min ), dual triac strong output or single triac reversal parallel connection strong output.





-         Input or output LED indication.



-         Widely used in various automatic fields like chemical fibre machinery, temperature controller, electric cooker, rubber machinery, fountain control, numerical control machinery etc.



-          Reliable quality to replace famous brands .









2. Ordering Code
Model and TypeLoad CurrentLoad VoltageControl VoltageAppearance Buy
SSR-15A AC 15A AC 24~660V DC 3~32V Normal
SSR-25A AC 25A AC 24~660V DC 3~32V Normal
SSR-40A AC 40A AC 24~660V DC 3~32V Normal
SSR-50A AC 50A AC 24~660V DC 3~32V Normal
SSR-60A AC 60A AC 24~660V DC 3~32V Normal
SSR-80A AC 80A AC 24~660V DC 3~32V Normal
SSR-100A AC 100A AC 24~660V DC 3~32V Normal

3. Technical Specifications:
Property projectSpecific parameter
Max. Load CurrentAC 5A, 15A, 25A, 40A, 50A, 80A, 100A
Load VoltageAC 24~660V
Isolated Voltage>or= 2000V AC 1 min.
Insulation Voltae>or=2000V AC 1 min.
Control VoltageDC 3~32V
Control Current6mA~25mA
Turn-On Voltage<or=1.3V
Off-set leakage<or= 1.3mA
Off state dv/dt300v/us
On - Off Time100ms
Frequency Range47/63 Hz
Status IndicatorRed LED
Ambient Temperature-40~80 C
Net Weight200g





 Single Phase Solid State Relay 40A SSR, DC & AC Solid State Relay (IBEST)Single Phase Solid State Relay 40A SSR, DC & AC Solid State Relay (IBEST)





 Our company is a professiona manufacutures of:





1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor, hall sensor, color mark sensor and analog sensor.



2, Digital meter: temperature controller, digital counter, digital timer, digital frequency/tacho/linespeed meter, digital panel meter, analog panel meter ...etc.)



3, Solid state relay: single phase and 3 phase



4, Rotary encoder and couplings .



5, Various type of cable and connectors..etc.



6, Pressure transmitters.



7, Safety light curtain.



Single Phase Solid State Relay 40A SSR, DC & AC Solid State Relay (IBEST)
