Single/Three Phase AC/DC Solid State Relay 5A/15A/25A/40A/50A/80A/100A, SSR Relay (IBEST)

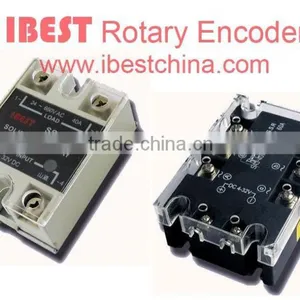

Single/Three Phase AC/DC Solid State Relay 5A/15A/25A/40A/50A/80A/100A, SSR Relay (IBEST) thumbnail-1
Single/Three Phase AC/DC Solid State Relay 5A/15A/25A/40A/50A/80A/100A, SSR Relay (IBEST) thumbnail-2
Single/Three Phase AC/DC Solid State Relay 5A/15A/25A/40A/50A/80A/100A, SSR Relay (IBEST) thumbnail-3
Single/Three Phase AC/DC Solid State Relay 5A/15A/25A/40A/50A/80A/100A, SSR Relay (IBEST) photo-1

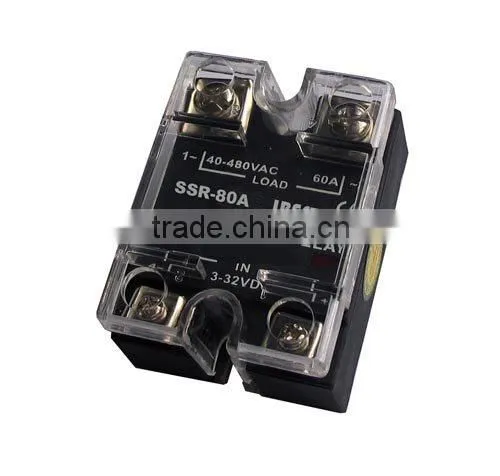

Single/Three Phase AC/DC Solid State Relay 5A/15A/25A/40A/50A/80A/100A, SSR Relay (IBEST) photo-2
Single/Three Phase AC/DC Solid State Relay 5A/15A/25A/40A/50A/80A/100A, SSR Relay (IBEST) photo-3
US$ 3 - 10 MOQ: 5 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
IBEST
Model Number:
SSR-15A(5A/25A/40A/50A/80A/100A)
Contact Supplier Request Quote Chat Now
Zhongshan IBEST Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name IBEST
Model Number SSR-15A(5A/25A/40A/50A/80A/100A)
Theory Voltage Relay
Usage General Purpose
Size Miniature
Protect Feature Sealed
Contact Load High Power

IBEST Single Phase & Three Phase Solid State Relay



1.Features of IBEST Single Phase DC Control Voltage Solid State Relay :

-         Load current range:  2A, 15A, 25A, 40A, 50A, 80A, 100A.

-         Load voltage range: AC 24~660V AC.

-         Control voltage: DC 3~32V  or  AC 90~250V ;

-         Control current: 6mA~25mA.

-         Input constant current control, AC Zero point On and OFF function.

-         Adop technic of glass passivation triac square piece(>50A), good in dispersing heat.

-         Optic isolated (>or=2000V AC 1min ), dual triac strong output or single triac reversal parallel connection strong output.

-         Input or output LED indication.

-         Widely used in various automatic fields like chemical fibre machinery, temperature controller, electric cooker, rubber machinery, fountain control, numerical control machinery etc.

-          Reliable quality to replace famous brands .



2. Ordering Code
Model and Type Load Current Load Voltage Control Voltage Appearance   Buy
SSR-15A  AC 15A  AC 24~660V  DC 3~32V  Normal
SSR-25A  AC 25A  AC 24~660V  DC 3~32V  Normal
SSR-40A  AC 40A  AC 24~660V  DC 3~32V  Normal
SSR-50A  AC 50A  AC 24~660V  DC 3~32V  Normal
SSR-60A  AC 60A  AC 24~660V  DC 3~32V  Normal
SSR-80A  AC 80A  AC 24~660V  DC 3~32V  Normal
SSR-100A  AC 100A  AC 24~660V  DC 3~32V  Normal

3. Technical Specifications:
Property project Specific parameter
Max. Load Current AC 5A, 15A, 25A, 40A, 50A, 80A, 100A
Load Voltage AC 24~660V
Isolated Voltage >or= 2000V AC 1 min.
Insulation Voltae >or=2000V AC 1 min.
Control Voltage DC 3~32V
Control Current 6mA~25mA
Turn-On Voltage <or=1.3V
Off-set leakage <or= 1.3mA
Off state dv/dt 300v/us
On - Off Time 100ms
Frequency Range 47/63 Hz
Status Indicator Red LED
Ambient Temperature -40~80 C
Net Weight 200g



 Single/Three Phase AC/DC Solid State Relay 5A/15A/25A/40A/50A/80A/100A, SSR Relay (IBEST)Single/Three Phase AC/DC Solid State Relay 5A/15A/25A/40A/50A/80A/100A, SSR Relay (IBEST)

Our company is a professiona manufacutures of:

1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor, hall sensor, color mark sensor and analog sensor.

2, Digital meter: temperature controller, digital counter, digital timer, digital frequency/tacho/linespeed meter, digital panel meter, analog panel meter ...etc.)
3, Solid state relay: single phase and 3 phase
4, Rotary encoder and couplings
5, Various type of cable and connectors..etc.
6, Pressure transmitters.
7, Safety light curtain.

Single/Three Phase AC/DC Solid State Relay 5A/15A/25A/40A/50A/80A/100A, SSR Relay (IBEST)



Welcome to contact us!

IBEST ELECTRICAL CO.LTD

wwwibestchinacom
