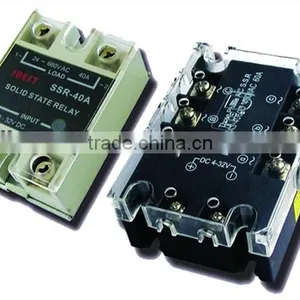

100A Solid State Relay, 100A SSR, 100A Crydom SSR Quality Choice

100A Solid State Relay, 100A SSR, 100A Crydom SSR Quality Choice thumbnail-1
100A Solid State Relay, 100A SSR, 100A Crydom SSR Quality Choice thumbnail-2
100A Solid State Relay, 100A SSR, 100A Crydom SSR Quality Choice thumbnail-3
100A Solid State Relay, 100A SSR, 100A Crydom SSR Quality Choice thumbnail-4
100A Solid State Relay, 100A SSR, 100A Crydom SSR Quality Choice photo-1
100A Solid State Relay, 100A SSR, 100A Crydom SSR Quality Choice photo-2
100A Solid State Relay, 100A SSR, 100A Crydom SSR Quality Choice photo-3
100A Solid State Relay, 100A SSR, 100A Crydom SSR Quality Choice photo-4
US$ 10 - 13 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
IBEST
Model Number:
SSR-100A, SSR-100AA
Contact Supplier Request Quote Chat Now
Zhongshan IBEST Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name IBEST
Model Number SSR-100A, SSR-100AA
Theory Voltage Relay
Usage General Purpose
Size Miniature
Protect Feature Sealed
Contact Load High Power

IBEST Single Phase & Three Phase Solid State Relay



  1.Features of IBEST Single Phase DC Control Voltage Solid State Relay :

-         Load current range:  2A, 15A, 25A, 40A, 50A, 80A, 100A.

-         Load voltage range: AC 24~660V AC.

-         Control voltage: DC 3~32V  or  AC 90~250V.

-         Control current: 6mA~25mA.

-         Input constant current control, AC Zero point On and OFF function.

-         Adop technic of glass passivation triac square piece(>50A), good in dispersing heat.

-         Optic isolated (>or=2000V AC 1min ), dual triac strong output or single triac reversal parallel connection strong output.

-         Input or output LED indication.

-         Widely used in various automatic fields like chemical fibre machinery, temperature controller, electric cooker, rubber machinery, fountain control, numerical control machinery etc.

-          Reliable quality to replace famous brands .



2. Ordering Code
Model and Type Load Current Load Voltage Control Voltage Appearance   Buy
SSR-15A  AC 15A  AC 24~660V  DC 3~32V  Normal
SSR-25A  AC 25A  AC 24~660V  DC 3~32V  Normal
SSR-40A  AC 40A  AC 24~660V  DC 3~32V  Normal
SSR-50A  AC 50A  AC 24~660V  DC 3~32V  Normal
SSR-60A  AC 60A  AC 24~660V  DC 3~32V  Normal
SSR-80A  AC 80A  AC 24~660V  DC 3~32V  Normal
SSR-100A  AC 100A  AC 24~660V  DC 3~32V  Normal

3. Technical Specifications:
Property project Specific parameter
Max. Load Current AC 5A, 15A, 25A, 40A, 50A, 80A, 100A
Load Voltage AC 24~660V
Isolated Voltage >or= 2000V AC 1 min.
Insulation Voltae >or=2000V AC 1 min.
Control Voltage DC 3~32V
Control Current 6mA~25mA
Turn-On Voltage <or=1.3V
Off-set leakage <or= 1.3mA
Off state dv/dt 300v/us
On - Off Time 100ms
Frequency Range 47/63 Hz
Status Indicator Red LED
Ambient Temperature -40~80 C
Net Weight 200g



 100A Solid State Relay, 100A SSR, 100A Crydom SSR100A Solid State Relay, 100A SSR, 100A Crydom SSR



 Our company is a professiona manufacutures of:

1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor, hall sensor, color mark sensor and analog sensor.

 2, Digital meter: temperature controller, digital counter, digital timer, digital frequency/tacho/linespeed meter, digital panel meter, analog panel meter ...etc.)

3, Solid state relay: single phase and 3 phase.
4, Rotary encoder and couplings .
5, Various type of cable and connectors..etc.
6, Pressure transmitters.
7, Safety light curtain.
100A Solid State Relay, 100A SSR, 100A Crydom SSR
