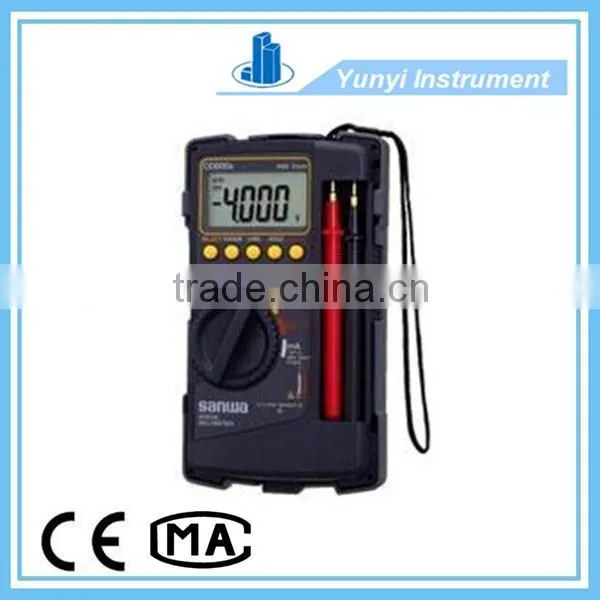

Sanwa Digital Multimeter Good Quality

Xi'an Yunyi Instrument Co., Ltd. Gold Verified Supplier
5Yrs
Sanwa Digital Multimeter Good Quality thumbnail-1
Sanwa Digital Multimeter Good Quality photo-1
US$ 34 - 63 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Japan
Brand Name:
Sanwa
Model Number:
CD-800a
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Japan
Brand Name Sanwa
Model Number CD-800a
Measuring Current Range 40m/400mA
Measuring Voltage Range 400m/4/40/400/600V
Measuring Resistance Range 400/4K/40K/400K/4M/40MΩ
Measuring Capacitance Range 50n/500n/5μ/50μ/100μF
Dimensions H176*W104*D46mm

Specifications

Sanwa Digital multimeter CD-800a
1 small volume
2 easy Operation

Sanwa Digital multimeter CD-800a



Specifications

Function

Measuring Range

Accuracy

Resolution

Input Impedance

DCV

400m/4/40/400/600V

±(0.7%+3)

0.1mv

DC:10M-100MΩ

AC:10M-11MΩ

ACV

4/40/400/600V

±(1.6%+9)

0.001v

DCA

40m/400mA

±(2.2%+5)

0.01mA

ACA

40m/400mA

±(2.8%+5)

0.01mA

Resistance

400/4K/40K/400K/4M/40MΩ

±(1.5%+5)

0.1Ω

Capacitance

50n/500n/5μ/50μ/100μF

±(5%+10)

0.01nF

Frequency

5HZ-100KHZ

±(0.5%+3)







±(0.5%+5)



Continuity

Buzzer sounds at between 10Ω and120Ω.Open Voltage:Approx.0.4V

Diode Test

Open voltage:Approx.1.5V

Bandwidth

40-400HZ (sine)

Fuse/ Battery

0.5A/250V   ø5.2*20mm  ceramic

 R6P*2

Size/Weight

H176*W104*D46mm/340g

Standard Accessories

Hand strap, Instruction Manual



Features:

1 3-3 / 4 digits 4000 count

2 0.7% best accuracy

3 Capacitance measurement
4 Not suitable for measuring condensers with large leak current

5        Frequency measurement (AC sine wave only)

6        Data hold / Range hold

7     Relative value

8     Auto power off (30min.) (cancelable)

9     Low power ohm (input voltage 0.4V) at continuity range

10Solid & protective body cover that can also be used as a tilt stand

11Chip holder behind the body cover

12Display : numeral display 4000

13Sampling rate: 3 times / sec.
