Home > Instruments & Meters > Meter for Electricity > Energy Meter & Power Meter > ac Voltage Digital Panel Meter

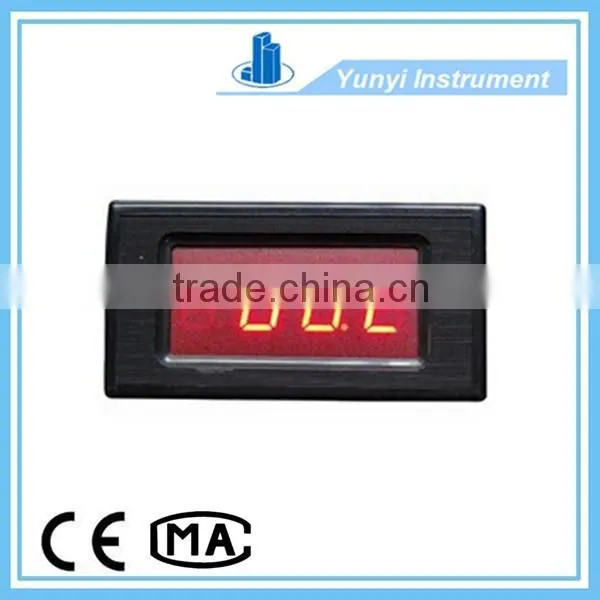

ac Voltage Digital Panel Meter

Name: ac Voltage Digital Panel Meter
Brand: Yunyi
SKU: 109094289
Availability: InStock

ac Voltage Digital Panel Meter thumbnail-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shaanxi, China

Brand Name:

Yunyi

Accuracy Class:

±(1% + 3)

Contact Supplier Request Quote Chat Now

Xi'an Yunyi Instrument Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China main port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shaanxi, China

Brand Name Yunyi

Accuracy Class ±(1% + 3)

Operating Temperature common temperature

Dimensions 79*43*17

Specifications

digital panel meter
1 small volume
2 easy Operation

Digital panel meter

Model: PM436 series digital panel meters

Dashboard is a semi-finished product, which is a professional current or voltage monitoring equipment, machinery, products, equipment.

Port Description PM436 series
CON1 DC 5V power port
CON2-1 DC 5V power input port
CON2-2 negative DC 5V power input port
Port CON2-3P4-2's
CON2-4 NC
CON2-5com common / IN-signal negative input
CON2-6IN + signal negative input
CON3 external signal input port

· P3, P2, P1 short show, ten, one hundred decimal point
· Trimming potentiometer adjustment value display accuracy

PM436 (voltage tester) DC voltage 0 ~ 450V Default: 200mV

PM436A (voltage tester) Default 0 ~ 400V AC voltage: 400V

PM436B (current tester) DC current 0 ~ 5A Default: 2A
Accuracy: ± (1% + 3)
Resolution: 0.1 mV or 0.1A
--- PM436 PM436A PM436B PM436D PM436F

Can be built partial pressure √ √ √ √ ×
DC voltage monitoring √ × × × ×
AC voltage monitoring × √ × × ×
DC current monitoring × × √ × ×
AC current monitoring × × × √ ×
Frequency Monitoring × × × × √

• --------- Built-dividing resistor configuration
RA RB input voltage
200mV or less OΩ 10MΩ
200mV-2V 10MΩ 1MΩ
2V-20V 10MΩ 100KΩ
20V-200V 10MΩ 10KΩ
200V-500V 10MΩ 1KΩ

LED digital tube

Display Size: 46 × 20

Installation size: 76.5 × 39.2

Dimensions: 79 × 43 × 17

Weight: 37g

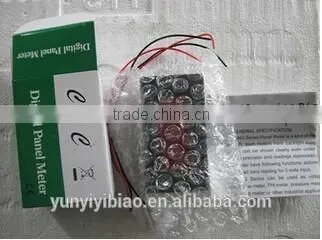

Standard configuration: bare tables, bubble bags, manual, two 2.0 cable, Box
