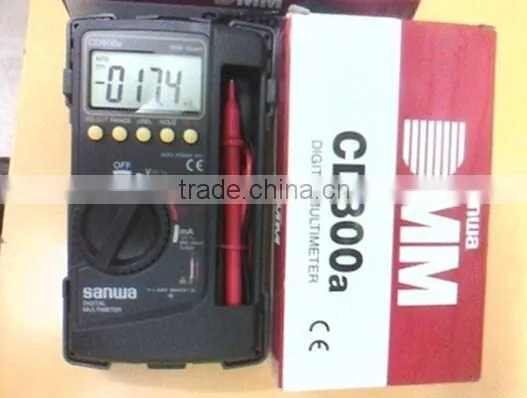

2014 new product Sanwa Digital multimeter CD-800a

Sanwa Digital multimeter CD-800a export standard packing

Specifications

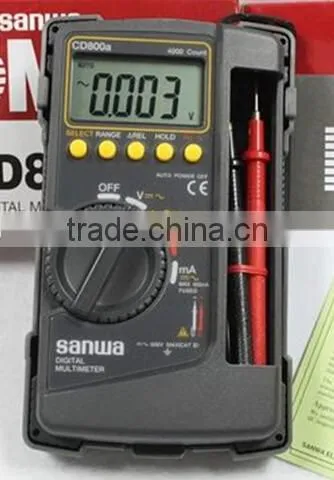

2014 new product Sanwa Digital multimeter CD-800a
1 small volume
2 easy Operation

2014 new product Sanwa Digital multimeter CD-800a





Specifications of 2014 new product Sanwa Digital multimeter CD-800a:

Function	Measuring Range	Accuracy	Resolution	Input Impedance
DCV	400m/4/40/400/600V	±(0.7%+3)	0.1mv	DC:10M-100MΩ AC:10M-11MΩ
ACV	4/40/400/600V	±(1.6%+9)	0.001v
DCA	40m/400mA	±(2.2%+5)	0.01mA
ACA	40m/400mA	±(2.8%+5)	0.01mA
Resistance	400/4K/40K/400K/4M/40MΩ	±(1.5%+5)	0.1Ω
Capacitance	50n/500n/5μ/50μ/100μF	±(5%+10)	0.01nF
Frequency	5HZ-100KHZ	±(0.5%+3)
		±(0.5%+5)
Continuity	Buzzer sounds at between 10Ω and120Ω.Open Voltage:Approx.0.4V
Diode Test	Open voltage:Approx.1.5V
Bandwidth	40-400HZ (sine)
Fuse/ Battery	0.5A/250V   ø5.2*20mm  ceramic	R6P*2
Size/Weight	H176*W104*D46mm/340g
Standard Accessories	Hand strap, Instruction Manual



Features of 2014 new product Sanwa Digital multimeter CD-800a:

1 3-3 / 4 digits 4000 count

2 0.7% best accuracy

3 Capacitance measurement
4 Not suitable for measuring condensers with large leak current

5        Frequency measurement (AC sine wave only)

6        Data hold / Range hold

7     Relative value

8     Auto power off (30min.) (cancelable)

9     Low power ohm (input voltage 0.4V) at continuity range

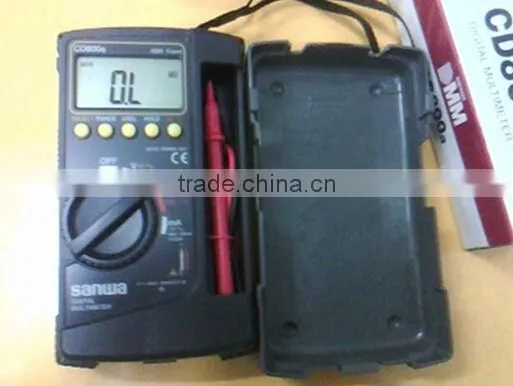

10Solid & protective body cover that can also be used as a tilt stand

11Chip holder behind the body cover

12Display : numeral display 4000

13Sampling rate: 3 times / sec.
