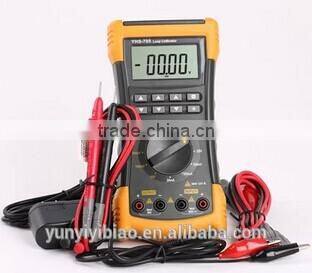

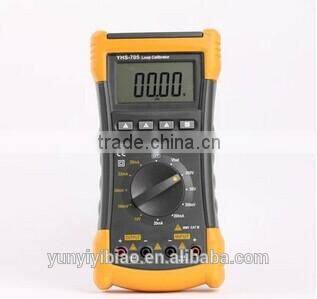

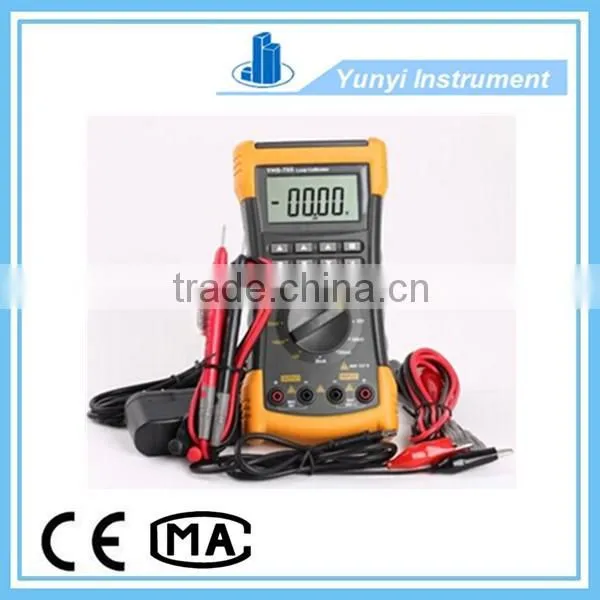

High Accuracy Loop Calibrator YHS-705

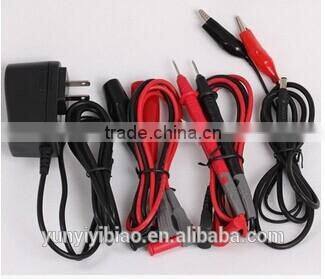

loop calibrator Standard packing(or according to the customer request)

Specifications

loop calibrator
1 professional manufacturer
2 quick shipment
3 high accuracy



 Loop calibrator



Technical Data

DC Signal Measurement		DC Signal Output
Range	Accuracy	Range	Accuracy
0-200.00mV	(0.05% of reading+3)	0-10.000V	±(0.05% of reading +4 Counts)
0-20.000V	±(0.1% of reading +3Counts)	0-100.00mV	±(0.05% of reading +4 Counts)
0-200.00V	±(0.1% of reading +3 Counts)	0-20.00mV	±(0.05% of reading +4 Counts)
0-22.000mA	±(0.05% of reading +4 Counts)	0-22.000mA	±(0.05%v+4 Counts)
0-200.00mA	±(0.05% of reading +7 Counts)	0-20.000mA	±(0.05% of reading +4 Counts)



Features of  calibration YHS-705

1. Can select Min / Max / Average / Hold / Relative measure mode in measurement.

2. When measure current ,it can provide +24V loop power supply for the transmitter simultaneously.

3. The Calibrator can output current to the transmitter and other equipment, can also simulate a transmitter to output current.

4. Four kinds ramp step rate selectable, can test the response speed of the transmitter in the case of one hand free.

5. Four kinds range to the current output,corresponding to 0.05% accuracy, resolution 1μA, it also shows the percentage range simultaneously.

6. Millivolt measurement and output function for testing and calibration for the thermocouple.

7. LCD backlight display, maximum 40,000 words(Counts), suitable for use in any lighting condition.

8. Built-in rechargeable NiMH battery pack, plenty of power and can be replaced in any time.











About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.



If you need this loop calibrator  , please visit the website
