Help Center600x600mm Led Panel Light
Related Products
Super bright 2835LED as lighting sources, aluminium frame with good heat conduction.
Instant start, no flickering, no humming. Input voltage 28-36V ~ 1.1A(LED Panel Light with constant current driver), No electric wave, Imported light diffusion material,mercury and lead free.
High lumen output,high efficiency,energy saving up to 60%, Eco-friendly, energy-saving and high luminous efficacy. excellent heat dissipation structure,long lifespan,normal use can reach over 30,000hours.
BASIC PARAMETER
- Item NO.: GLM-ACAC-X
- Dimension: 600mm x 600mm x 8mm
- LED type: 2835SMD
- Material: Aluminium + PMMA
- Output voltage: 28-36V~1.1A
- Working temperature: -10.C~40.C
- Installation method: Embedded.Hanging
- IP rate IP41
- N.W.(±0.1Kg) 3.18Kg
TECHNICAL PARAMETER
- LED Power: 35 Watt
- Q'ty in series and parallel: 10S 9P * 2
- LED Q'ty: 180pcs SMD2835
- Drive Current: 56mA
- Beam Way: Beam at two sides
PHOTOELECTRICITY PARAMETER
- CCT .: 2900-6500K
- Flux.(±10%): 3200lm
- Input Power: 40W
- Light Efficiency(±10%): 80lm / Watt
- CRI: Ra>80
- Lux.at 2Meters(±10%): 210lx
- Dimmable: Yes
- Lighting Angle: 120°
- PF: >0.9
DIMENSIONAL DRAWING

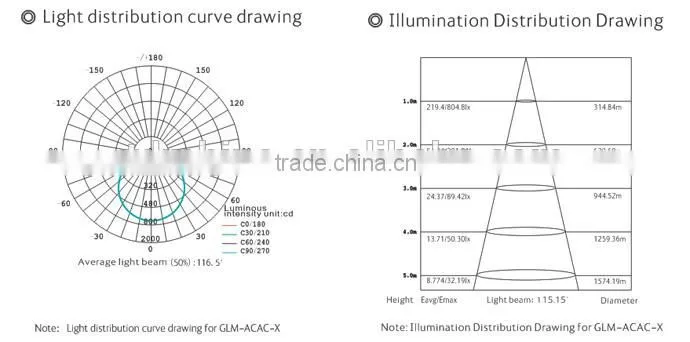

TESTING REPORT
APPLICATION FOR LED PANEL LIGHT
1. Commercial lighting, environmentally friendly lighting, warehouse , supermarket and home illumination.
2. IT, call centers, shopping malls and Exhibition Hall, art gallery, the hospital hotel and other public places.
3. Exhibition Hall, art galleries, museums, offices, reading-room, corridor, staircase lighting,such as contour range
PRODUCT DETAILS FOR 600X600X8MM LED PANEL LIGHT
NOTE
1. 600x600x8mm LED Panel Light When installation,try to avoid the minefields,strong magnetic field and high-voltage area;
2. Ensure a solid connection correctly in order to avoid short-circurt damage to components and trigger fires;
3. Installed in a well-ventilated place to ensure appropriate environmental temperature;
4. Please check local voltage in accordance with the product requirements before using the product;
5. To prohibit the live wiring for LED panel light, check to confirm the wiring correct, confirm no short-circuit and then power on;
6. In case of failures. do not maintain it in private.
