600x600 40W Led Panel Light

600x600 40W Led Panel Light thumbnail-1
600x600 40W Led Panel Light photo-1
US$ 1 - 100 MOQ: 100 Pieces
Key Specifications
Get Latest Price
LED Light Source:
SMD 2835
Warranty(Years):
3
Input Voltage(V):
AC100~240V
Contact Supplier Request Quote Chat Now
Shenzhen Tdrshine Optoelectronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD 2835
Warranty(Years) 3
Input Voltage(V) AC100~240V
Lamp Power(W) 40
Lamp Luminous Flux(lm) 4000lm
Lamp Luminous Efficiency(lm/w) 86.8
Color Temperature(CCT) Other, 3000K/4000K/6000K (±10%)
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 10000
Lamp Body Material Aluminum
IP Rating IP44
Certification CE, ETL, FCC
Place of Origin China
Brand Name Tdrshine
Model Number GL-PL-S600-PW/WWNW
Features
1. Thickness:12mm
2. Main material cover : Acrylic lightguide board (guide light from four edges)
3. Color of LED panel light: Single color,bi-colour, RGB; (various colors available)
4. Luminous efficacy :86.8lm/W
5. Lifetime: ≥100,000h
6. Installation methods for option: Hanging and Embedded
7. Certificate: TUV,CE, FCC, RoHS approved, with 3 year quality warranty.
DIMENSIONAL DRAWING
600x600 40W led panel light

PARAMETER

  • Item NO.:                                                          GL-PL-S600-PW/WWNW
  • Dimension:                                                      600mm x 600mm x 12mm
  • LED type:                                                          SMD2835
  • LED Q'ty:                                                            396pcs
  • Material:                                                             Aluminium + PMMA
  • Beam Way:                                                        Beam at two sides
  • Working temperature:                                     -10.C~40.C
  • Ambient temperatur:                                       -30.C~70.C
  • Installation method:                                        Embedded.Hanging
  • IP rate                                                                 IP40
  • N.W.(±0.1Kg)                                                    4.4Kg

PHOTOELECTRICITY PARAMETER

  • CCT .:                                                                  2900-6500K
  • Flux.(±10%):                                                      4000lm
  • Light Efficiency(±10%):                                   80lm / Watt
  • Input voltage:                                                     AC 110-240V
  • Input Power:                                                      46W
  • CRI:                                                                     Ra>80
  • Lux.at 2Meters(±10%):                                     300lx
  • Dimmable:                                                         Dimmable or Non Dimmable are available
  • Lighting Angle:                                                  120°
  • PF:                                                                       >9.0

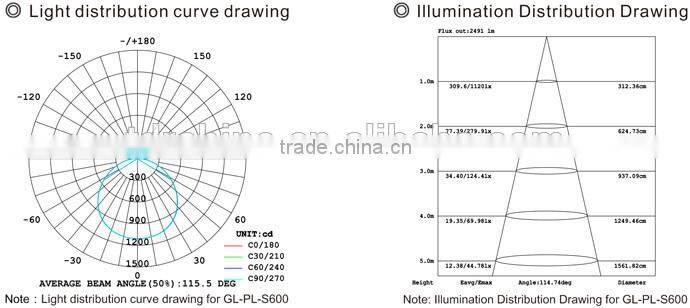

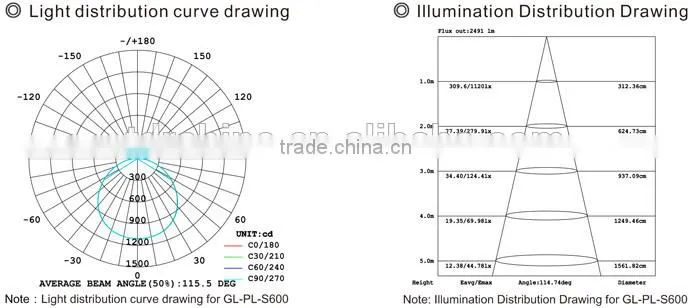

TESTING REPORT

600x600 40W led panel light

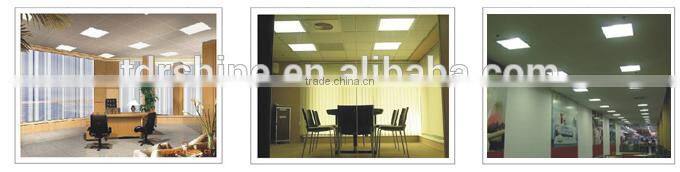

APPLICATION

600x600 40W led panel light

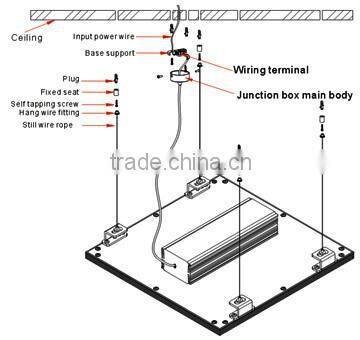

INSTALLING PROCEDURE

600x600 40W led panel light

Step1: Punch 5 holes in the ceiling
Step2: Punch the “Plug”into hole
Step3: Lock-in the base to Plug hole with "self tapping screw"
Step4: Screw the fast connect into the base
Step5: Fix the base on the ceiling surface
Step6: Draw the “Input power wire ”from wire entry then connect with terminal
Step7: Fix the base main part and base plate with screws
Step8: Finish

Note of led panel light:
1.Rip off the Pellicle after you finish the installation.To assure cleanly of lighting side.
2.Debugging the LED panel light after installation first.Then put it on .
3.Only fixation and maintainance by professional technical person

ABOUT SPECIFICATION AND LIGHT SOURCES OF LED PANEL LIGHT

Friends, our current led panel light can classified by SMD LED light sources: 3528 led panel light,2835 led panel light , 5630 led panel light. According to the specification can be divided: 300x300mm led panel lamp,300x600mm led panel lamp,300x1200mm led panel lamp,595x595mm led panel lamp,600x600mm led panel lamp. You can choose any one kinds of light sources and size combined you satisfied products, we have been successful test, and can be safe use.
