300x600 30W Led Panel Light

300x600 30W Led Panel Light photo-1
US$ 1 - 100 MOQ: 100 Pieces
Key Specifications
Get Latest Price
LED Light Source:
SMD 5630
Warranty(Years):
3
Input Voltage(V):
AC100~240V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source SMD 5630
Warranty(Years) 3
Input Voltage(V) AC100~240V
Lamp Power(W) 30
Lamp Luminous Flux(lm) 3000lm
Lamp Luminous Efficiency(lm/w) 86.8
Color Temperature(CCT) Other, 3000K/4000K/6000K (±10%)
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 100000
Lamp Body Material Aluminum
IP Rating IP44
Certification CE, ETL, FCC
Place of Origin China
Brand Name Tdrshine
Model Number GL-PL-H306-PW/WW/NW

GENRAL LIGHTING led light panelhave an enormous yield with minimal power consumption and are thus suited for room illumination commercial (office, retail, schools, etc.). The high number of powerful SAMSUNG 5630 SMD LEDs, the light very evenly distributed over a large area. The continuous bright light does not strain the eyes and is perceived as pleasant. The simple installation makes this product easy to handle and universally applicable for every installer.
The GENERAL LIGHTING led panel light feature a high processing standards, a reliable and consistent performance and comparatively low cost. The LED panels are supplied with dimmable power supply. The viewing angle of 120 ° ensures a large-area illumination.

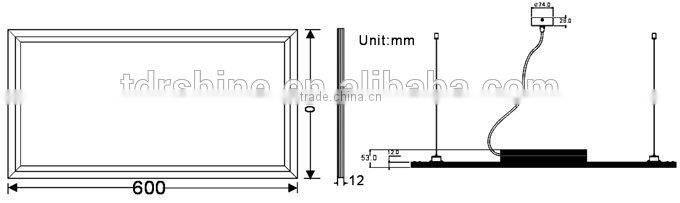

DIMENSIONAL DRAWING300x600 30W led panel light

PARAMETER

  • Item NO.:                                                          GL-PL-H306-PW/WW/NW
  • Dimension:                                                      300mm x 300mm x 12mm
  • LED type:                                                          SMD 5630
  • LED Q'ty:                                                           110pcs
  • Material:                                                             Aluminium + PMMA
  • Beam Way:                                                        Beam at two sides
  • Working temperature:                                     -10.C~40.C
  • Installation method:                                        Embedded.Hanging
  • IP rate                                                                 IP40
  • N.W.(±0.1Kg)                                                    2.4Kg

PHOTOELECTRICITY PARAMETER

  • CCT .:                                                                  2900-6500K
  • Flux.(±10%):                                                      3000lm
  • Light Efficiency(±10%):                                   80lm / Watt
  • Input voltage:                                                     AC 110-240V
  • Input Power:                                                      30W
  • CRI:                                                                     Ra>80
  • Lux.at 2Meters(±10%):                                    200lx
  • Dimmable:                                                         Dimmable or Non Dimmable are available
  • Lighting Angle:                                                  120°
  • PF:                                                                       >9.0

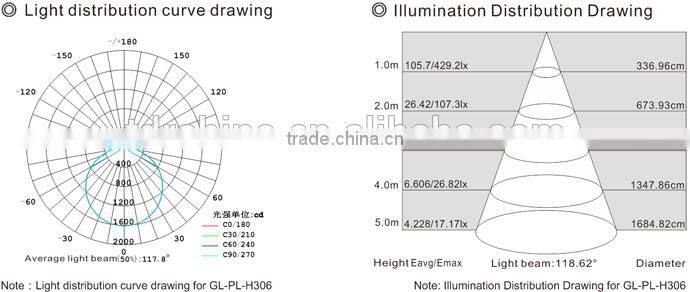

TESTING REPORT FOR 15W LED PANEL LIGHT

300x600 30W led panel light

APPLICATION

300x600 30W led panel light

Office lighting / Residential lighting / Living Room lighting / Kitchen lighting / Bathroom lighting / Outdoor lighting
