Help Center300x300 26W Led Panel Light
Related Products
1. Light source: Top 5630 SMD LEDs Quick response when power on , no noise, no UV, no strobe light;
2. A well-lit office environment is conducive to physical comfort in addition to enhanced productivity.
3. Badly-lit environments can lead to a feeling of discomfort, eye strain, inefficiency and high levels of absence and staff turnover

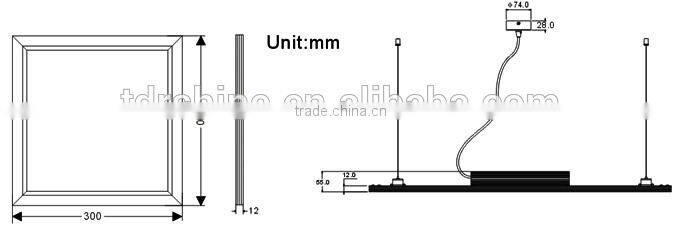

DIMENSIONAL DRAWING
PARAMETER
- Item NO.: GLM-AAAN-X
- Dimension: 300mm x 300mm x 12mm
- LED type: SMD 5630
- LED Q'ty: 96pcs
- Material: Aluminium + PMMA
- Beam Way: Beam at two sides
- Working temperature: -10.C~40.C
- Installation method: Embedded.Hanging
- IP rate IP40
- N.W.(±0.1Kg) 1.3Kg
PHOTOELECTRICITY PARAMETER
- CCT .: 2900-6500K
- Flux.(±10%): 2400lm
- Light Efficiency(±10%): 80lm / Watt
- Input voltage: AC 110-240V
- Input Power: 27W
- CRI: Ra>80
- Lux.at 2Meters(±10%): 170lx
- Dimmable: Dimmable or Non Dimmable are available
- Lighting Angle: 120°
- PF: >9.0
TESTING REPORT FOR 26W LED PANEL LIGHT
PRODUCT DETAILS FOR 300X300X12MM LED PANEL LIGHT
APPLICATION
1. Commercial lighting, environmentally friendly lighting, warehouse , supermarket and home illumination.
2. IT, call centers, shopping malls and Exhibition Hall, art gallery, the hospital hotel and other public places.
3. Exhibition Hall, art galleries, museums, offices, reading-room, corridor, staircase lighting,such as contour range
NOTE
1,When installation LED panel light, try to avoid the minefields, strong magnetic field and high-pressure region.
2,Ensuring a solid connection correctly in order to avoid short-circuit damage to components and trigger fires.
3,Installed in a well-ventilated place to ensure appropriate environmental temperature.
4,Using the led panel light, please check the local voltage compliance product requirements.
5,To prohibit the live wiring, check to confirm wiring is correct, check the no short-circuit, and then power!
6,In case of failures, do not maintenance in private.
