Help Center300x600mm Led Panel Light
US$ 1 - 100
MOQ: 100 Pieces
Key Specifications
Get Latest Price
LED Light Source:
2835SMD
Warranty(Years):
3
Input Voltage(V):
AC100~240V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
LED Light Source
2835SMD
Warranty(Years)
3
Input Voltage(V)
AC100~240V
Lamp Power(W)
24
Lamp Luminous Flux(lm)
1900lm
Lamp Luminous Efficiency(lm/w)
80
Color Temperature(CCT)
Other, 3000K -4000K -6000K
Working Temperature(℃)
-20, 40
Working Lifetime(Hour)
100000
Lamp Body Material
Aluminum
IP Rating
IP44
Certification
CE, ETL, FCC
Place of Origin
China
Brand Name
Tdrshine
Model Number
GLM-ACAB-X
Super bright 2835LED as lighting sources, aluminium frame with good heat conduction.
Instant start, no flickering, no humming. Input voltage 28-36V ~ 1.1A(LED Panel Light with constant current driver), No electric wave, Imported light diffusion material,mercury and lead free.
High lumen output,high efficiency,energy saving up to 60%, Eco-friendly, energy-saving and high luminous efficacy. excellent heat dissipation structure,long lifespan,normal use can reach over 30,000hours.
TUV CE certificated, lead free, eco-friendly, conform to the requirements of ROHS
APPLICATION FOR LED PANEL LIGHT
Instant start, no flickering, no humming. Input voltage 28-36V ~ 1.1A(LED Panel Light with constant current driver), No electric wave, Imported light diffusion material,mercury and lead free.
High lumen output,high efficiency,energy saving up to 60%, Eco-friendly, energy-saving and high luminous efficacy. excellent heat dissipation structure,long lifespan,normal use can reach over 30,000hours.
TUV CE certificated, lead free, eco-friendly, conform to the requirements of ROHS
BASIC PARAMETER
- Item NO.: GLM-ACAB-X
- Dimension: 300mm x 600mm x 8mm
- LED type: 2835SMD
- Material: Aluminium + PMMA
- Output voltage: 28-36V~0.66A
- Working temperature: -10.C~40.C
- Installation method: Embedded.Hanging
- IP rate IP41
- N.W.(±0.1Kg) 1.72Kg
TECHNICAL PARAMETER
- LED Power: 20 Watt
- Q'ty in series and parallel: 10S 9P * 2
- LED Q'ty: 180pcs SMD2835
- Drive Current: 36mA
- Beam Way: Beam at two sides
PHOTOELECTRICITY PARAMETER
- CCT .: 3000K -4000K -6000K
- Flux.(±10%): 1900lm
- Input Power: 24W
- Light Efficiency(±10%): 80lm / Watt
- CRI: Ra>80
- Lux.at 2Meters(±10%): 105lx
- Dimmable: Yes
- Lighting Angle: 120°
- PF: >0.9

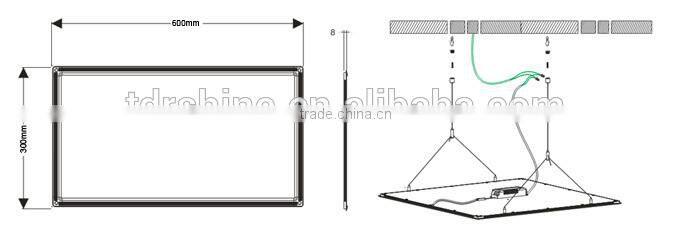

DIMENSIONAL DRAWING
TESTING REPORT
APPLICATION FOR LED PANEL LIGHT
