Home > Lights & Lighting > LED Interior Lighting > LED Panel Light > Small Size Led Panel Series

Small Size Led Panel Series

Name: Small Size Led Panel Series
Brand: Tdrshine
SKU: 109091999
Availability: InStock

US$ 1 - 100 MOQ: 100 Pieces

Key Specifications

Get Latest Price

LED Light Source:

SMD 2835

Warranty(Years):

Input Voltage(V):

AC100~240V

Contact Supplier Request Quote Chat Now

Shenzhen Tdrshine Optoelectronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source SMD 2835

Warranty(Years) 3

Input Voltage(V) AC100~240V

Lamp Power(W) 36

Lamp Luminous Flux(lm) 3800lm

Lamp Luminous Efficiency(lm/w) 80

Color Temperature(CCT) Other, 2900-6500K

Working Temperature(℃) -20, 40

Working Lifetime(Hour) 100000

Lamp Body Material Aluminum

IP Rating IP44

Certification CE, ETL, FCC

Place of Origin China

Brand Name Tdrshine

Model Number GL-PL-D303-PW/NW/WW

Product Description

Features
1.Super bright SMD2835 LED as lighting sources;high efficiency,energy Saving,Eco-friendly;
2.Aluminium alloy frame with high-thermal conductivity, simple and nice;
3.Integrated heat dispersion structure, low lumens depreciation and long lifespan;
4.External constant current driver, universal available;
5.Easy to install.

TECHNICAL PARAMETER :

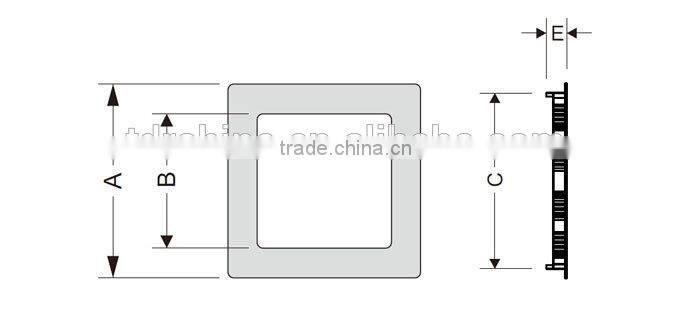

Model	Size(mm)			Holecutting Size(C)	Installation Way	Working Temperature	Light Angle	Lifespan	IP Rate
Model	A	B	C	Holecutting Size(C)	Installation Way	Working Temperature	Light Angle	Lifespan	IP Rate
GLM-CBBE-X	115*115	65*65	18m	¢105mm	Embedded	-20℃~40℃	120°	30,000H	IP21
GLM-CBBA-X	145*145	95*95	18	¢135mm	Embedded	-20℃~40℃	120°	30,000H	IP21
GLM-CCBJ-X	165*165	115*115	18	¢155mm	Embedded	-20℃~40℃	120°	30,000H	IP21
GLM-CBBB-X	180*180	130*130	18	¢170mm	Embedded	-20℃~40℃	120°	30,000H	IP21
GLM-CBBF-X	200*200	150*150	18	¢190mm	Embedded	-20℃~40℃	120°	30,000H	IP21
GLM-CBBC-X	240*240	190*190	18	¢230mm	Embedded	-20℃~40℃	120°	30,000H	IP21

TECHNICAL PARAMETER :

Model	Input Voltage	Power (±5%)	Working Voltage	LED Qty./ Type	CCT	CRI	Luminous Flux	Illuminance at 1m(±5%)	P F
GLM-CBBE-X	100-240VAC	6W	220mA	28pcs/2835	2700-6500K	Ra>80	320Im	98.3Ix	>0.9
GLM-CBBA-X	100-240VAC	9W	340mA	42pcs/2835		Ra>80	550Im	164.4Ix	>0.9
GLM-CCBJ-X	100-240VAC	12W	480mA	56pcs/2835		Ra>80	850Im	251.4Ix	>0.9
GLM-CBBB-X	100-240VAC	12W	480mA	56Pcs/2835		Ra>80	900Im	256.3Ix	>0.9
GLM-CBBF-X	100-240VAC	15W	510mA	72Pcs/2835		Ra>80	1100Im	353.7Ix	>0.9
GLM-CBBC-X	100-240VAC	18W	620mA	80Pcs/2835		Ra>80	1250Im	385.5Ix	>0.9

PHOTOELECTRICITY PARAMETER

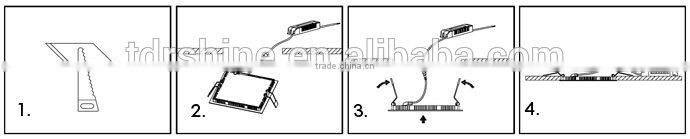

INSTALLATIONDRAWING

1.Cut a hole in the ceiling.
2.Take DC connector to the power supply.
3.Plug the Jump ring and put the panelsinto the hole.
4.Adjust the panels to stick the ceiling tightly.

APPLICATION:

1.Hotels;
2.Meeting rooms;
3. Factories and Offices;
4.Commercial lightings;
5.Residential or public facilities.

HOW TO CHOOSE LUMINOUS EFFICACY OF LED PANEL LIGHT?

Light source: low power SMD LEDs (placed in the edge of the plate)
Quick response when power on , no noise, no UV, no strobe light;
Adpot own-designed LED driver with high power factort;
Low luminous decay, Quick response when power on, long lifespan, no noise, no UV, no strobe light, no pollution;
Conclusion: selection LED panel light should not only consider high luminous angle, but also consider energy-saving and luminous efficacy. According to LED panel light lifespan, luminous efficacy can well reflect LED Pane light whether energy-saving.
If you choose to 3535 SMD LED panel light as light source, emitting 5213lm with only use 60W power which means that our luminous efficacy is 87lm/W. If you choose to 5630 SMD LED panel light as light source, emitting 7041lm with only use 60W power which means that our luminous efficacy is 117.3lm/W.
