Symons Cone Crusher Standard of Extra Coarse Type

Symons Cone Crusher Standard of Extra Coarse Type thumbnail-1
Symons Cone Crusher Standard of Extra Coarse Type photo-1
US$ 1,000 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, cone crusher
Application:
building,construction
Contact Supplier Request Quote Chat Now
Luoyang Zhongde Heavy Industries Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, cone crusher
Application building,construction
Motor Type AC Motor
Power(W) 220000
Capacity(t/h) 299-635
Place of Origin Henan, China
Brand Name ZHONGDE
Model Number PSG-B1626
Dimension(L*W*H) 3941*2954*3771mm
Weight -
Certification ISO,BV,CE,TUV certificate,etc
Warranty one year, one year .
After-sales Service Provided Engineers available to service machinery overseas

Specifications

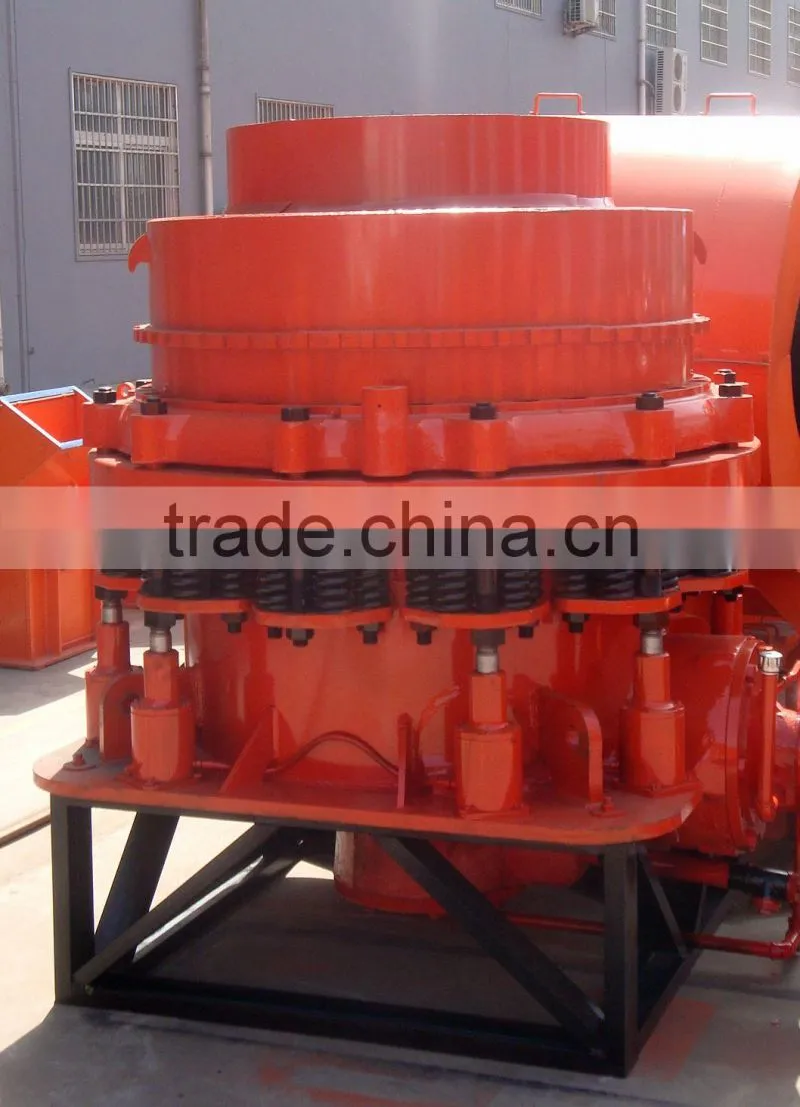

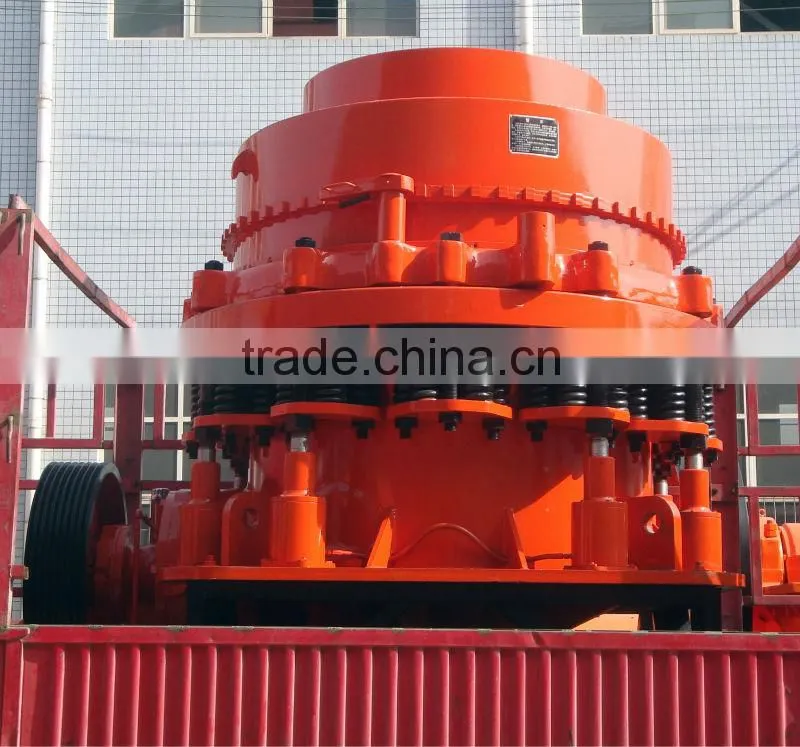

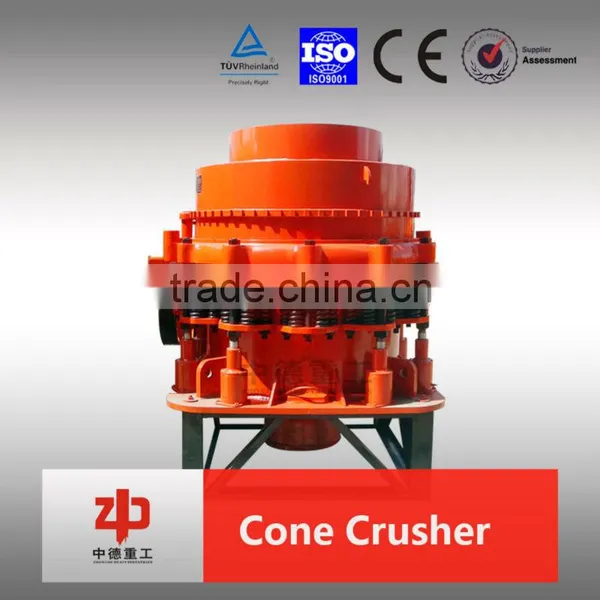

Symons cone crusher
1.Rocks with medium hardness and above
2.Max.feeding size:35-391mm
3.Capacity:299-635t/h

What's Symons Cone Crusher?



Introduction symons cone crusher

1)PSG series cone crusher is the new type product which is researched by absorbing the symons cone crusher technology of Nordberg company.

2)The hydraulic chamber-cleaning system in medium and large sized crushers reduces the machine's stop time. There are many chamber types of each machine and then customers have many choices to meet their demand.

3)This machine adopts the lubrication grease sealing system and avoids the defects of water-supplying and discharging block as well as the easily mixing of water and oil.

4)The spring insurance system is overload protection device; it can make the foreign matter and iron ore go through the crushing chamber and not damage it.



Application of symons cone crusher

1)It's widely used in metallurgy, construction, road building,chemical industries and etc.

2)Besides, it's suitable for crushing many kinds of ores and rocks with medium hardness and above.



Characteristics of symons cone crusher

1)The product is featured by high crushing ratio, high efficiency, large processing capacity, low  operation cost, easy adjustment, etc.

2)It has long life span because of the components material and reasonable structure. The evenly particle size of finished product reduces the circulation load.



Types of symons cone crusher

This machine can be divided into standard type and short head type.

Generally speaking, standard type has big feeding size and coarse discharging size.

The short head type has steep crushing awl and small feeding material size, and it is helpful to produce the very small sized material.

Then the standard type is used for coarse and medium crushing, short head type is used for medium and fine crushing.



Technical parameters symons cone crusher





specifications model cavity large end diameter of crushing cone(mm) adjusting range of discharge opening(mm) feed opening size of the open edge when recommending the min.discharge opening(mm) max.feeding size(mm) processing capacity(m3/h) main motor power(kw) dimensions(mm)
Ø900 PSG-B0910 standard fine type 900 9-22 102 85 45-91 75 2656Χ1636Χ2241
PSG-B0917 standard coarse type 900 13-38 175 150 59-163 75 2656Χ1636Χ2241
PSG-B0918 standard super coarse type 900 25-38 178 150 118-163 75 2656Χ1636Χ2241
PSG-D0904 short head fine type 900 3-13 41 35 27-90 75 2656Χ1636Χ2241
PSG-D0906 short head medium type 900 3-16 61 55 27-100 75 2656Χ1636Χ2241
PSG-D0907 short head coarse type 900 6-19 76 65 59-129 75 2656Χ1636Χ2241
Ø1300 PSG-B1313 standard fine type 1295 13-31 137 115 109-181 160 2983Χ1866Χ3156
PSG-B1321 standard medium type 1295 16-38 210 178 132-253 160 2983Χ1866Χ3156
PSG-B1324 standard coarse type 1295 19-51 241 205 172-349 160 2983Χ1866Χ3156
PSG-B1325 standard super coarse type 1295 25-51 259 220 236-358 160 2983Χ1866Χ3156
PSG-D1306 short head fine type 1295 3-16 64 54 36-163 160 2983Χ1866Χ3156
PSG-D1308 short head medium type 1295 6-16 89 76 82-163 160 2983Χ1866Χ3156
PSG-D1310 short head coarse type 1295 8-25 105 89 109-227 160 2983Χ1866Χ3156
PSG-D1313 short head super coarse type 1295 16-25 133 113 209-236 160 2983Χ1866Χ3156
Ø1600 PSG-B1620 standard fine type 1676 16-38 209 178 181-327 220 3941Χ2954Χ3771
PSG-B1624 standard medium type 1676 22-51 241 205 258-417 220 3941Χ2954Χ3771
PSG-B1626 standard coarse type 1676 25-64 269 228 299-635 220 3941Χ2954Χ3771
PSG-B1636 standard super coarse type 1676 38-64 368 313 431-630 220 3941Χ2954Χ3771
PSG-D1607 short head fine type 1676 5-13 70 60 90-209 220 3941Χ2954Χ3771
PSG-D1608 short head medium type 1676 6-19 89 76 136-281 220 3941Χ2954Χ3771
PSG-D1613 short head coarse type 1676 10-25 133 113 190-336 220 3941Χ2954Χ3771
PSG-D1614 short head super coarse type 1676 13-25 133 113 253-336 220 3941Χ2954Χ3771
Ø2100 PSG-B2127 standard fine type 2134 19-38 278 236 544-1034 400 4613Χ3302Χ4638
PSG-B2133 standard medium type 2134 25-51 334 284 862-1424 400 4613Χ3302Χ4638
PSG-B2136 standard coarse type 2134 31-64 369 314 1125-1814 400 4613Χ3302Χ4638
PSG-B2146 standard super coarse type 2134 38-64 460 391 1252-1941 400 4613Χ3302Χ4638
PSG-D2110 short head fine type 2134 5-16 105 89 218-463 400 4613Χ3302Χ4638
PSG-D2113 short head medium type 2134 10-19 133 113 404-580 400 4613Χ3302Χ4638
PSG-D2117 short head coarse type 2134 13-25 178 151 517-680 400 4613Χ3302Χ4638
PSG-D2120 short head super coarse type 2134 16-25 203 172 580-744 400 4613Χ3302Χ4638

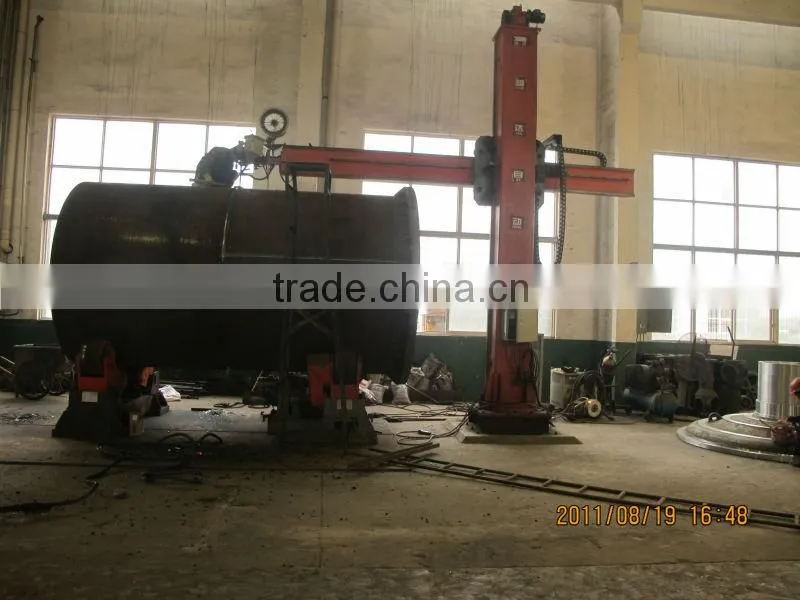

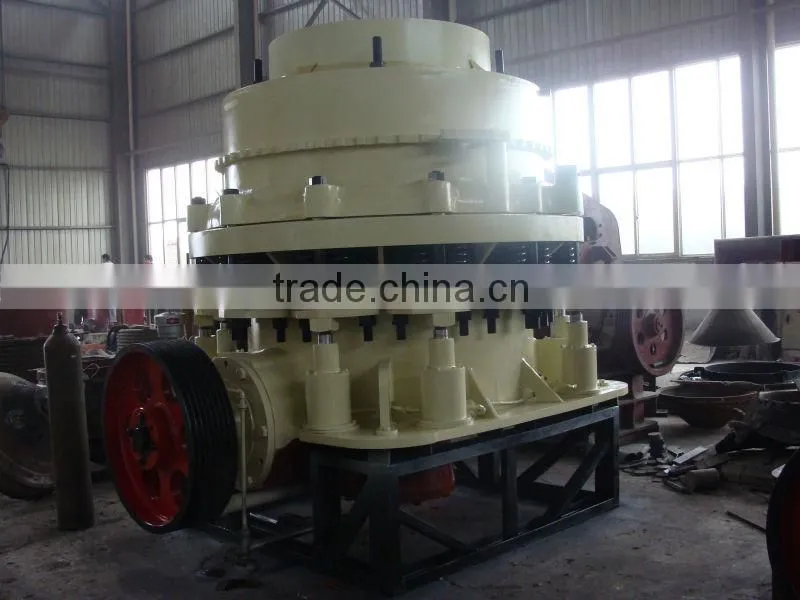

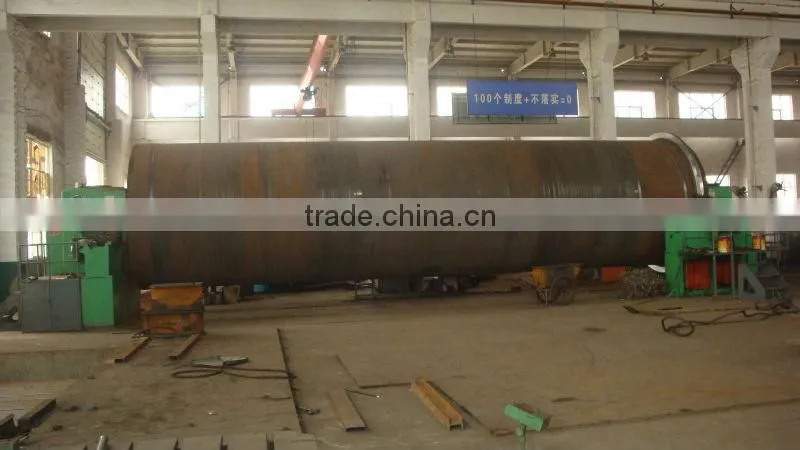

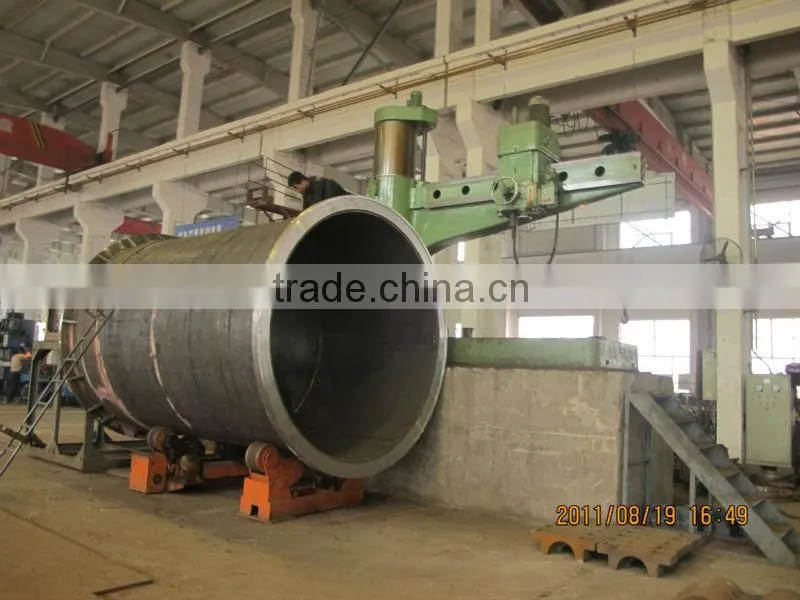

Manufacturing pictures of symons cone crusher



Our services about symons cone crusher

a. Installation and adjustment: Should the installation service is needed, technicist will be provided by supplier for buyer to assist the work such as welding connection of shell body.


b. Quality Guarantee: Three-guarantees of product and warranty period is one year.


c. Technical support is provided from the beginning to the end.


d. Spare parts are serviced for sale in the whole year



Company Introduction

    Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959. Over the past fifty years, it has made significant contribution to the economic development in China. In 1995, it took the lead in changing into the joint stock company, which brought rapid development to the company .In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park.

Superiority of Zhongde

  • World's leading service capability
  • The best device management and practice guidances
  • Fast, easy and convenient routine maintenance can reduce the downtime
  • World's most advanced technology can customize high quality equipment for you
