Specifications
1.simple structure,stable working2.high efficiency&capcacity,low maintainance
3.evenly discharging size
a. Installation and adjustment: Should the installation service is needed, technicist will be provided by supplier for buyer to assist the work such as welding connection of shell body, equipment installation, adjustment, training, etc.
b. Quality Guarantee: Three-guarantees of product and warranty period is one year.
c. Technical support is provided from the beginning to the end.
d. Spare parts are serviced for sale in the whole year.
How about the quality of your products?
1.Our products are manufactured strictly according to national and international standard.
2.We take a test on every grinder before delivery
How about price?
1.We can give the lowest price than market one.
2.We do quotation as soon as possible for any custome.
3.Discount can be given according to quantity.
How about the after-sale service of your company?
1.Our engineer is aviliable to installation overseas.
2.The guarantee period of our products is one year.
Working Principle of Jaw Crusher:
A Jaw Crusher is one of the main types of primary crushers in a mine or ore processing plant. The size of a jaw crusher is designated by the rectangular or square opening at the top of the jaws (feed opening). For instance, a 24 x 36 jaw crusher has a opening of 24" by 36", a 56 x 56 jaw crusher has a opening of 56" square. Primary jaw crushers are typically of the square opening design, and secondary jaw crushers are of the rectangular opening design. However, there are many exceptions to this general rule.
Jaw Crusher Structure:
1) Frame
2) Jaw plate and side guard plate
3) Transmission part: eccentric shaft
4) Adjustment device
5) Flywheel
6) Lubrication device
Features of Jaw Crusher:
1) high crushing ratio and equal product granularity;
2) simple structure and reliable working condition;
3) convenient maintenance and economical operation.
Application of Jaw Crusher:
1) They are widely used in the works of mine, smelting, building materials, road, railway, irrigation, chemical industry, etc.
2) The crusher is applicable for the rough and medium crushing of rocks and ores with a compressive strength less than 320MPA. It is the preferred equipment of primary crushing.
Jaw crusher specification & technical parameters:
| Model | feed opening size(mm) | Max. feeding size(mm) | Adjusting range of discharge opening(mm) | Processing capacity(t/h) | Rotation speed of eccentric shaft(r/min) | Motor power(kw) |
Dimensions(L×W×H) (mm) |
| PE-400×600 | 400×600 | 340 | 40-100 | 16-60 | 275 | 30 | 1730×1730×1630 |
PE-500×750 |
500×750 | 425 | 50-100 | 40-110 | 275 | 55 | 1980×2080×1870 |
| PE-600×750 | 600×750 | 500 | 150-200 | 80-240 | 275 | 55 | 2070×2000×1920 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 110 | 2660×2430×2800 |
| PE-800×1060 | 800×1060 | 640 | 130-190 | 130-330 | 250 | 110 | 2710×2430×2800 |
| PE-870×1060 | 870×1060 | 660 | 200-260 | 190-336 | 250 | 110 | 2810×2430×2800 |
| PE-900×1200 | 900×1200 | 75 | 95-165 | 220-450 | 200 | 110 | 3380×2870×3330 |
| PE-1000×1200 | 1000×1200 | 85 | 195-265 | 315-500 | 200 | 110 | 3480×2876×3330 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-350 | 400-800 | 180 | 160-220 | 4200×3300×3500 |
| PE-1500×1800 | 1500×1800 | 1200 | 220-350 | 500-1000 | 180 | 280-355 | 5160×3660×4248 |
| PE- 1600×2100 | 1600×2100 | 1500 | 300-400 | 1300-2200 | 160 | 350-380 | 6210×4013×4716 |

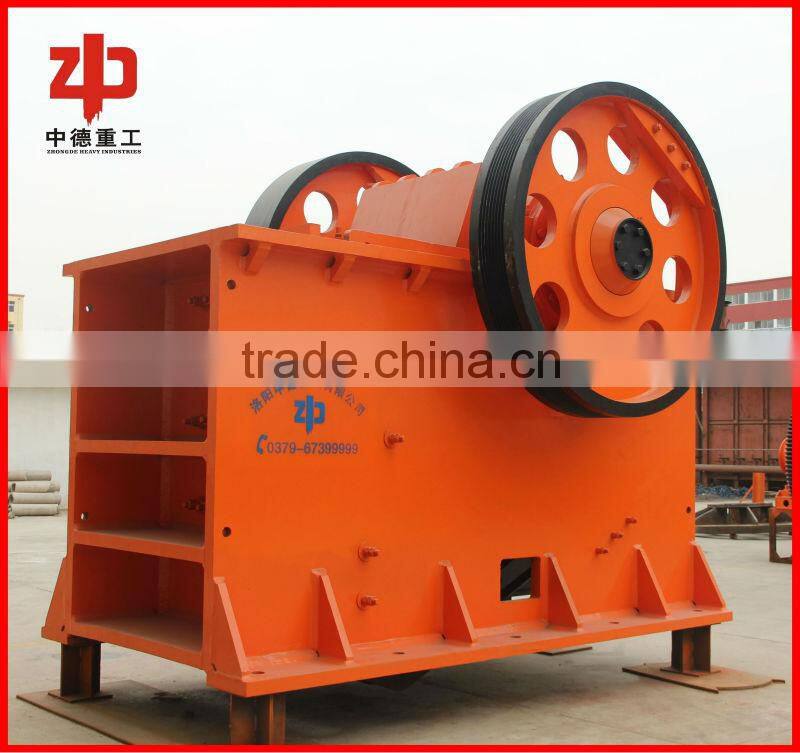

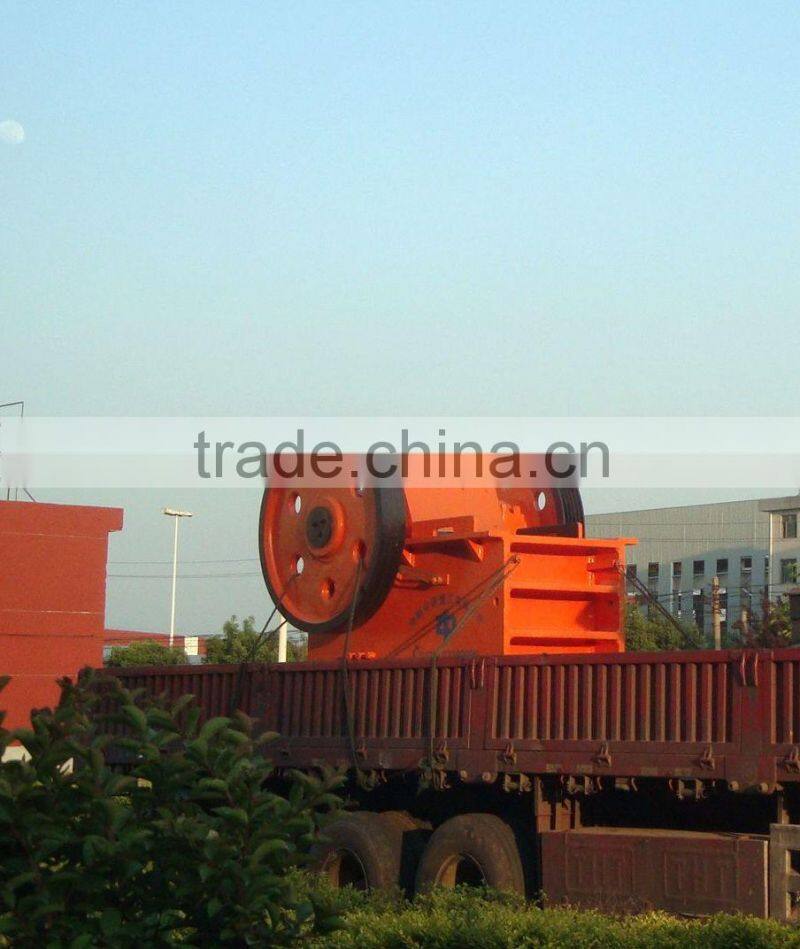

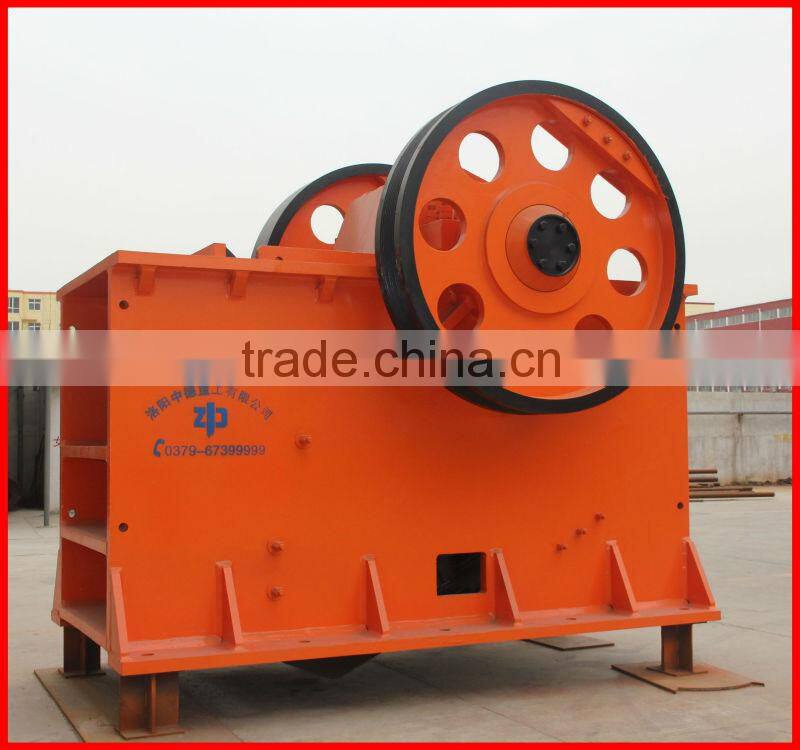

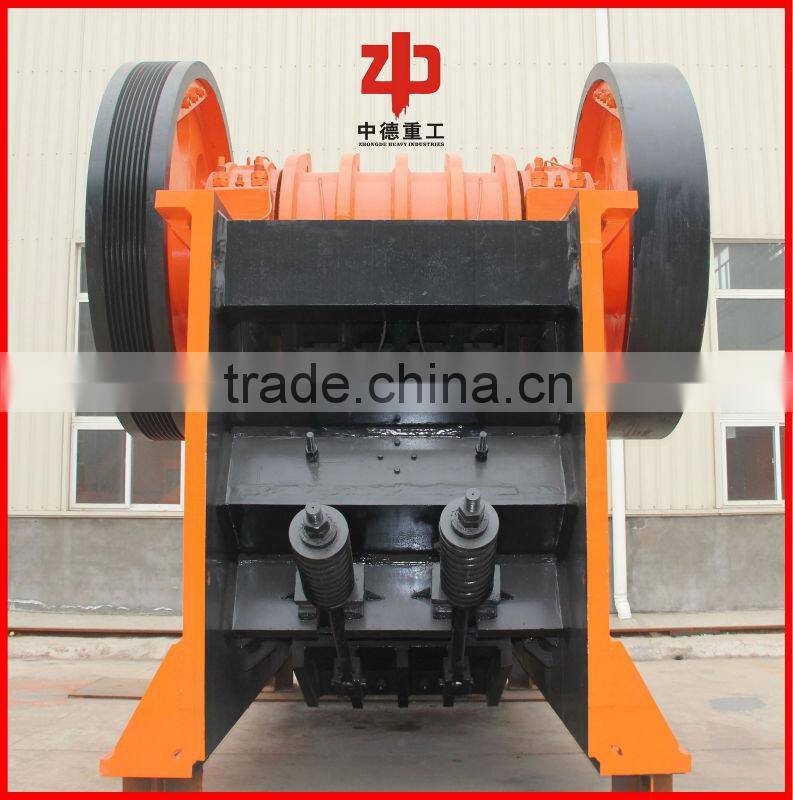

Pictures of jaw crusher

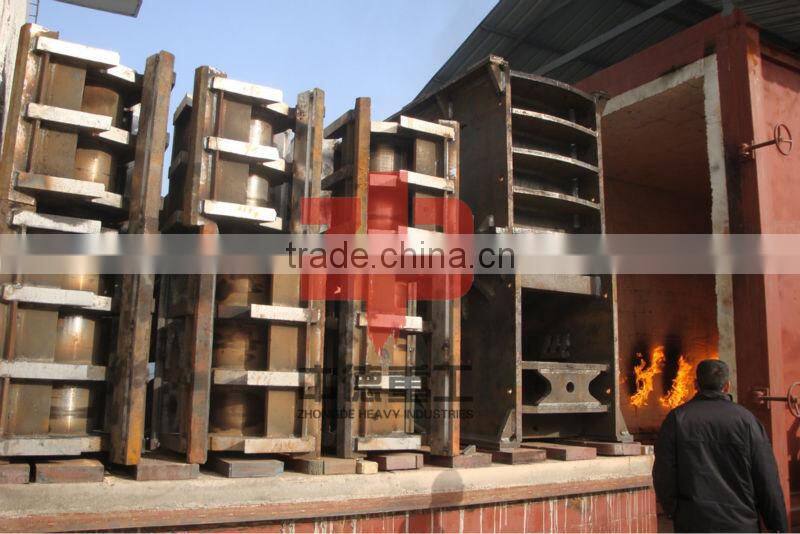

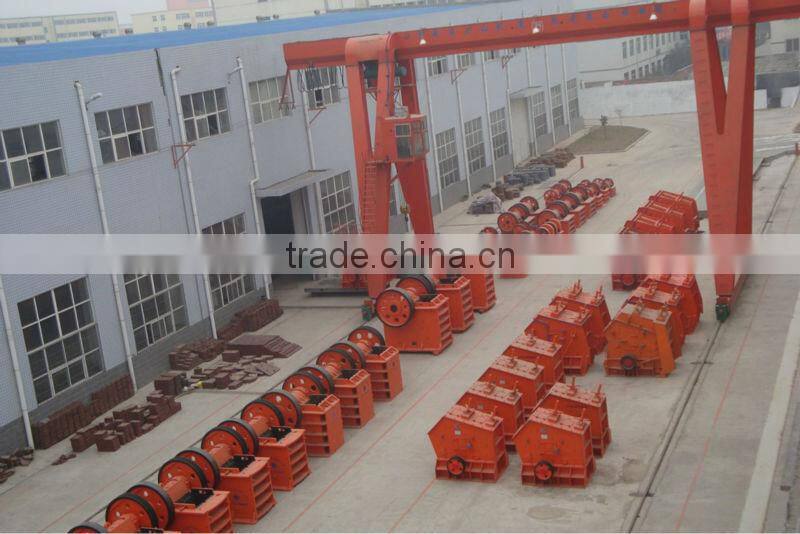

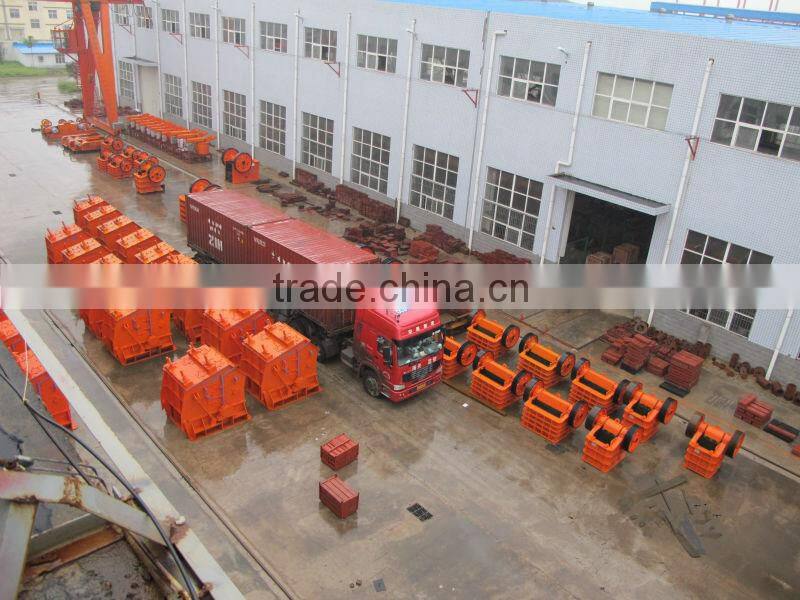

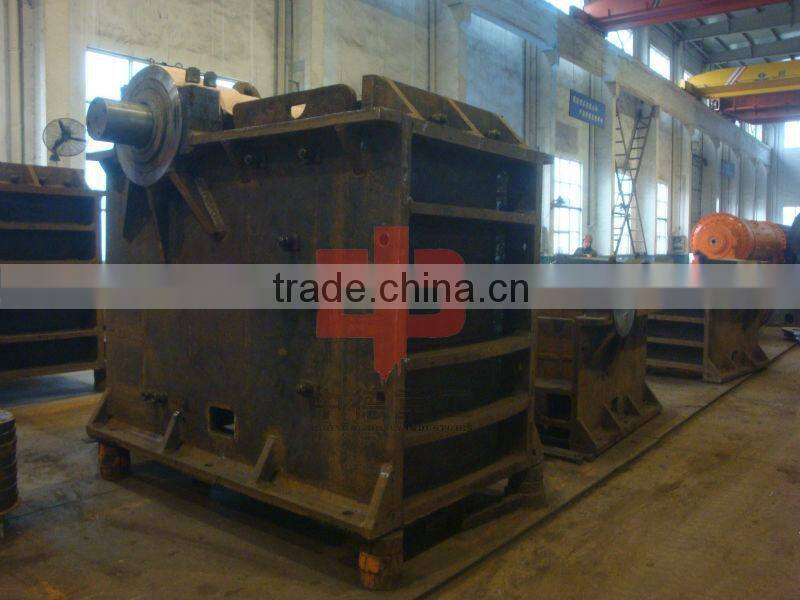

Jaw crusher manufacturing process
