Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Crusher > Henan Manufacturer Produced Small Jaw Crusher for Sale

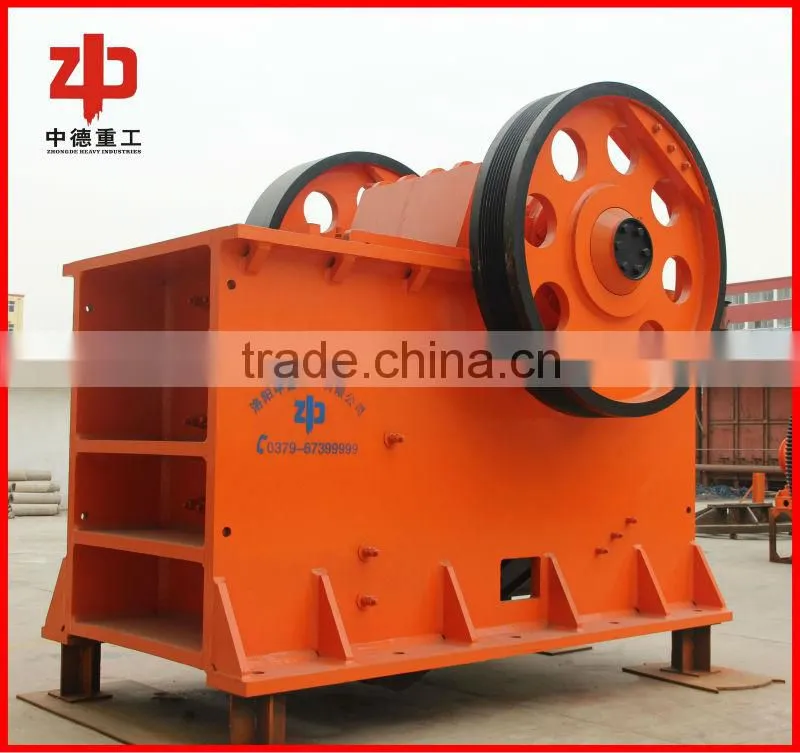

Henan Manufacturer Produced Small Jaw Crusher for Sale
US$ 27,500 - 29,666
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Jaw Crusher
Application:
mine/building materials/road/chemical industry etc.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Limestone Jaw Crusher With Superior QualityUS$ 1,000 - 9,999MOQ: 1 Set -
PE Series High Capacity Jaw Stone Crusher /Jaw Crusher For MiningUS$ 1,000 - 9,999MOQ: 1 Set
-
Jaw Crusher With High Capacity and Competitive Price BY ZHONGDEUS$ 1,000 - 9,999MOQ: 1 Set
-
Jaw Crusher Machine by China SupplierUS$ 1,000 - 9,999MOQ: 1 Set
-
Professional, Best Sell Jaw Crusher to Crush Almost All the Stone, Rock, Ore Etc. BY ZHONGDEUS$ 1,000 - 9,999MOQ: 1 Set
Condition
New
Type
Jaw Crusher
Application
mine/building materials/road/chemical industry etc.
Motor Type
AC Motor
Power(W)
7500
Capacity(t/h)
2-6
Place of Origin
Henan, China
Brand Name
ZHONGDE
Model Number
PE-200*300 jaw crusher
Dimension(L*W*H)
910*750*990mm
Weight
negotiable
Certification
CE,ISO,TUV certificates etc.
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Customized jaw crusher2.50 year experience
3.Max feeding size 125~1500 mm
4.Production capacity 1~2200 t/h
5.CE, ISO
Product Description
Application of Jaw crusher:

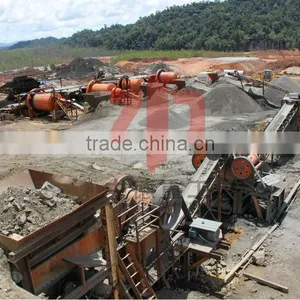

- Jaw crusher is used in the works of mine, smelting, building materials, road, railway, irrigation, chemical industry, etc.
- The crusher is applicable for the rough and medium crushing of rocks and ores with a compressive strength less than 320MPA.
Characteristics od jaw crusher:
- Jaw crusher has high crushing ratio and equal product granularity;
- Jaw crusher has simple structure and reliable working condition;
- Jaw crusher has convenient maintenance and economical operation.
Working Principle of Jaw Crusher:
A Jaw Crusher is one of the main types of primary crushers in a mine or ore processing plant. The size of a jaw crusher is designated by the rectangular or square opening at the top of the jaws (feed opening). For instance, a 24 x 36 jaw crusher has a opening of 24" by 36", a 56 x 56 jaw crusher has a opening of 56" square. Primary jaw crushers are typically of the square opening design, and secondary jaw crushers are of the rectangular opening design. However, there are many exceptions to this general rule.
Jaw Crusher Structure:
- Frame;
- Jaw plate and side guard plate;
- Transmission part: eccentric shaft;
- Adjustment device;
- Flywheel;
- Lubrication device.
Technical parameters of Jaw Crusher:
| Model | feed opening size(mm) | Max. feeding size(mm) | Adjusting range of discharge opening(mm) | Processing capacity(t/h) | Rotation speed of eccentric shaft(r/min) | Motor power(kw) |
Dimensions(L×W×H) (mm) |
| PE-400×600 | 400×600 | 340 | 40-100 | 16-60 | 275 | 30 | 1730×1730×1630 |
PE-500×750 |
500×750 | 425 | 50-100 | 40-110 | 275 | 55 | 1980×2080×1870 |
| PE-600×750 | 600×750 | 500 | 150-200 | 80-240 | 275 | 55 | 2070×2000×1920 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 110 | 2660×2430×2800 |
| PE-800×1060 | 800×1060 | 640 | 130-190 | 130-330 | 250 | 110 | 2710×2430×2800 |
| PE-870×1060 | 870×1060 | 660 | 200-260 | 190-336 | 250 | 110 | 2810×2430×2800 |
| PE-900×1200 | 900×1200 | 75 | 95-165 | 220-450 | 200 | 110 | 3380×2870×3330 |
| PE-1000×1200 | 1000×1200 | 85 | 195-265 | 315-500 | 200 | 110 | 3480×2876×3330 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-350 | 400-800 | 180 | 160-220 | 4200×3300×3500 |
| PE-1500×1800 | 1500×1800 | 1200 | 220-350 | 500-1000 | 180 | 280-355 | 5160×3660×4248 |
| PE- 1600×2100 | 1600×2100 | 1500 | 300-400 | 1300-2200 | 160 | 350-380 | 6210×4013×4716 |

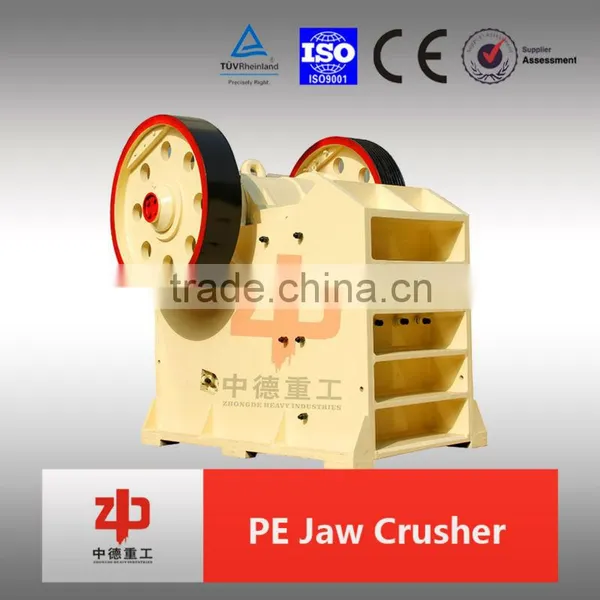

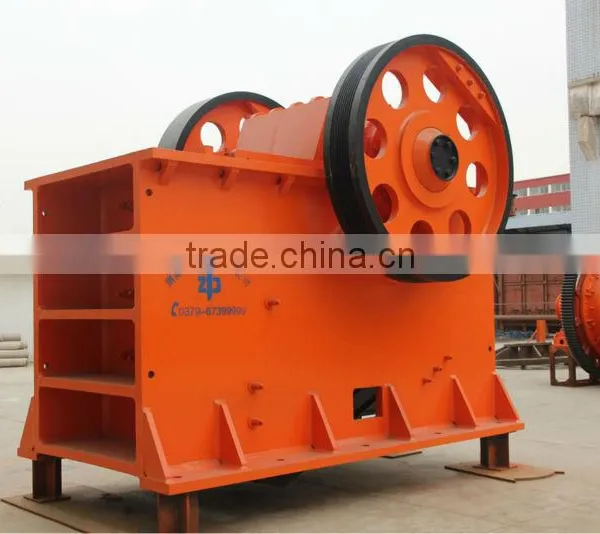

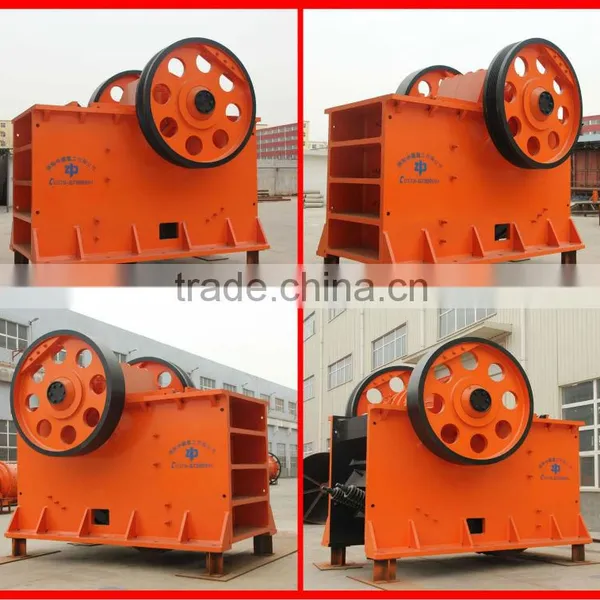

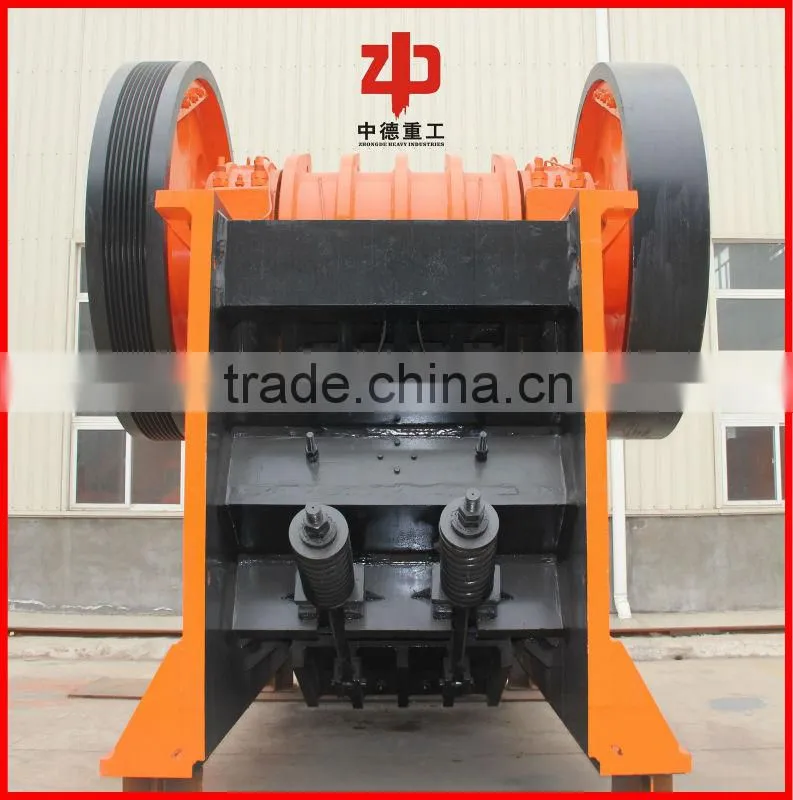

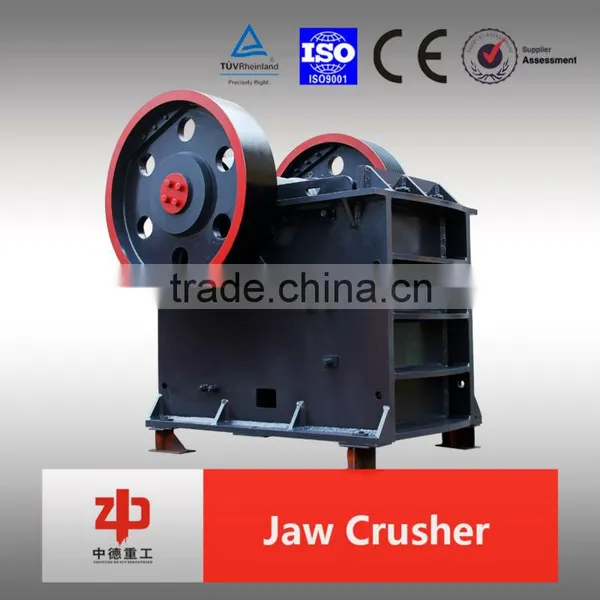

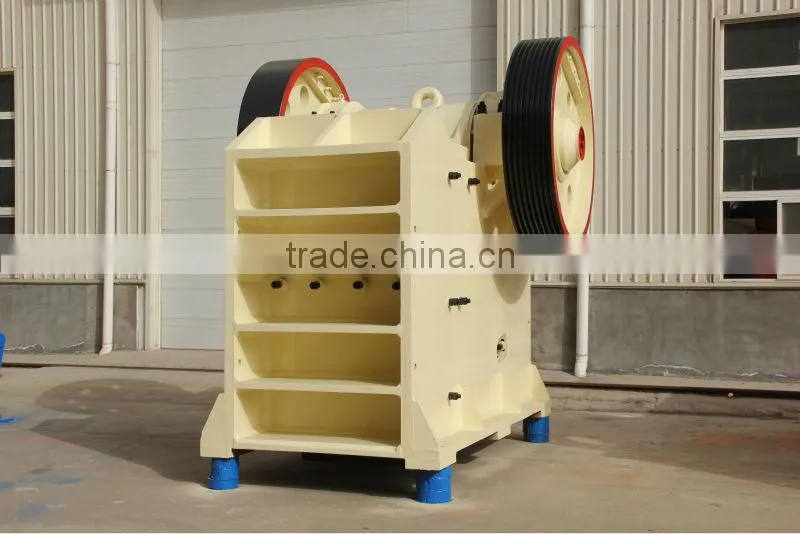

Pictures of jaw crusher:

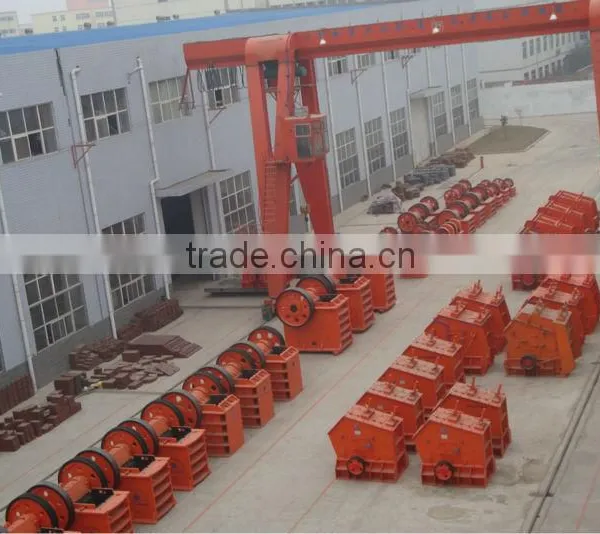

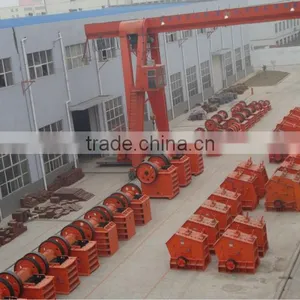

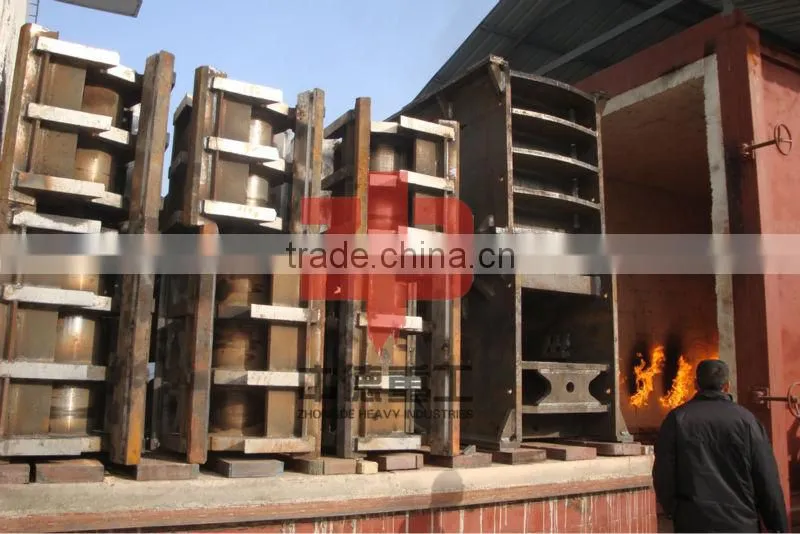

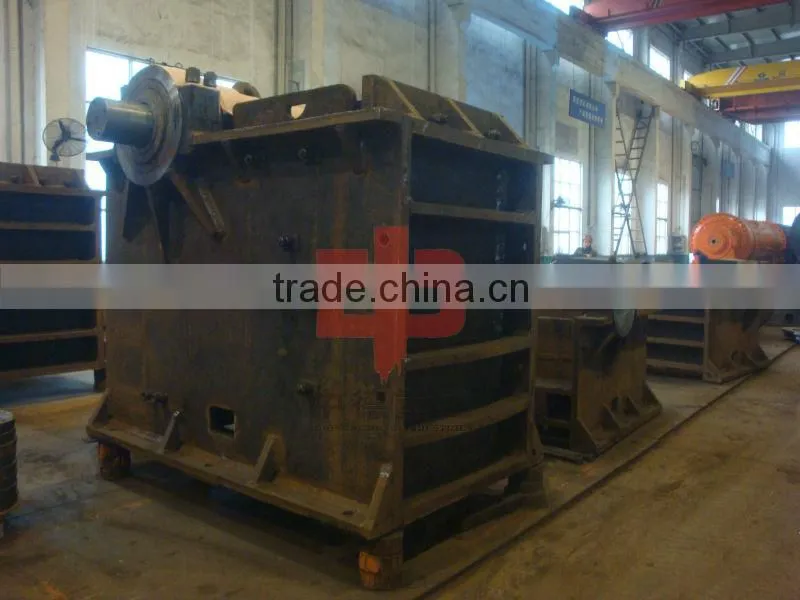

Jaw crusher manufacturing process:
Packaging & Shipping

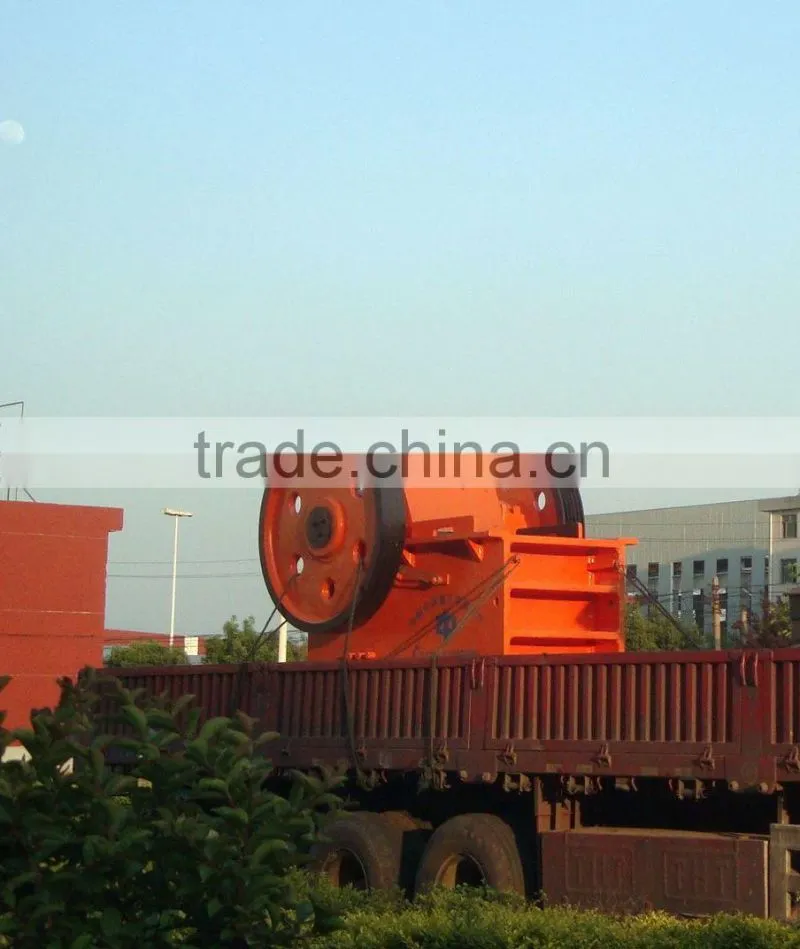

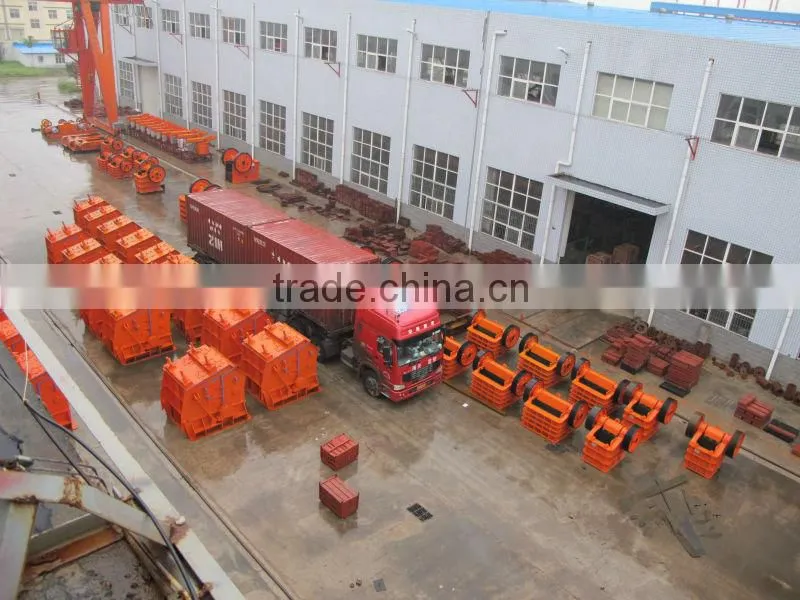

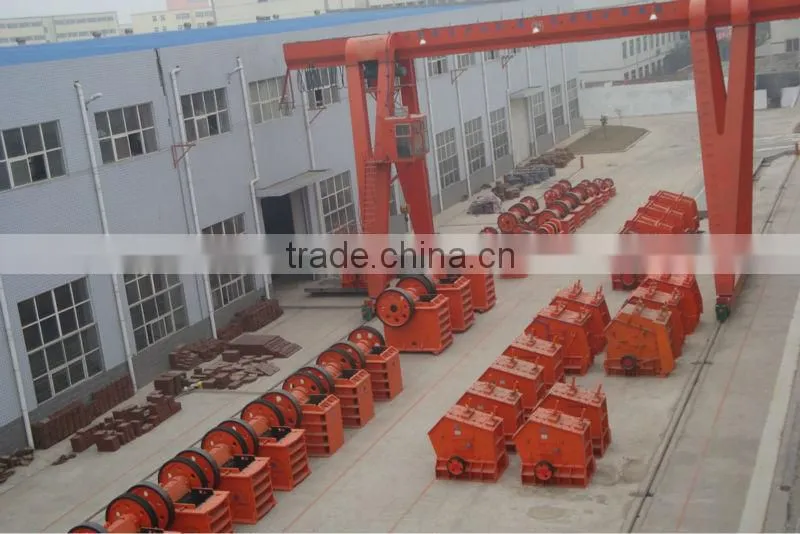

Jaw crusher shipment:
Our Services
Our Services of Jaw crusher:
- Installation and adjustment of Jaw Crusher: The installation of our Jaw Crusher is needed. Technicist of Jaw crusher will provided by supplier for buyer to assist the work such as weding connection of shell body, equipment installation, adjustment, training, etc.
- Quality Guarantee of Jaw Crusher: Three-guarantees of Jaw Crusher and warrantly period is one year.
- Technical support of Jaw Crusher is provided from the beginning to the end.
- Spare parts of Jaw crusher are serviced for sale in the whole year.
Company Information
- Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959.
- Over the past fifty years, it has made significant contribution to the economic development in China.
- In 1995, it took the lead in changing into the joint stock company, which brought rapid development to the company .
- In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park.
FAQ
How about the quality of your Jaw crusher?
- Our Jaw crusher manufactured strictly according to national and international standard.
- We take a test on every Jaw crusher before delivery.
How about price of jaw ceusher?
- We can give the lowest price of the Jaw crusher than market one.
- We do quotation of Jaw crusher as soon as possible for any custome.
- Discount of Jaw Crusher can be given according to quantity.
How about the after-sale service of your company?
- Our engineer is aviliable to installation overseas.
- The guarantee period of our products is one year.
