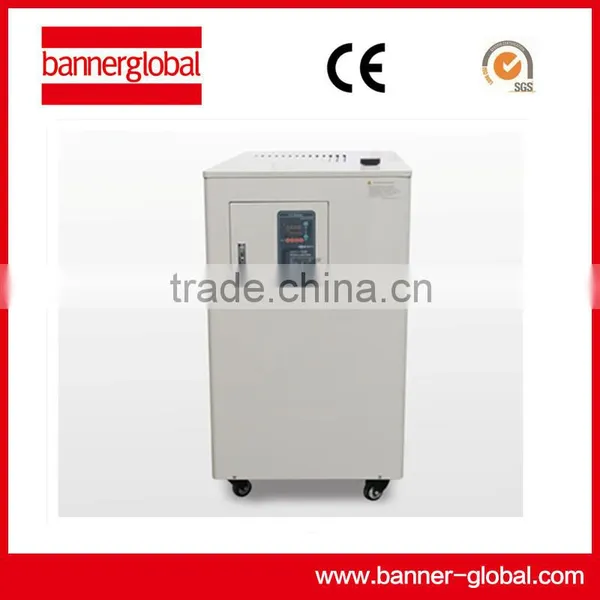

LT Series Low-tempetature Refrigeration Capacity Recyclable Coolers
US$ 1,000 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
Brand
Type:
Water-Cooled
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Promotion: Polymer Universal 100kg Tensile Testing Machine PriceUS$ 5,000 - 10,000MOQ: 1 Set -
Model 320 EPost Tire-coupled Road SimulatorNegotiableMOQ: 1 Set
-
MTS 3.0 Meter Biaxial Seismic SimulatorNegotiableMOQ: 1 Set
-
2015 New Premium GWT2304 Material High Temperature Creep Testing MachineNegotiableMOQ: 1 Set
-
DL-6M/DL-6MC Blood Bank Refrigerated CentrifugeUS$ 1,000 - 5,000MOQ: 1 Set
Condition
Brand
Type
Water-Cooled
Place of Origin
China
Brand Name
BANNERGLOBAL
Model Number
LT-20-80
Cooling Capability(kw)
4.9kw
Voltage
380V±10% 50HZ
Dimension(L*W*H)
1100Lx710Wx1200H
Weight
260
Certification
CE
Warranty
1 Year
After-sales Service Provided
Overseas third-party support available
LT Series Low-tempetature Refrigeration Capacity Recyclable Coolers
The Introduction

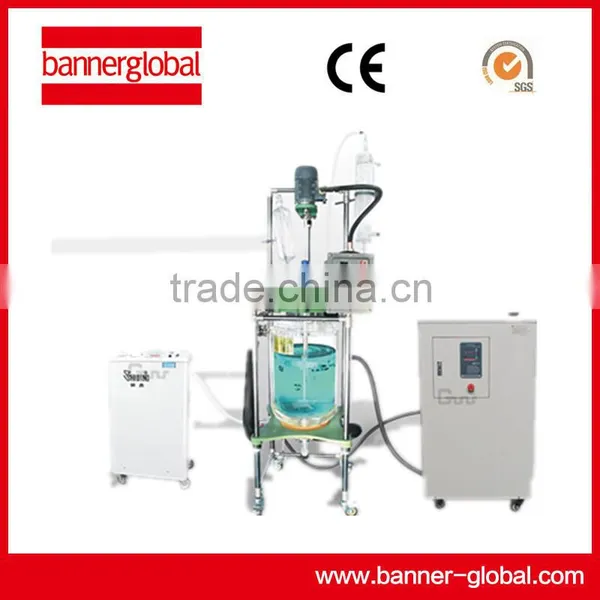

It is mainly supply cryogenic cooling liquid for the user, which can meet the need to maintain working under low temperature conditions of low temperature reaction; With 50 , 100 , 20 , such as the reactionkettle, can be in the reaction kettle materials cooled to - 70 ℃,- 80 ℃, - 100 ℃.
The Characteristics
1,The whole machine adopts microcomputer control, digital display in Chinese, easy to operate, safe, reliable; temperature display adopts high brightness LED, and also has the high and low voltage protection, hydraulic protection, leakage protection, overload protection, overheating protection function;
2,Environmental protection cfc-free refrigerants suit for international environment refrigerating national standards;
3,The compressor, oil separator, solenoid valve, expansion valve, such as adopt imported brand product, to ensure the stability of the refrigeration system;
4, Evaporator is full welded plate heat exchanger, which is small volume, high in thermal efficiency;
5,Circulating pump for low temperature resistant special circulation pump, no leakage, no holding shaft under different temperature conditions.
6, Closed circulating system can avoid refrigerating medium evaporation and pollution, save energy.
7, Bath and circulating system adopts stainless steel SUS304, which can prevent corrosion.
8, The machine is stable and reliable ,which can meet more than 24 h of continuous production process of cold source of demand.
9, Air-cooled design can save the water resources.
10, The casing adopts SPCC, antiseptic property better.
Technical Data
Model |
LT-20-80 |
LT-50-80 |
LT-100-80 |
LT-100-110 |
|
Temperature Range (℃) |
-80 ~-40 |
-80 ~-40 |
-80 ~-40 |
-110~-60 |
|
Temperature stability(℃) |
±2 |
±2 |
±2 |
±2 |
|
Ambient temperature(℃) |
5~25 |
5~25 |
5~25 |
5~25 |
|
Power supply(V/Hz) |
380V±10% 50HZ |
||||
Overall power(kW) |
4.9 |
9.8 |
19.3 |
38 |
|
Refrigerating medium |
R404A/R23 |
R404A/R23/R14 |
|||
Calling capacity(w) |
-40(℃) |
2000 |
5000 |
10000 |
- |
-60(℃) |
1400 |
3000 |
6000 |
- |
|
-80(℃) |
450 |
1000 |
2500 |
5500 |
|
-90(℃) |
-- |
- |
- |
3700 |
|
-100(℃) |
-- |
- |
- |
2500 |
|
Pump |
Power(W) |
280 |
2800 |
||
Flow(L/min) |
30 |
50 |
|||
Press(bar) |
1.0 |
3.0 |
|||
Bath volume(L) |
10 |
24 |
100 |
||
Dimensions(mm) |
1100Lx710Wx1200H |
1200Lx710Wx1280H |
1460Lx951Wx1336H |
2950Lx1500Wx2385H |
|
Weight(kg) |
260 |
350 |
600 |
1500 |
|
