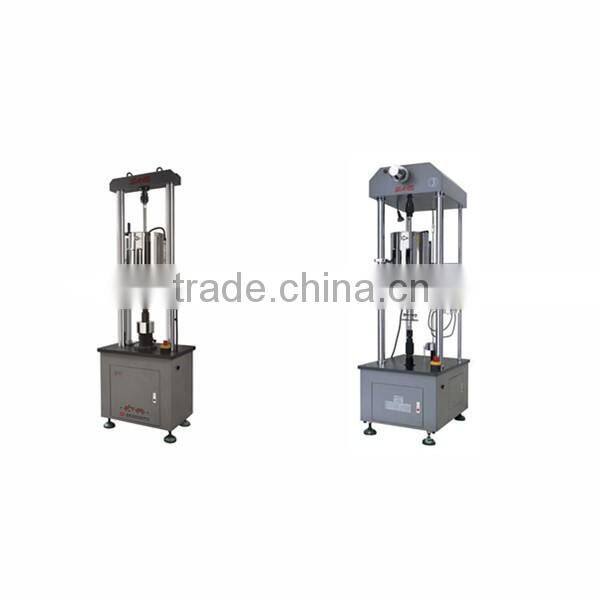

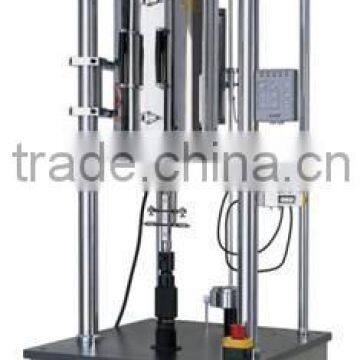

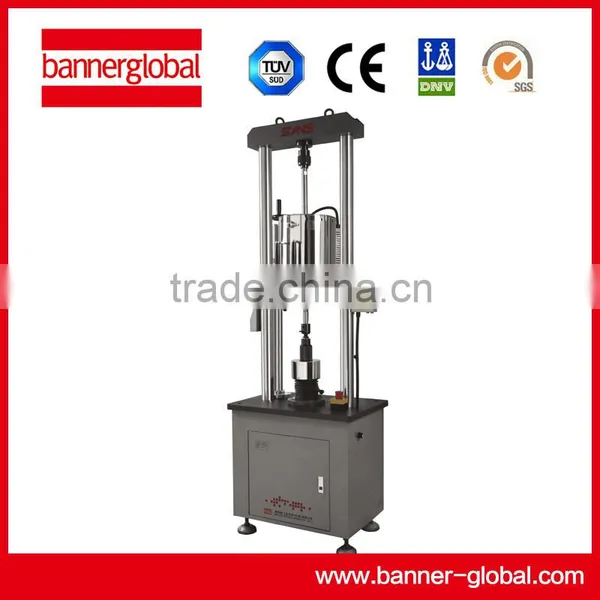

2015 new premium GWT2304 material high temperature creep testing machine
2015 new premium GWT2304 material high temperature creep testing machine is used to test the durability of creep deformation strength of materials. It can perform many standard creeping tests on materials, components and structures. The functional components of which include host frame, high temperature furnace, high temperature corsshead, load cell, means of measuring creep deformation force, output device, and test fixtures.
The set-up and usage are detailed in a test method which specifies the sample preparation, fixturing, gauge length, analysis, etc.. The specimen is placed in the tester between the grips and an extensometer if required can automatically record the change in gauge length during the test. Once the equipment is started it begins to apply an increasing load on specimen. Troughout the tests the control system and its associated software record the load and torsion of the sample.
These systems range from 30KN to ones with 100KN capacity.
Specification models:
GWT2304, GWT2504,GWT2105
Capacity:
30KN, 50KN, 100KN
Original configuration:
a tensile clamp (for thread bar specimens with 10 (M16); using the temperature of 300-1000°C);
creep extension mechanism of 1set (for thread bar specimens with 10 (M16); using the temperature of 300-1000°C)
Scalable configuration:
A tensile clamp (for thread bar specimens with 5 (M12); using the temperature of 300-1000°C);
a set of drawing fixture (used for plate sample of 1 ~ 3mm; using temperature 300-1000°C);
creep extension mechanism of 1set (for thread bar specimens with 5 (M12); using the temperature of 300-1000°C)
creep extension mechanism of 1set (for delta plate specimen of 1 ~ 3mm; use the temperature of 300-1000°C)
Function:
measuring the creep properties and durability performance of various metals and alloys under certain temperature and constant tensile load
Application:
measurement and quality control, metallurgical steel, mechanical manufacturing, civil aviation, universities, scientific research institute, commodity inspection and arbitration, technical supervision departments, construction materials, ceramics factory, petrochemical industry, etc.
Meet standards:
Q/SANS 006-2004 lever type high temperature creep, endurance testing machine
JJG 276-88 high temperature creep, endurance strength test machine
JJG 276-2009 high temperature creep endurance testing machine inspection regulations
GB/T 2039-1997 metal tensile creep and lasting test method
GB/T 9373-1999 tensile creep testing machine specification
HB 5151-1996 metal high temperature tensile creep test method
HB 5150-1996 metal high temperature tensile test method
Main features:
1: communication network connection using 485 bus mode, with communication distance, high reliability, strong anti-interference ability.
2:GWT2 series servo motor loading, avoid mechanical loading Farmar complex problems. Electrical control for the DSP platform DCS300 full digital control system based on force control, or displacement control loading, high precision, accurate force value.
3: the use of the full digital AC servo motor with high accuracy and high response frequency, with the characteristics of high frequency response, high positioning accuracy.
4: the sensor adopts imported sensors, high precision, good reliability, high stability.
5: the lower clamp uses the synchronous tooth shaped belt and the ball screw drive, the transmission system efficiency is high, the precision is high, the transmission is stable, the maintenance is less.
6: creep deformation measurement system using imported Heidenhain grating ruler, good linearity, high resolution, strong anti-interference ability, long-term stability.
7: with the current unique local display adjustment function, which greatly facilitates the operation of the coaxial degree of the creep test, can greatly reduce the labor intensity of the test. Convenient operation of the host.
8: with a manual plus, unloading and adjustment function, the power to effectively protect the machine, especially the load sensor.
9: with perfect security measures, soft and hardware with automatic stop protection function, the test force exceeds 10% of the maximum test force of the machine.
10: high temperature furnace adopts the most advanced all fiber vacuum pressing furnace, which has the characteristics of energy saving, beautiful, long service life and easy installation and maintenance. The whole system adopts centralized temperature control system. The whole system adopts artificial intelligence control, and the computer and equipment are integrated into a whole, which has the advantages of high temperature control accuracy, stable and reliable performance.
11: the high temperature and the extension rod guide rod is made of high temperature alloy manufacture, high temperature resistance, high precision, long service life etc.. Creep measuring system adopts the extension guide rod leads to measurement of furnace.
12: the software system adopts the Powertest creep test software, which can control many test machines. The software mainly has the following main functions: receiving input initial instruction, setting up the test parameters, monitoring temperature change and warning; collecting test data, drawing test curve, recording and saving data automatically.
Technical parameters:
Model number |
GWT2304 |
GWT2504 |
GWT2105 |
|
Host parameter |
Maximum test force |
30kN |
50kN |
100kN |
|
Test machine level |
0.5 |
||
|
Test force measurement range |
0.4%~100%FS |
||
|
Relative error of test force |
≤0.5% |
||
|
Test force resolution |
Maximum test force 1/300000(Full resolution) |
||
|
Under the eccentric chuck |
≤10% |
||
|
Maximum loading rate |
2500N/s |
3000N/s |
4000N/s |
|
Tie rod movement speed |
0.05~100mm/min |
||
|
Servo motor power |
750W |
850W |
2Kw |
|
Tie rod stroke |
200mm |
||
|
Power Supply |
220V±10% |
380V±10% |
|
|
High temperature furnace |
High temperature furnace |
Three stage to open air furnace |
||
|
Operating temperature range |
300~1100℃ |
||
|
Temperature zone length |
150mm |
||
|
Furnace dimensions |
φ110×350mm |
||
|
Dimensions |
φ310×450mm |
||
|
Heating power |
3Kw |
||
|
Power Supply |
380V±10% |
||
|
Temperature fluctuation |
300~600℃ |
±2℃ |
|
|
|
600~900℃ |
±3℃ |
|
|
|
900~1100℃ |
±4℃ |
|
|
Temperature gradient |
300~600℃ |
2℃ |
|
|
|
600~900℃ |
3℃ |
|
|
|
900~1100℃ |
4℃ |
|
|
The highest temperature extension board |
1000℃ |
||
|
Deformation measurement range |
0~10mm |
||
|
Deformation indication error |
≤0.5%FS |
||
|
Deformation resolution |
0.001mm |
||

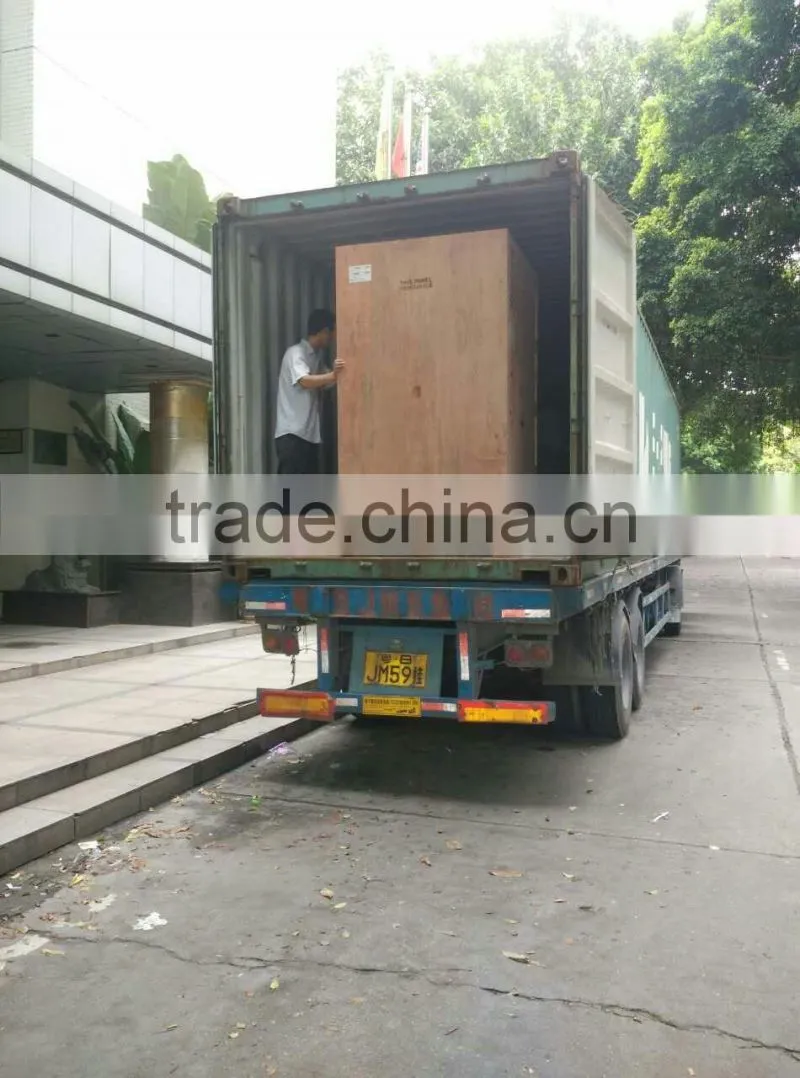

Packaging details:
Standard export wooden case with fumigation.
