Home > Products > Pump and Accessories > High Performance Dispensing Peristaltic Pump
High Performance Dispensing Peristaltic Pump
Negotiable
/ Set
1 Set(Min. Order)
- Tianjin & Shanghai & Shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | Longer | |
| Model Number | BT300-1F | Theory | Other, Peristaltic Pump | |
| Structure | Other, Peristaltic Dosing Pump | Usage | Other, Peristaltic Dosing Pump | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, Electric | Pressure | Other, Low Flow Rate | |
| Application | Other, Peristaltic Dosing Pump |
Product Description

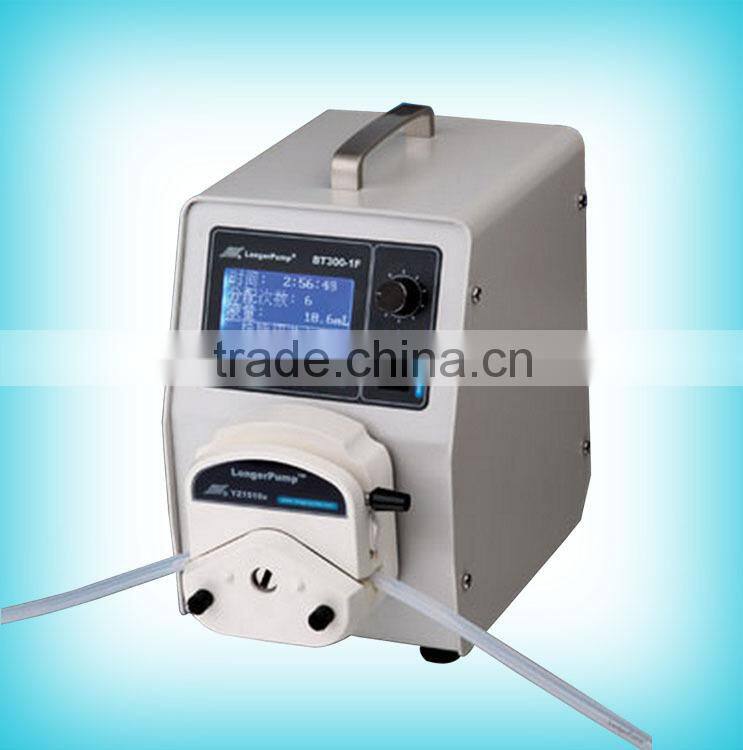

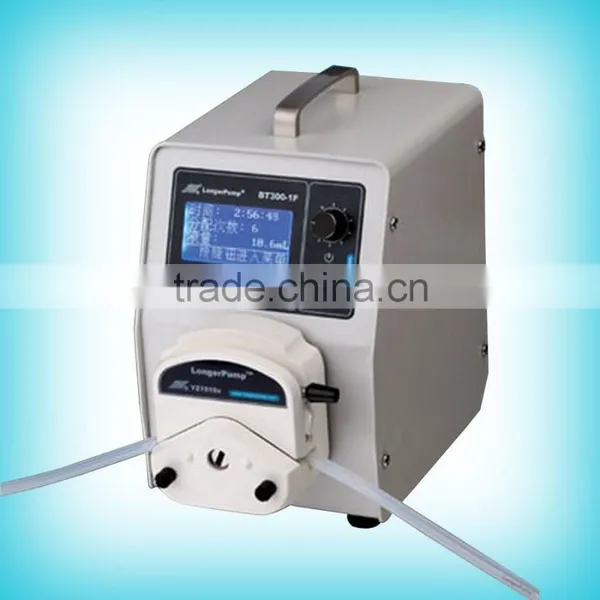

High Performance Dispensing Peristaltic Pump
Product Description
Dispensing Peristaltic Pump BT300-1F can be loaded YZ1515X, YZ2515X, YZII15, YZII25. The pump delivers flow rates from 0.07 to 1140 mL/min. 128 x 64 graphic LCD displays running menus and parameter setting menus. The display interfaces are friendly. It has many control modes. The external control can be realized through standard external control interface or 485 communication interface.
Specification:
- Speed precision: 1 rpm
- Speed control: Rotary coded switch coupled with membrane keypad
- Speed: 1 to 300 rpm, reversible
- Display: 128×64 graphic LCD displays flow rate, speed or dispensing mode
- Copy number: 1 to 999
- Dispense volume: 0.1 mL to 99.9 L
- Pause time: 1 to 999 s
- Back suction angle: 0 to 360°, 18° increments
- External control: Start/stop and cw/ccw control; 0 to 5 V, 0 to 10 V, and 4 to 20 mA speed control
- Communication interface: RS485
- Power supply : AC 220 V ± 10% 50/60 Hz (standard); AC 110 V ± 10% 50/60 Hz (optional)
- Power consumption: < 50 W
- Operating condition: Temperature 0 to 40 °C ; Relative humidity < 80%
- Dimensions (L × W × H): 202 × 160 × 239 (mm)
- Drive weight: 4.3 kg
- IP rating: IP 3
Features:
- Applicable pump heads: YZ1515X, YZ2515X, YZII15, YZII25
- Set pause time to realize dispensing and filling automatically
- Display can switch between flow rates and rpm
- Calibrate setting flow rates to acquire more accurate flow rates
- RS485 communication interface available. Offering communication protocol to customer and customizing software according to customer's requirements.

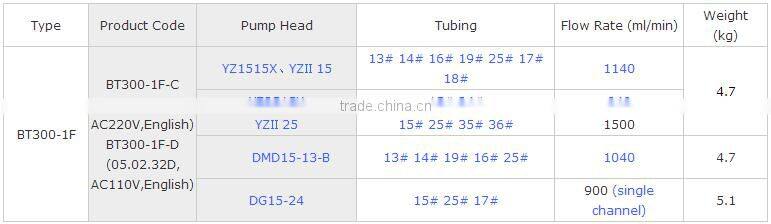

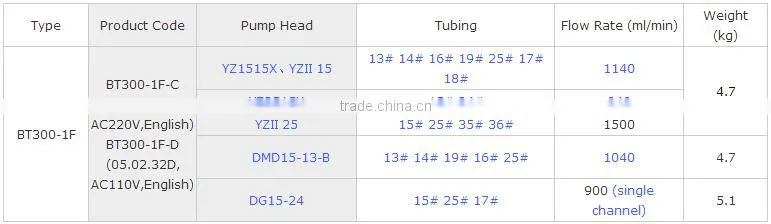

Parameters:

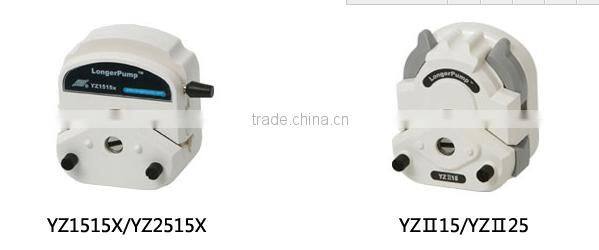

Suitable Pump Head:
Packaging & Shipping
Protective Box & Carton
Our Services
We aim to provide professional services to meet consistently customer's requirements keeping quality & cost on priority. OEM is highly welcome.
