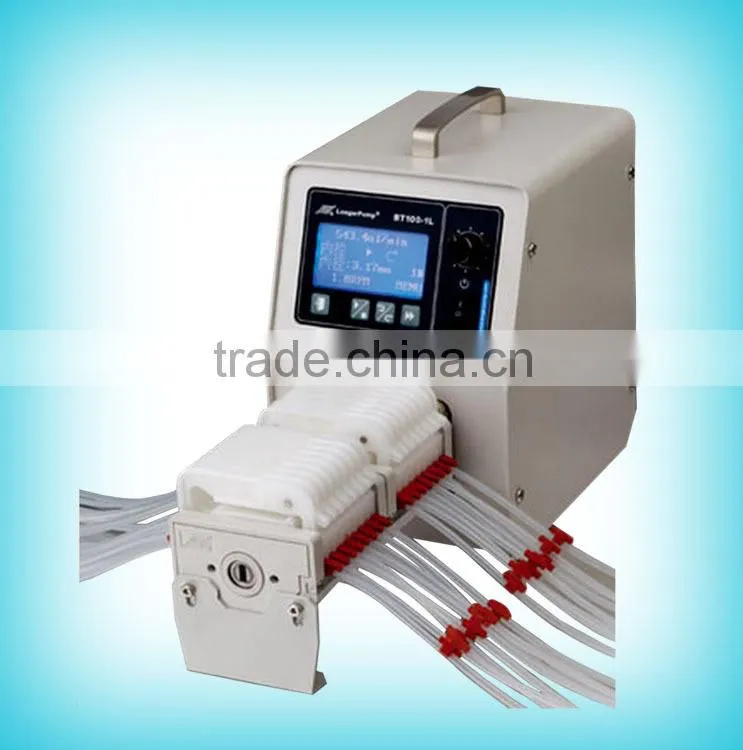

High Quality Multi-channels Peristaltic Pump

High Quality Multi-channels Peristaltic Pump thumbnail-1
High Quality Multi-channels Peristaltic Pump photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Longer
Model Number:
BT100-1L
Contact Supplier Request Quote Chat Now
Beijing Mingbofei Science Technology Limited Company
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin & Shanghai & Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name Longer
Model Number BT100-1L
Theory Other, Peristaltic Pump
Structure Other, Peristaltic Dosing Pump
Usage Other, Peristaltic Dosing Pump
Power Electric
Standard or Nonstandard Standard
Fuel Other, Electric
Pressure Other, Low Flow Rate
Application Other, Peristaltic Dosing Pump

High Quality Multi-channels Peristaltic Pump



Product Description

The max. output torque of Multi-channels Peristaltic Pump BT100-1L drive is 1.65 N.m. Multi-channels pump heads are available. The pump delivers flow rates from 0.002 to 500 mL/min. 128 x 64 graphic LCD displays running menus and parameters setting menus. The flow rate and the speed (rpm) can be displayed in the same screen. The display interface is friendly. It has flow rate calibration function to make the flow rate more accurate. It has many control modes. The external control can be realized through standard external interface or RS485 communication interface.



High Quality Multi-channels Peristaltic Pump





Specification:



  • Speed: 1.0 to 100.0 rpm, reversible
  • Speed resolution: 0.1 rpm
  • Speed control: Rotary coded switch coupled with membrane keypad
  • Display: 128 × 64 graphic LCD displays current running status
  • External Control: Start/stop and cw/ccw control, 0 to 5 V, 0 to 10 V, and 4 to 20 mA speed control
  • Communication interface: RS485
  • Power supply: AC 220 V ± 10% 50/60 Hz (standard) AC 110 V ± 10% 50/60 Hz (optional)
  • Power consumption: <50 W
  • Operating condition: Temperature 0 to 40 °C, Relative humidity < 80%
  • Dimensions (L × W × H): 202 × 160 × 239 (mm)
  • Drive weight: 5.34 kg
  • IP rating: IP 31


Features:
  • Display can switch between flow rates and rpm
  • Calibration capability for more accurate flow rate
  • Graphic LCD together with rotary encoded switch makes it friendly and easy to use
  • Higher torque to accept more pump heads and more channels
  • RS485 communication interface available. Offering communication protocol to customer and customizing software according to customer's requirements.

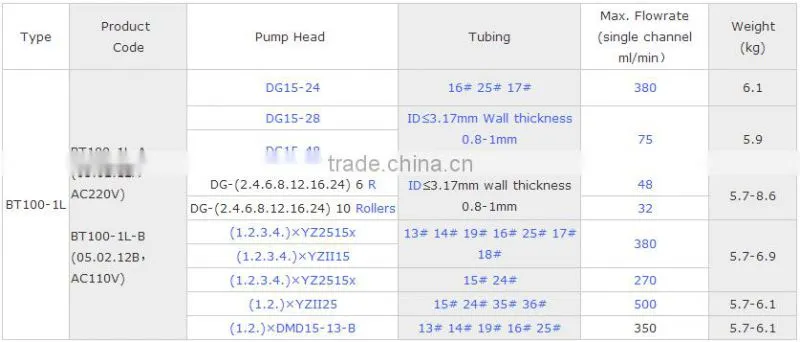

Parameters:


Suitable Pump Head:




Packaging & Shipping

 Protective Box & Carton
