High Quality High Flow Rate, High IP Rate Peristaltic Pump
- 200 Set / Sets per Month
- Tianjin & Shanghai & Shenzhen
- T/T Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Hebei, China | Brand Name: | Longer | Model Number: | WT600-3J |
Theory: | Other, Peristaltic Pump | Structure: | Other, Peristaltic Dosing Pump | Usage: | Other, Peristaltic Dosing Pump |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, Electric |
Pressure: | Other, High Flow Rate | Application: | Other, Peristaltic Dosing Pump |
Product Description
High Quality High Flow Rate, High IP Rate Peristaltic Pump
Precise peristaltic pump WT600-3J is one kind of high IP rating and high-efficiency product, it features a maintenance-free brushless DC motor and application of specific integrated circuit with big torque (1.5 N.M), small vibration. It can drive various single/dual channels pump heads to provide flow rate from 4.2 to 6000 mL/min. Easy to operate.
Specification:
- Speed: 60-600 rpm, reversible
- Speed accuracy: ±1.0%
- Speed resolution: 1 rpm
- Torque output: ≥1.50 N.M
- Display: 3 Digital LED display, 4 pcs LED indicators show the working state
- Memory Function: Storing the running parameters automatically
- External control: Start/stop, direction, speed control (0.5-5V,1-10V,0-20mA, 1-10KHz are corresponding to 60-600rmp)
- Communication interface: RS485
- Power supply: AC 176-264V, 50Hz/60Hz
- Power Consumption: ≤200W
- Cooling mode: Natural cooling heat
- Operation condition: Temperature 0 to 40℃, relative humidity: <80%
- Dimensions (L×W×H): 273×190×272(mm)
- Drive weight: 7.3kg
- IP rating: IP55
- High IP rating: suitable for moist and dust working condition
- Prime key: Fast filling and emptying
- Memory function: Storing the running parameters automatically
- Communication function: realize the computer control through RS485 interface
- Display: 3 digits LED displays the speed of the pump
- External control: Start/stop, CW/CCW and speed

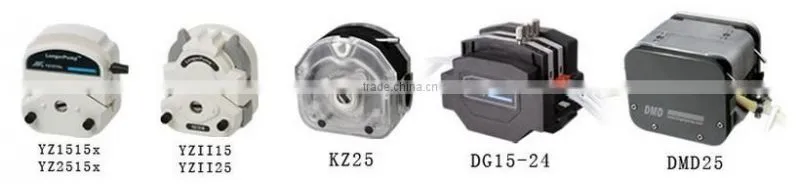

- Suitable for different pump heads and tubing
- High output torque which can drive double pump heads
- Brushless DC motor, maintenance-free
- Operation mode: Switch and membrane keypad. Easy to operate
Protective Box & Carton
We aim to provide professional services to meet consistently customer's requirements keeping quality & cost on priority. OEM is highly welcome.
