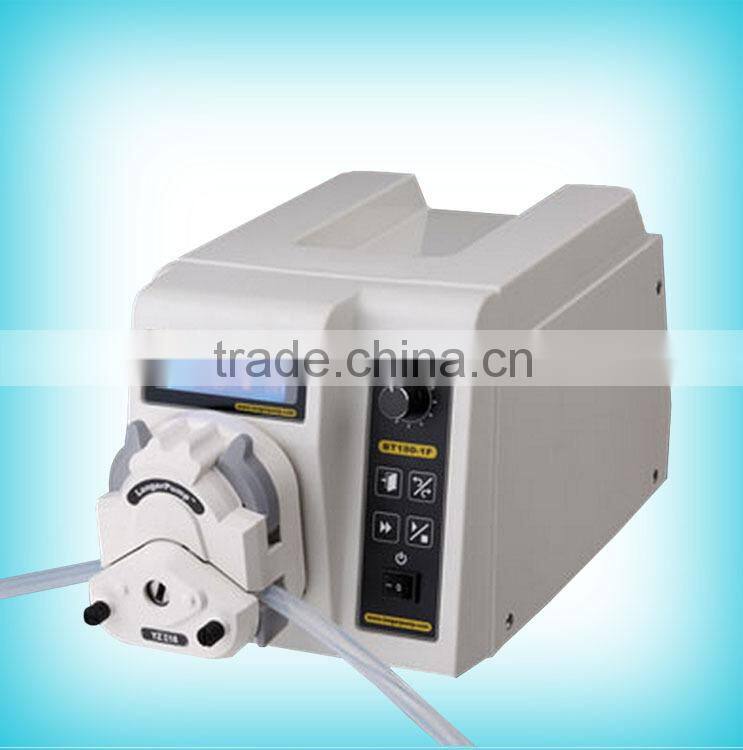

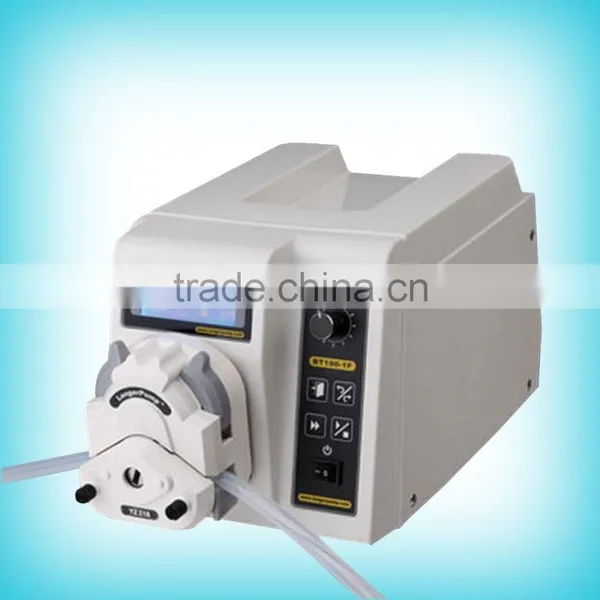

High Quality Dispensing Peristaltic Pump
Product Description
Dispensing peristaltic pump BT100-1F can be loaded YZ1515X, YZ2515X, YZII15, YZII25 and DG-1, DG-2, DG-4. The pump delivers flow rates from 0.2μL to 500 mL/min and dispensing volume is from 0.01 mL to 9900 mL. Combining 128*32 LCD display with membrane keypad and rotary encoded switch makes the operation easy and prompt. The speed can be adjusted manually or automatically through external control interface.
Specification:
- Speed: 0.1-100 rpm, reversible
- Speed resolution: 0.1 rpm
- Dispensing volume: 0.01 mL to 9.99 L
- Copy number: 0 to 9999, 0 means unlimited cycle.
- Speed control: Rotary encoded switch
- Pause time : 0.1 s to 99.9 min
- Flow rates calibrating time: 0.5-30 min
- External control input interface: start/stop control, direction control, flow rates control(0 - 5V , 0 - 10V , 4 - 20 mA , 0 - 10KHz optional )
- Output interface: start/stop, direction output and 0 - 10 KHz frequency output (corresponding to 0.1 to 100.0 rpm) with insulating function
- Communication: RS485
- Power: AC 100-240 V ± 10%, 50/60 Hz
- Power consumption: < 40W
- Operating condition: Temperature 0 to 40°C, Relative humidity < 80%
- Dimensions (L × W × H): 285 × 207 × 180 (mm)
- Drive Weight: 3.8 kg
- IP rating: IP 31
Features:
- Applicable pump heads: YZ1515X, YZ2515X, YZII15, YZII25 andDG-1, DG-2, DG-4
- Micro flow rates transferring: The smallest flow rate can reach 0.2 μL/min
- Back suction function: In dispensing mode, the pump runs reversely after stopping to prevent the liquid from dripping
- Operating mode: Membrane keypad and rotary encoded switch
- Speed control: The speed can be adjusted manually or automatically through external control interface
- Display: LCD displays current running status
- Prime key: For fast filling and emptying
- Memory function: Storing the running parameters automatically
- Calibration function: The flow rates and the dispensing volume can be calibrated to increase the accuracy
- Communication function: Realize computer control through RS485 communication interface

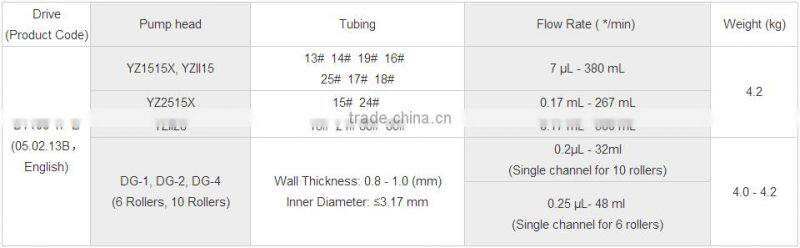

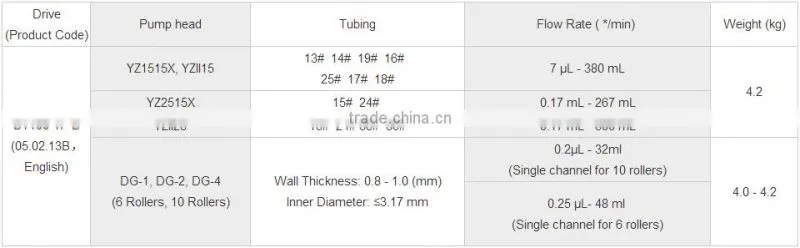

Parameters:

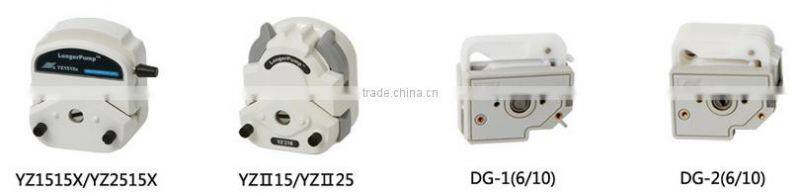

Suitable Pump Head:
