High Performance Industrial Peristaltic Pump

Name: High Performance Industrial Peristaltic Pump
Brand: Longer
SKU: 109014303
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

Longer

Model Number:

WT600-4F

Beijing Mingbofei Science Technology Limited Company

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin & Shanghai & Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name Longer

Model Number WT600-4F

Theory Other, Peristaltic Pump

Structure Other, Peristaltic Dosing Pump

Usage Other, Peristaltic Dosing Pump

Power Electric

Standard or Nonstandard Standard

Fuel Other, Electric

Pressure Other, High Flow Rate

Application Other, Peristaltic Dosing Pump

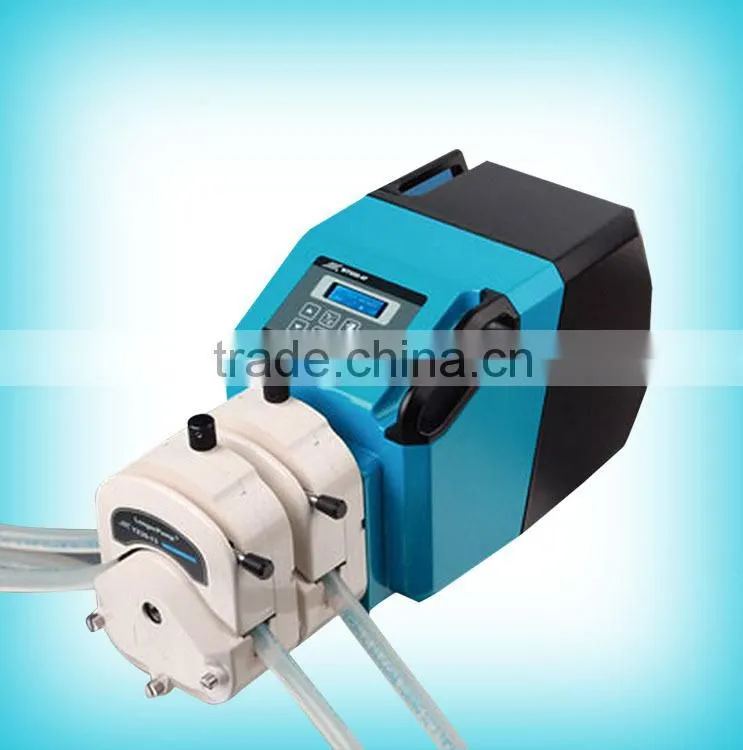

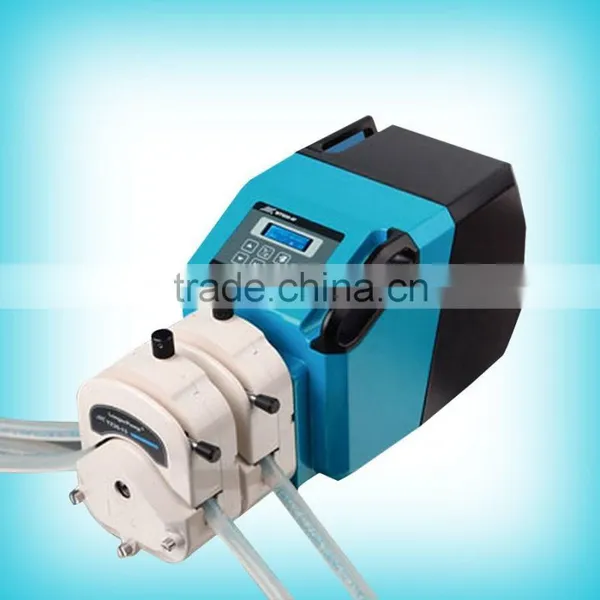

High Performance Industrial Peristaltic Pump

Product Description

Industrial Peristaltic Pump WT600-4F is a high IP rating and high efficient pump with high-power DC brushless motor, it is suitable for working in dust and damp industrial environment. It is delivers flowrates from 100 to 11000 ml/min and dispensing volume from 100ml to 999 liters when loading YZ35-13 or KZ35 pump head. WT600-4F adopts 128*32 LCD to display all the running information and parameters; it is easy to operate through membrane keypad or can be controlled through standard external control module and RS485.

Specification:

Flow Rates: 100 – 11000 ml/min
Dispensing Volume: 100ml to 999 L
Speed: 10 – 600 rpm
Copy No.: 0 – 9999, ‘0’ means unlimited cycles
Pause Time: 1 second to 99.9 minutes
Back Suction: 0 to 9.9 revolutions (precision is 0.1 revolution)
Calibration Time: 30 to 1800 seconds
External Control Input: Control Start/Stop, Direction, Flow (0 – 5V, 0 – 10V, 4 – 20 mA, 0 – 10kHz, only one mode need to be chosen when ordering pump)
External Control Output: Start/Stop, direction, frequency 0-7.5KHz
Communication interface: RS485
Power Supply: AC176 – 264V 50/60Hz
Power Consumption: <300W
Operating Conditions: Temperature: 0 – 40 ℃, relative Humidity: <100%
Dimension (L×W×H): 360×215×243
Weight: 12 kg
IP Rating: IP65

Features:

Applicable Pump Head: YZ35-13, KZ35
Back suction: Prevent dripping of liquid when dispensing a certain liquid volume
Operating code: Membrane keypad to set parameters and operation
Control mode: Pump can be controlled internally through membrane keypand or externally through external control modules.
Display: 128×32 Graphic LCD displays the running status.
Prime function: Fast filling or emptying the tubing
Memory Function: Store all the running staus automatically
Calibration: The flow rates and dispensing volume can be calibrated to improve the accuracy.
Footswitch: Control Start/Stop of the pump.
