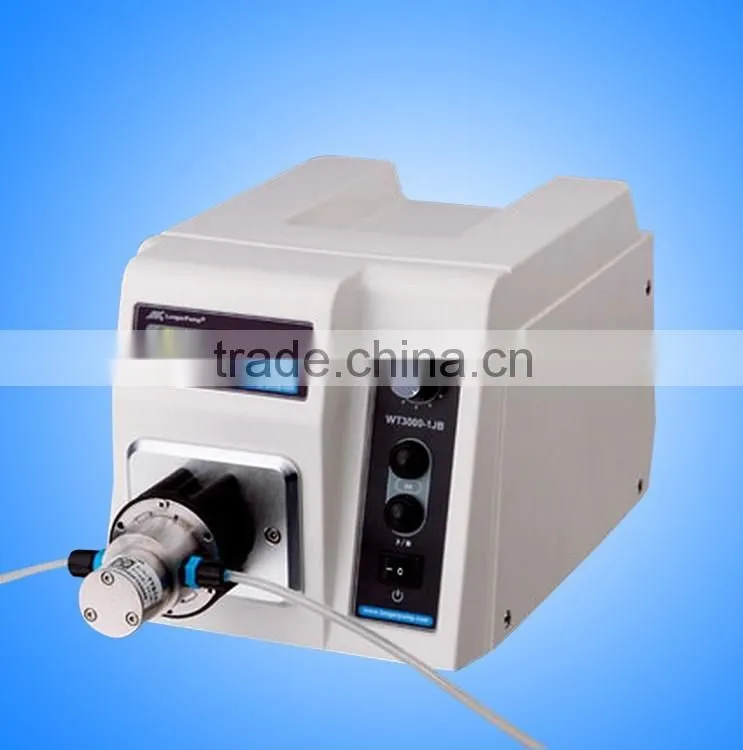

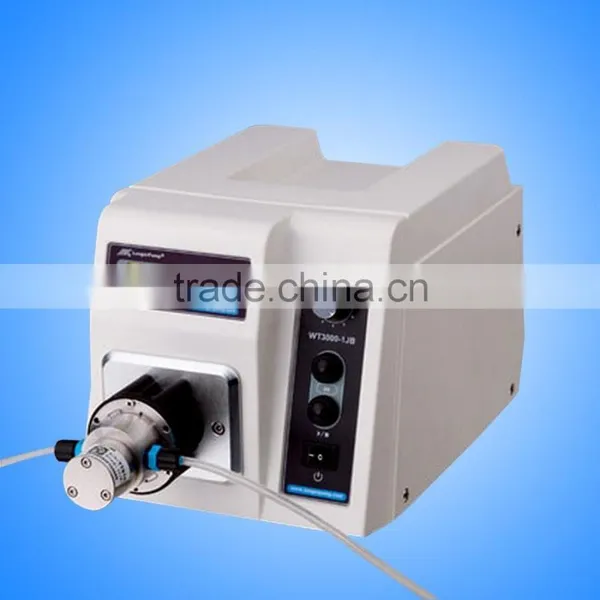

Disinctive Design Basic Gear Pump Micro Gear Pumps WT3000-1JB
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Longer
Model Number:
WT3000-1JB
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin & Shanghai & Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Disinctive Design Basic Gear Pump Micro Gear Pump WT3000-1JANegotiableMOQ: 1 Set -
Disinctive Design Laboratorial Industries Syringe Pump MSP1-D1NegotiableMOQ: 1 Set
-
Disinctive Design Laboratorial High Pressure Syringe Pump LSP01-1BHNegotiableMOQ: 1 Set
-
Disinctive Design Laboratorial Push & Pull Syringe Pump LSP01-1CNegotiableMOQ: 1 Set
-
Disinctive Design Laboratorial Dual Channels Syringe Pumps LSP02-1BNegotiableMOQ: 1 Set
Place of Origin
Hebei, China
Brand Name
Longer
Model Number
WT3000-1JB
Theory
Other, Gear Pumps
Structure
Other, Micro Gear Pumps
Usage
Other, Micro Gear Pumps
Pressure
High Pressure
Application
Other, Micro Gear Pump
Power
Other, AC 220/110V± 20%, 50Hz/60Hz
Disinctive Design Basic Gear Pump Micro Gear Pumps WT3000-1JB
Product Description
This WT3000-1JB micro gear pumps adopt brushless DC motor. It has features of high efficiency and maintenance-free. It accepts multiple pump heads and delivers flow rates from 85.7 to 2571.4 mL/min. The compact and precise gear pump heads are noiseless, pulsation-free and suitable to transfer high temperature fluids or transfer the fluids in pressure condition.
Specifications:
- Speed: 300-3000 rpm
- Speed accuracy: ±1.0%
- Speed resolution: 1.0 rpm
- Communication interface: RS485
- Diameter of particle in liquid: ≤10μm
- Max. Outlet pressure: MS204 - 1.4 MPa; MS209 - 0.9MPa; MS213 - 0.8MPa.
- Liquid temperature: -45 to 50 ℃ with PEFE gear; -45 to 120 ℃ with PEEK gear
- Fluids viscosity: ≤ 200 cst
- External control: Start/stop control, speed control (0.5-5V, 1-10 V, 4-20 mA, 1-10 kHz optional)
- Power supply: AC 220/110V± 20%, 50Hz/60Hz
- Power consumption: ≤150 W
- Operating condition: Temperature 0 to 40℃, Relative humidity <90% (no dew)
- Drive weights: 5.1 kg
- Drive dimensions (L×W×H) : 290×207×180 (mm)
- IP rating: IP31
Feasures:
- Acceptable pump heads: MS204, MS209, MS213
- Suitable to transfer viscous, high temperature fluids or transfer the fluids in pressure condition
- Compact size, noiseless, pulsation-free
- 4 digits LED displays the speed of the pump
- Combine the knob and rotary encoder switch to make the operation easy
- Prime function for fast filling and emptying
- The start/stop and speed of the pump can be controlled through external control port
- Store the running parameters automatically
Parameters:
| Type (Product Code) |
Pump Head | Gear Material |
Flow Rate (ml/min) |
Outlet Pressure (Mpa) | Liquid Temperature (℃) |
Weight (kg) |
| WT3000-1JB (0502702) | MS204XD0PT00000 | PEEK | 85.7-857.1 | ≤1.4 | -45~120 | 5.39 |
| MS204XD0TT00000 | PTFE | 85.7-857.1 | ≤1.4 | -45~50 | 5.39 | |
| MS209XD0PT00000 | PEEK | 171.1-1714.3 | ≤0.9 | -45~120 | 5.4 | |
| MS209XD0TT00000 | PTFE | 171.1-1714.3 | ≤0.9 | -45~50 | 5.4 | |
| MS213XD0PT00000 | PEEK | 257.1-2571.4 | ≤0.8 | -45~120 | 5.42 | |
| MS213XD0TT00000 | PTFE | 257.1-2571.4 | ≤0.8 | -45~50 | 5.42 |
Packaging & Shipping
Protective Box & Carton
