Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > Disinctive Design Basic Gear Pump Micro Gear Pump WT3000-1JA
Disinctive Design Basic Gear Pump Micro Gear Pump WT3000-1JA
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Longer
Model Number:
WT3000-1JA
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin & Shanghai & Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Disinctive Design Laboratorial Industries Syringe Pump MSP1-D1NegotiableMOQ: 1 Set -
Disinctive Design Laboratorial High Pressure Syringe Pump LSP01-1BHNegotiableMOQ: 1 Set
-
Disinctive Design Laboratorial Push & Pull Syringe Pump LSP01-1CNegotiableMOQ: 1 Set
-
Disinctive Design Laboratorial Dual Channels Syringe Pumps LSP02-1BNegotiableMOQ: 1 Set
-
Disinctive Design Laboratorial Single Channel SyringePump LSP01-1ANegotiableMOQ: 1 Set
Place of Origin
Hebei, China
Brand Name
Longer
Model Number
WT3000-1JA
Theory
Other, Gear Pump
Structure
Other, Micro Gear Pump
Usage
Other, Micro Gear Pump
Pressure
High Pressure
Application
Other, Micro Gear Pump
Power
Other, AC 90-130V/176-264V, 50Hz/60Hz

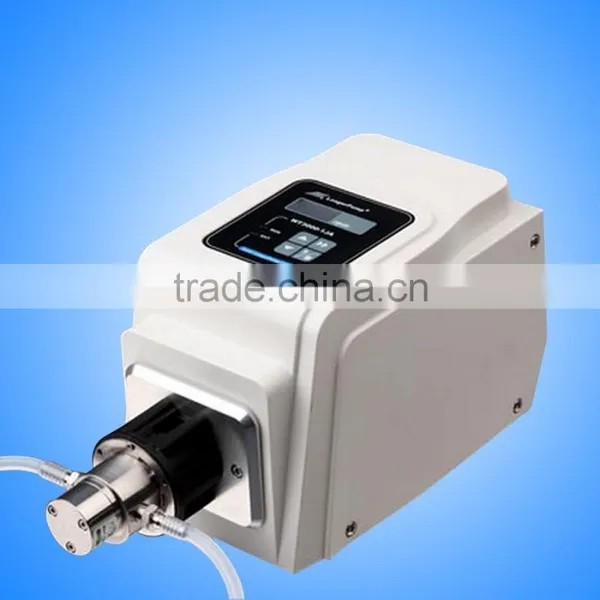

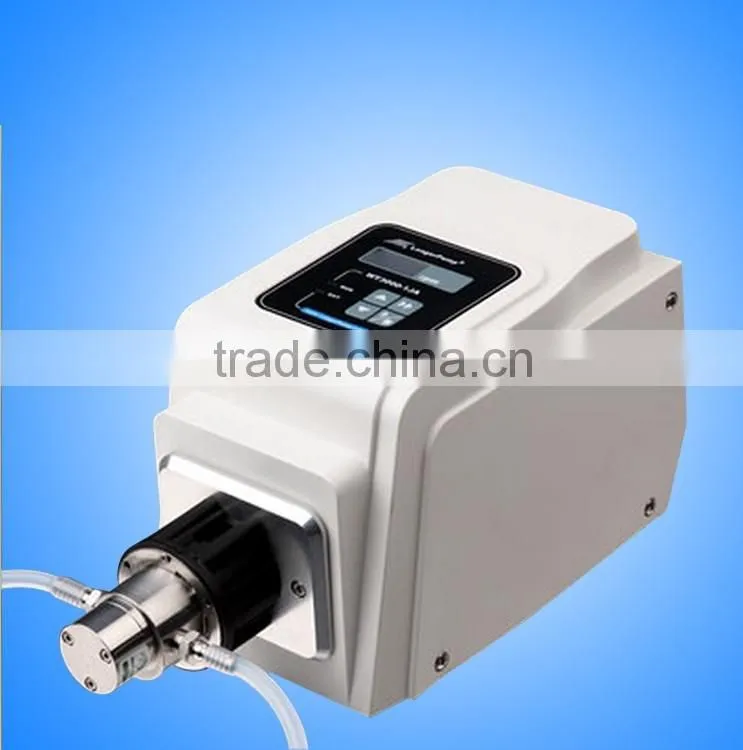

Disinctive Design Basic Gear Pump Micro Gear Pump WT3000-1JA
Product Description
This WT3000-1JA micro gear pump can install variable pump head to provide flow rates from 85.7 to 2571.4 ml/min, it adopts brushless DC motor and has features of high efficiency and maintenance free.
Specifications:
- Flow rates: 85.7 - 2571.4 ml/min
- Speed: 300-3000 rpm
- Speed accuracy: ±1.0%
- Speed resolution: 1.0 rpm
- Communication interface: RS 485
- Diameter of particle in liquid: ≤10μm
- Max. outlet pressure: MG204 - 0.8Mpa, MG209 - 0.8Mpa, MG213 - 0.3Mpa
- Liquid temperature: -45 to 50℃ with PTFE gear, -45 to 120℃ with PEEK gear
- External control: Start/stop control, speed control(0.5-5V, 1-10 V, 4-20 mA, 1-10 kHz optional)
- Fluids viscosity: ≤ 200 cst
- Power supply: AC90-130V/176-264V, 50Hz/60Hz
- Power consumption: ≤50 W
- Operating condition: Temperature 0 to 40℃, Relative humidity <90% (no dew)
- Drive weights: 2.83 kg
- Drive dimensions (L×W×H): 232×142×149(mm)
- IP rating: IP31
Feasures:
- Acceptable pump heads: MG204, MG209, MG213
- Operating mode: Membrane keypad
- Prime function for fast filling and emptying
- Display: 4 digits LED displays the speed of the pump, two LED lights indicate the running status and external control status.
- External input functions: Control the start/stop and the speed of the pump.
- Footswitch: Control the start/stop of the pump
- Communication function: Realize computer control through RS485 INTERFACE.
- Memory functions: Store the running parameters automatically.
- Cooling mode: Heat-emitting fan
- Running directions: Clockwise only
Parameters:
| Type (Product Code) |
Pump Head | Gear Material | Flow Rate (ml/min) | Outlet Pressure (Mpa) | Liquid Temperature (℃) |
Weight (kg) |
| WT3000-1JA (0502701) | MG204XD0PT00000 | PEEK | 85.7-857.1 | ≤0.8 | -45~120 | 3.25 |
| MG204XD0TT00000 | PTFE | 85.7-857.1 | ≤0.8 | -45~50 | 3.25 | |
| MG209XD0PT00000 | PEEK | 171.1-1714.3 | ≤0.8 | -45~120 | 3.26 | |
| MG209XD0TT00000 | PTFE | 171.1-1714.3 | ≤0.8 | -45~50 | 3.26 | |
| MG213XD0PT00000 | PEEK | 257.1-2571.4 | ≤0.3 | -45~120 | 3.28 | |
| MG213XD0TT00000 | PTFE | 257.1-2571.4 | ≤0.3 | -45~50 | 3.28 |
Packaging & Shipping
Protective Box & Carton
Our Services
We aim to provide professional services to meet consistently customer's requirements keeping quality & cost on priority. OEM is highly welcome.
Company Information
We, Beijing Mingbofei Science Technology Limited Company, is China-based professional supplier of laboratory, commercial and industrial instruments and equipment. Our products cover Laboratory Analytical Balances, Commercial and Industrial Weighing Scales, Laboratory Centrifuges, Optical Cables, LED Lights, Laboratorial & Industries Peristaltic Pump, Syringe Pump, Gear Pump and Accessories.
Since incorporation, we've been committed to provide the state-of-the-art products and excellent services for clients at competitive price. Up to now, we have established cooperation with clients from North America, South America, Southeast Asia, Mideast, Africa, and got their high praise of our products and services. Our clients include importers, distributors, wholesalers, end-users.
