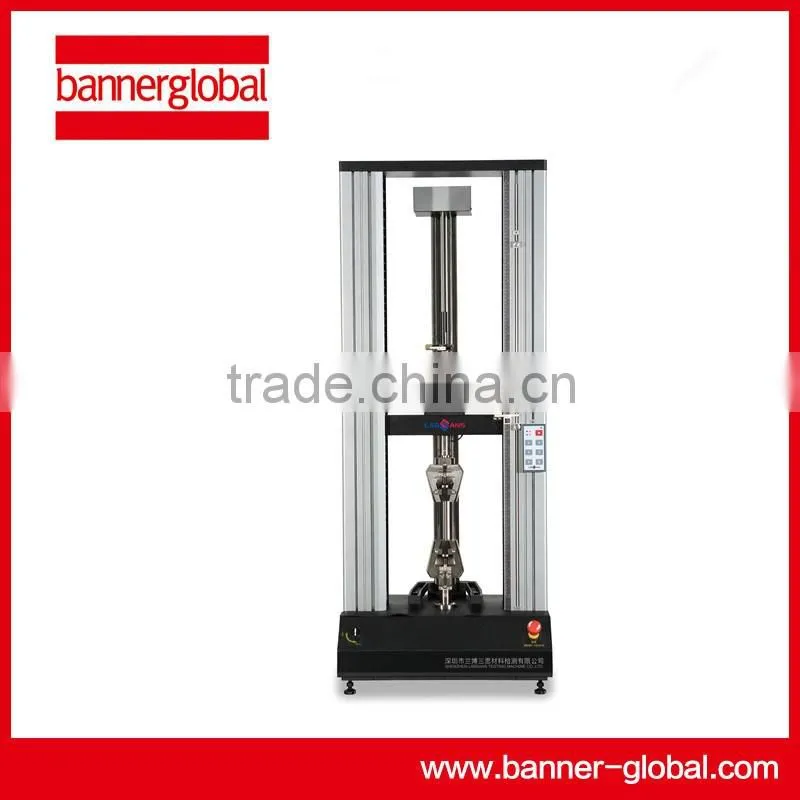

100kn Electronic Fastener Universal Tensile Testing Equipment
1. Features:
1: full set of compact, high rigid single column and double column load frame configuration
2: high speed, low vibration MTS motor drive device
3: maintenance free world class AC servo motor and servo motor
4: precision pre load ball screw
5: non clutch driving device, capable of running at full speed under the maximum force
6: high resolution, digital closed-loop controller (integrated in the load frame)
7: easy test setup and handheld
8: multi function, easy to operate the TW Test Suite software, with rich and increasing test method standard library (ISO, ASTM, DIN, EN, BS, etc.)
9 High accuracy load sensor for 9:TEDS self recognition

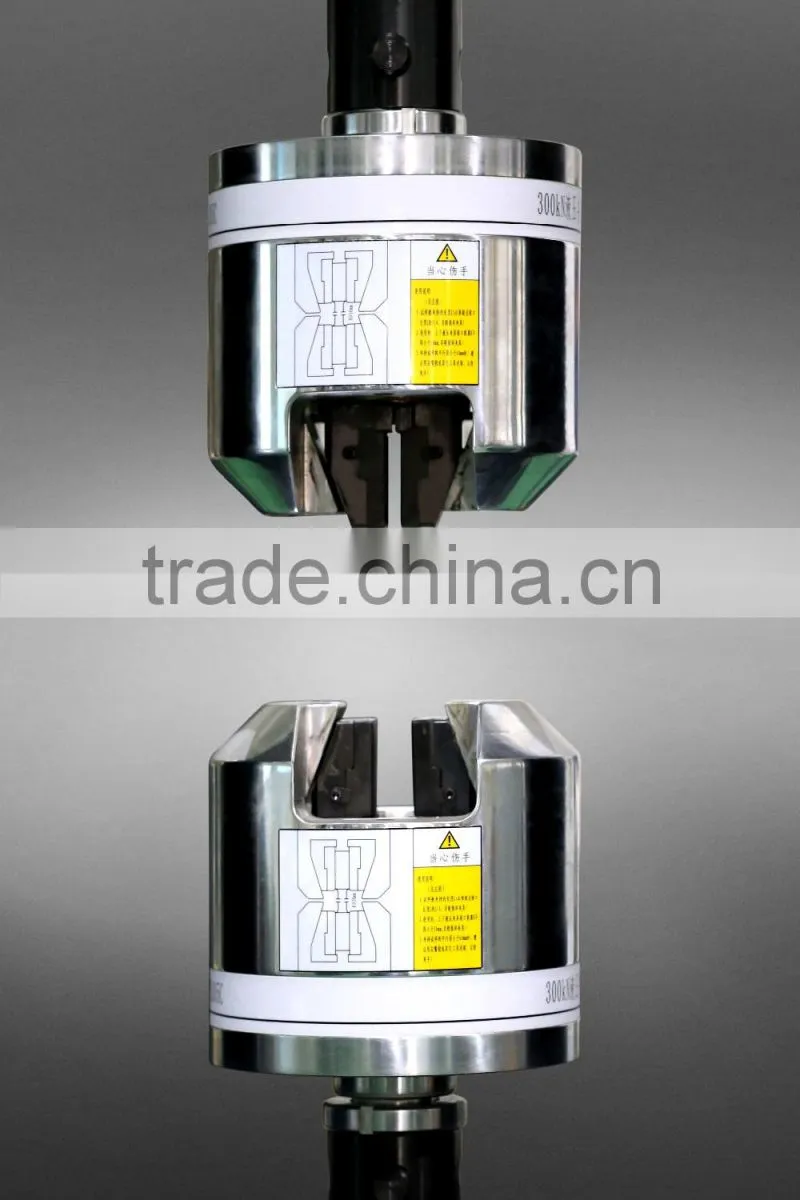

10: a full set of optional accessories, fixture, environmental system and extensometer
11: optional double space (model 44 and 45) to reduce setup time
12: anti rotating fixture / accessory device
13: optional T type table
14: beam displacement limit protection, overload protection, overheat protection, voltage overload protection, etc.
15: durable test space protection
2. Application:
Steel wire, plastics, fine wire, fibers and threads, biomaterials, thin films, adhesives, foam, packaging, paper products, consumer products.
3. Standard:
ISO 7500 Class 0.5 / Class 1; ASTM E4
4. Technical Parameters:
Model |
LD23 |
Maximum rated force capacity |
100kN(2200lbf) |
Force capacity options |
5N,10N,20N,50N,100N, 1lbf, 2 lbf, 5 lbf, 10 lbf, 20 lbf, 45 lbf, 110 lbf, 220 lbf, 450 lbf, 1100 lbf, 2200 lbf
|
Frame type |
Door type |
Test zones |
Single |
Maximum test speed |
500mm/min(19.7in/min) |
Minimum test speed |
0.001mm/min(0.00004in/min) |
Position resolution |
0.000041mm(0.0000016in) |
Vertical test space crosshead travel |
1000mm(39.4in) |
Space between columns |
340mm(13.4in) |
Frame height |
100(Distance from load shaft to cylinder cover) |
Size (H× W × D) |
1617*681*588mm(63.7*26.81*23.15in) |
Weight |
120kg(265lb) |
Power requirement |
single phase220V±10%;600W |
5. Pictures:
Our company
Introduction:
Shandong Banner International Trade Co., LTD. , is your most reliable test helper in material
testing industry. Bannerglobal is our brand. The founder and main leaders of our company worked
in MTS Systems Corporation more than ten years and provided solutions for various demanding
and extremely complex material testing in many fields of China.
We provide the most abundant product lines in the industry, such as electronic universal testing
system by screw driven, electro-hydraulic servo fatigue testing system, impact test system,
biological tissue engineering test, structural test and collision analog system, etc. Our customers
cover almost all markets and industries of the world, including regenerative medicine,
aerospace, energy, electric power, heavy industry, electronics and automobile manufacturing.
After-service
Within 12 months warranty from the date of assemble and acceptance.
During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service.
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. After service phone :400-168-8048

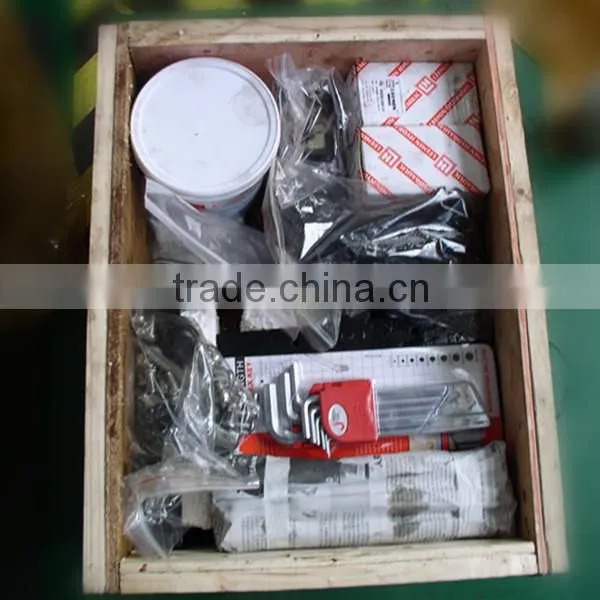

Packaging: packed with export standard wooden box.
Why choose us?
1. Considerate Service Different countries plugs, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely.
3.Good Packaging:machine is with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
