Material Tensile Strength Testing Machine
2. Product Description of Material Tensile Strength Testing Machine
Universal Testing Machines are suitable for quality control of various fields, which include metal wire, nylon wire, plastic, rubber, textile and clothes, packaging and so on, for tension, compression and bending, peer and tear test.
LD23 series system to meet the requirements of various production test. High reliability and easy operation, these test systems use high speed, low vibration motor drive device and integrated, digital closed-loop control device, in the range of 5N to 300kN to achieve force control, displacement or strain control test.
LD23
Rated force capacity: 5N-10kN;
Applications: Steel wire, plastics, fine wire, fibers and threads, biomaterials, thin films, adhesives, foam, packaging, paper products, consumer products.
Details Information
Technical Parameters:
Model |
LD 23 |
Maximum rated force capacity |
10kN(2200lbf) |
Force capacity options |
5N,10N,20N,50N,100N, 1lbf, 2 lbf, 5 lbf, 10 lbf, 20 lbf, 45 lbf, 110 lbf, 220 lbf, 450 lbf, 1100 lbf, 2200 lbf
|
Frame type |
Table top |
Test zones |
Single |
Maximum test speed |
500mm/min(19.7in/min) |
Minimum test speed |
0.001mm/min(0.00004in/min) |
Position resolution |
0.000041mm(0.0000016in) |
Vertical test space crosshead travel |
1000mm(39.4in) |
Space between columns |
340mm(13.4in) |
Frame height |
100(Distance from load shaft to cylinder cover) |
Size (H× W × D) |
1617*681*588mm(63.7*26.81*23.15in) |
Weight |
120kg(265lb) |
Power requirement |
single phase220V±10%;600W |
Main features:
1: full set of compact, high rigid single column and double column load frame configuration
2: high speed, low vibration MTS motor drive device
3: maintenance free world class AC servo motor and servo motor
4: precision pre load ball screw
5: non clutch driving device, capable of running at full speed under the maximum force
6: high resolution, digital closed-loop controller (integrated in the load frame)
7: easy test setup and handheld
8: multi function, easy to operate the TW Test Suite software, with rich and increasing test method standard library (ISO, ASTM, DIN, EN, BS, etc.)
9 High accuracy load sensor for 9:TEDS self recognition
10: a full set of optional accessories, fixture, environmental system and extensometer
11: optional double space (model 44 and 45) to reduce setup time
12: anti rotating fixture / accessory device
13: optional T type table
14: beam displacement limit protection, overload protection, overheat protection, voltage overload protection, etc.
15: durable test space protection
Software
Crips and fixtures

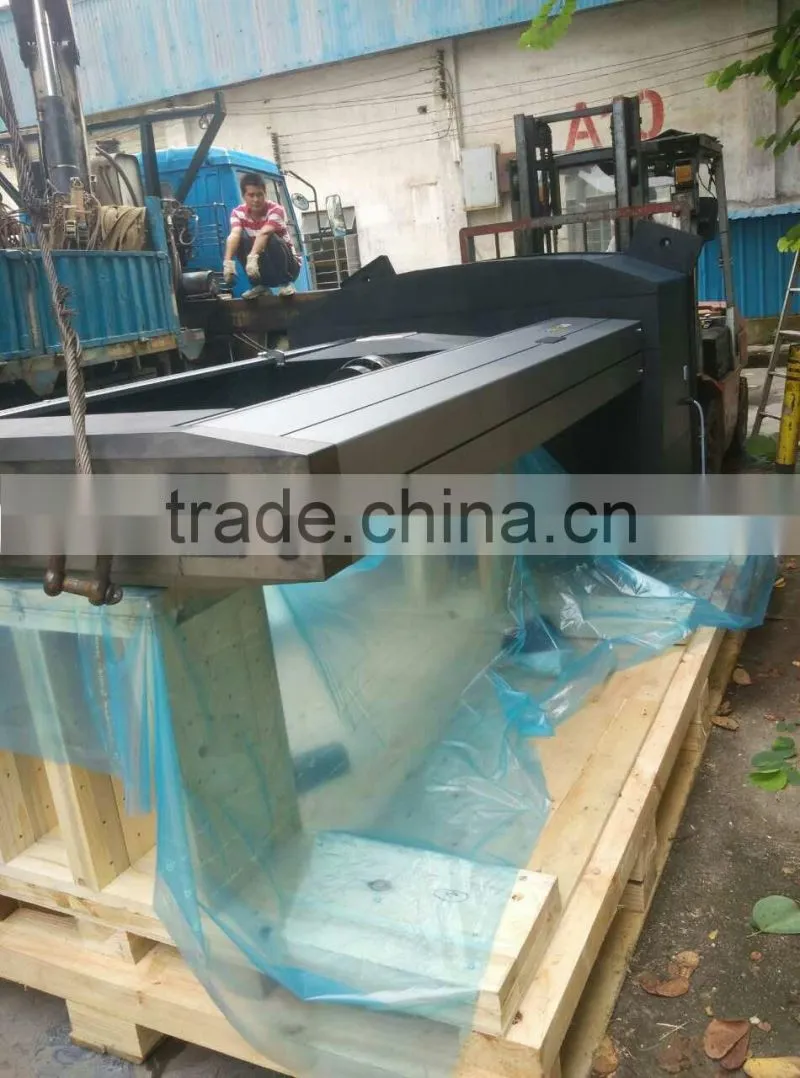

Packaging: packed with export standard wooden box.
Shipping:We have stable forwarding agent for Air transportation and
Sea transportation. And also express delivery of TNT, DHL.
Shandong Banner International Trade Co., LTD. , is your most reliable test helper in material
testing industry. Bannerglobal is our brand. The founder and main leaders of our company worked
in MTS Systems Corporation more than ten years and provided solutions for various demanding
and extremely complex material testing in many fields of China.
We provide the most abundant product lines in the industry, such as electronic universal testing
system by screw driven, electro-hydraulic servo fatigue testing system, impact test system,
biological tissue engineering test, structural test and collision analog system, etc. Our customers
cover almost all markets and industries of the world, including regenerative medicine,
aerospace, energy, electric power, heavy industry, electronics and automobile manufacturing.
Work shop
Tel: 0086-537-3167400
Fax: 0086-537-3165401
Mob: 0086-15898600195
