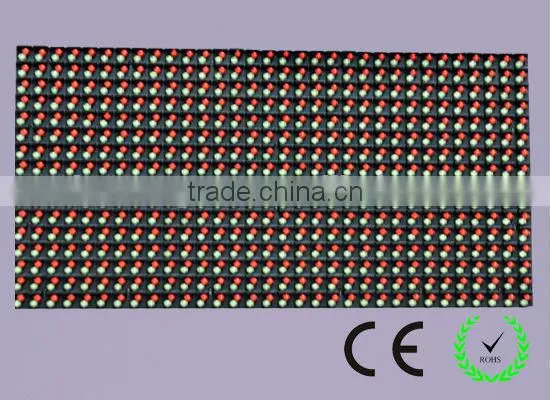

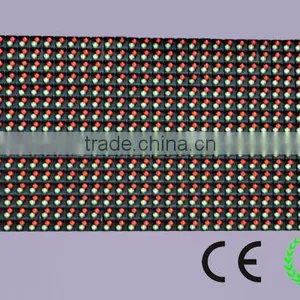

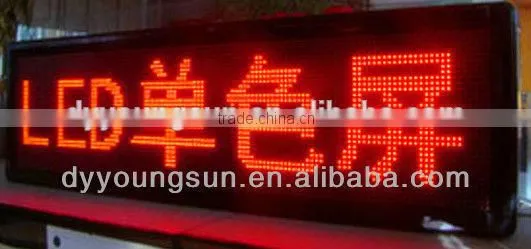

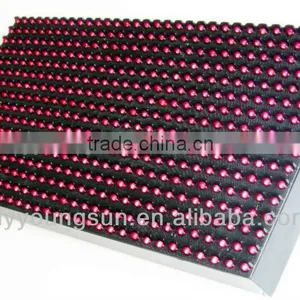

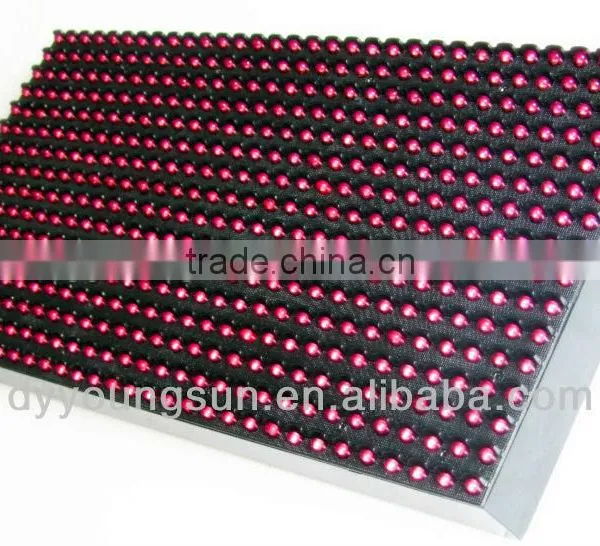

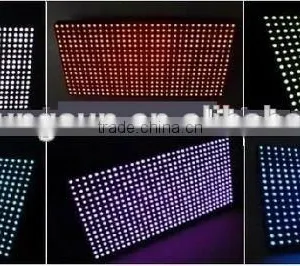

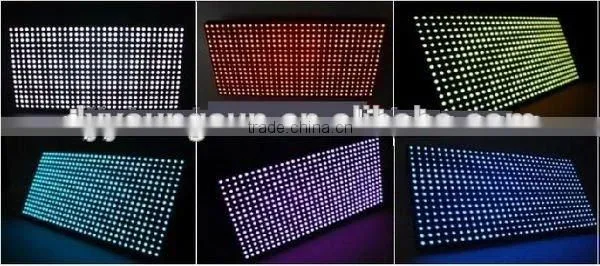

Professional Manufacturer Supply Outdoor P10 Single Colr Led Display Module

US$ 7.5 - 8.2 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

DY-P10R

Dongguan Deying Photoelectric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shen zhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name DY

Model Number DY-P10R

Usage Outdoor

Tube Chip Color Red

Display Function Other, text and simple picture

Pixels 10mm

Screen Dimension customized

Product Description:

Item			P10
Module Parameters		Physical Pitch	10mm
		Physical Density	10000dots/m2
		LED Arrangement	red
		LED Encapsulation Form	DIP 346
		Module Size	160mm*160mm
		Module Resolution	16× 16
		Scan Mode	1/4 Scan
		Drive Mode	Constant Current Driving
Cabinet Parameters		Cabinet Size	960mm*960mm
		Cabinet Resolution	96*96
		Module Quantity	36pcs
Display Parameters	Optical	Brightness	5500cd/m2
		View Angle	120° /50°
		Best View Distance	10m-30m
	Power	Maxim Power Consumption	1170W/m2
	Power	Ave. Power Consumption	470W/m2
	Controller	Frame Frequency	60HZ
		Refresh Rate	≥ 380HZ
		Brightness Adjustment	256 levels automatic
		Input Source Support	Composite, S-Video, Component, VGA, DVI, HDMI, SDI, HD_SDI
		Control Mode	Synchronization with PC
		Control Distance	CAT Cable: ≤ 100m; Multi-mode Fiber: ≤ 500m; Single-mode Fiber: ≤ 15km
	Reliability	Operating Temperature	-20-- +50
		Operating Humidity	10 - 90% RH
		Operating Life Span	100, 000 Hours
		MTBF	10, 000 Hours
		Protection Ratings	IP65(Front side), IP43(Back side)
		Blind Spot Rate	< 0.000
