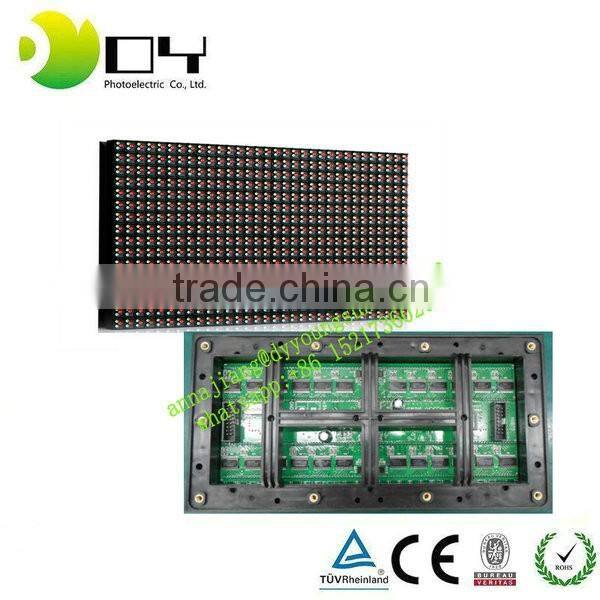

CE ROHS HIGH QUALITY P8 OUTDOOR ADVERTISING LED SCREEN DIP P8 OUTDOOR LED DISPLAY MODULE
specifications 1)High brightness
2)Stable capability
3)China famous trademark
4).The applications for Multi Line Displays are endless.
5).Multi Line LED Electronic Displays are easy to use and can be up-dated quickly and with no technical expertise
6).Colour Options are: RED, GREEN, YELLOW, or TRI-COLOUR, blue and white are also available.
7).Various speed and Characters :The signs can display most different Characters and Graphic Symbols.
8).The signs can run at variable Speeds, and have various display features including Bold, Run Left/Right etc.
Parameter
1 |
Pixel Pitch |
8mm |
2 |
Density per sqm |
15625 pixel |
3 |
Pixel configuration |
1R1G1B |
4 |
LED package |
DIP 346 |
5 |
Module resolution |
32 dots*16 dots |
6 |
Module size |
256mm*128mm |
7 |
Whiteness brightness |
≥5000nits |
8 |
Grey Scale/Color |
Display colors≥16.7m |
9 |
Optimum Viewing Distance |
10m |
10 |
Driving method |
1/4 Scan ,Constant Current |
11 |
View Angle |
(H) 140°(V)/ 120° |
12 |
Frame frequency |
60 Hz |
13 |
Refresh Rate |
400 Hz |
14 |
Max power |
600W/sqm |
15 |
Average power |
350W/sqm |
16 |
Protection classification |
IP65 front/IP54 rear |
17 |
Cabinet Weight |
55 Kg |
18 |
Install mode |
Wall mount, hung and stand structure |
19 |
Cabinet Material |
Iron/Aluminum |
20 |
Working voltage |
AC 110/220v |
21 |
Control method |
Synchronization or Asynchronization |
22 |
Malfunction dot rate |
Less than 0.0001 |
23 |
Working temperature |
-20~60°C |
24 |
Working Humidity |
10%-95% |
25 |
Lifetime |
100,000 hours |
26 |
MTBF |
≥ 10000 hours |
27 |
Whole display flatness |
less than 1mm juncture |
28 |
Transmission distance |
LAN cable ≤ 100m,optic fiber transmission,MMF ≤500m, SMF ≤15km |

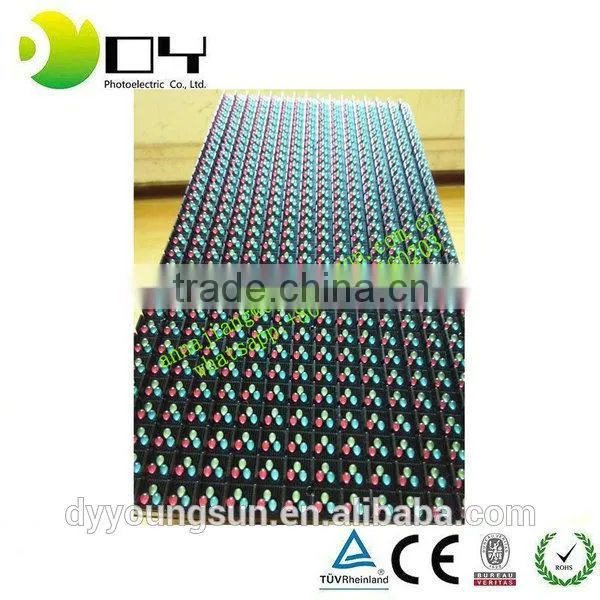

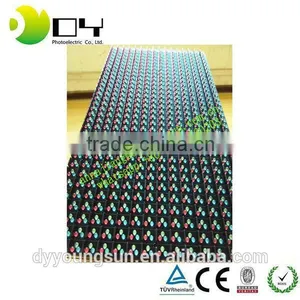

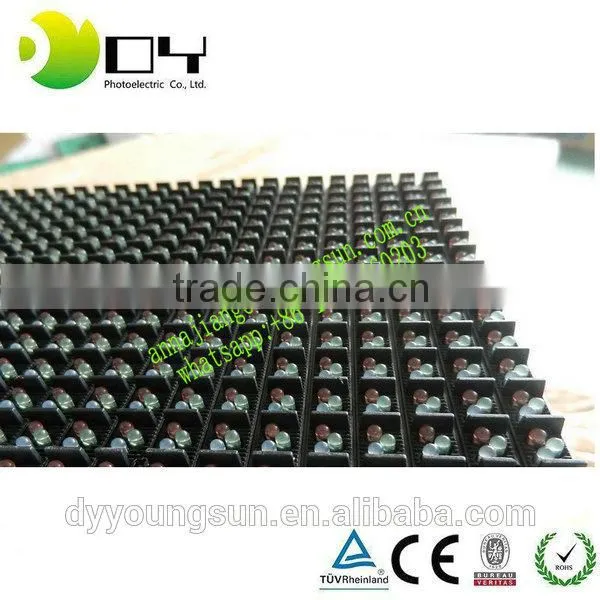

Pictures showing

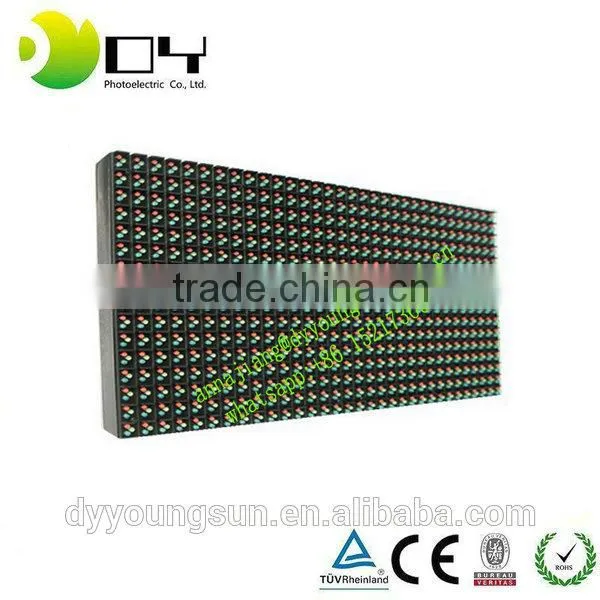

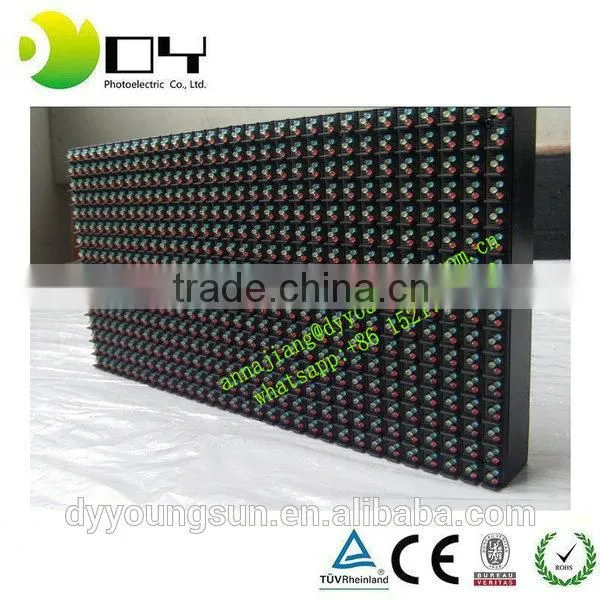

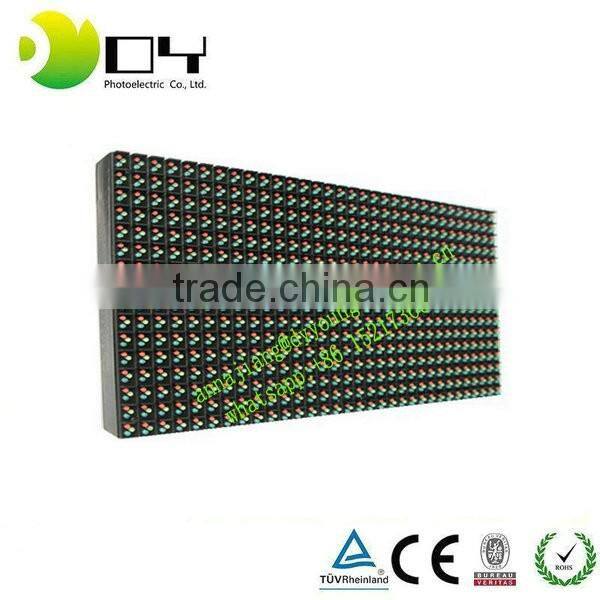

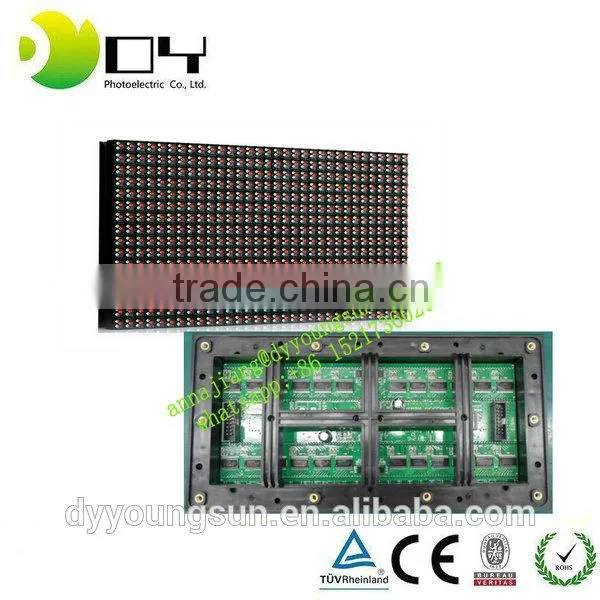

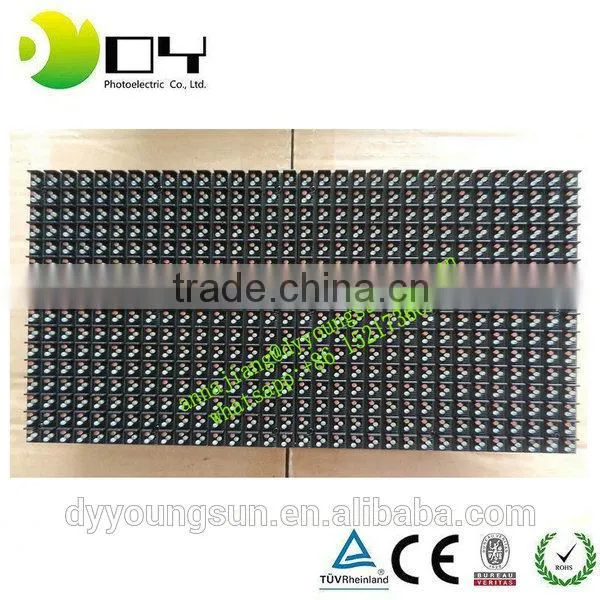

Led Display Module Characteristics
1. Ultra-thin design: very thin and light-low weight-bearing requirements. The cabinet using the latest design concept, make the it to reduce the weight mostly.
2. Ultra-thin design, the overall thickness of the box only 90mm, 50mm thinner than conventional cabinet which make the installation work more convenient.
3. The light transperant rate: 15%, and very uniformity.
4. Low wind-drag: with hole on the surface, wind drag will reduce to the lowest.
5. Energy saving: as the wind can pass through its bady, so don’t need cooling system. more than 40% energy saving over conventional display.
6. Compatibility: it is compatible to all kinds of weather condition with its dust-proof, fully sealed design feature.
Outdoor LED Display series :
1.Automatic brightness control,super processing ability,strong colour restoration.
2.Support various interfaces and signal sources.
3.Advanced digital control technology, excellent effect.
4.High brightness,even in direct,full-on sunlight to ensure you attract more audience to get short ROI of your full color outdoor led display screen's investment.
5.Antiseptic and durable, can be used outdoor in all weather.
LED module has easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display system.
With full aluminum alloy structure for light weight and waterproof advantages, HJY outdoor LED display is an perfect external multimedia LED display system designed for changeable and adverse outdoor environment.
Indoor LED Display series : The indoor LED display uses highquality LED, which has high efficiency luminescence,decreased attenuation of brightness,high stability and reliability. Super uniformity in color. Lowbudget, high pixel density,more vivid and stable pictures(No Flickering). The ultraslim and ultralight weight structure of indoor full color LED display,increased design opportunities and lower transportation costs. SMD technology takes super wide viewing angle for the LED display; better color performance,higher contrast ratio and higher refresh rate. The super thin rental indoorLED display features low weight,special rigging system for simplified service,hassle-free mounting, easy configuration and maintenance,and several other enhancements that are unmatched in the industry.

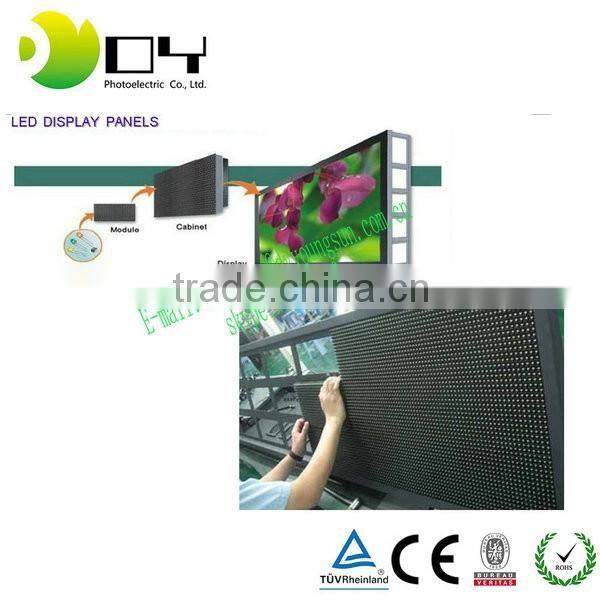

Led Display Module/Screen Development
Led Display Module/Screen Application
Notes:
1.The unit price depends on the quantity, we can offer you at a competitive price.
2. Your inquiry related to our products or prices will be replied in 24hrs.
3 .Well-trained and experienced staffs to answer all your enquires in fluent English
4. OEM&ODM, any your customized lightings we can help you to design and put into product.
5. Distributorship are offered for your unique design and some our current models
6.Protection of your sales area, ideas of design and all your private information

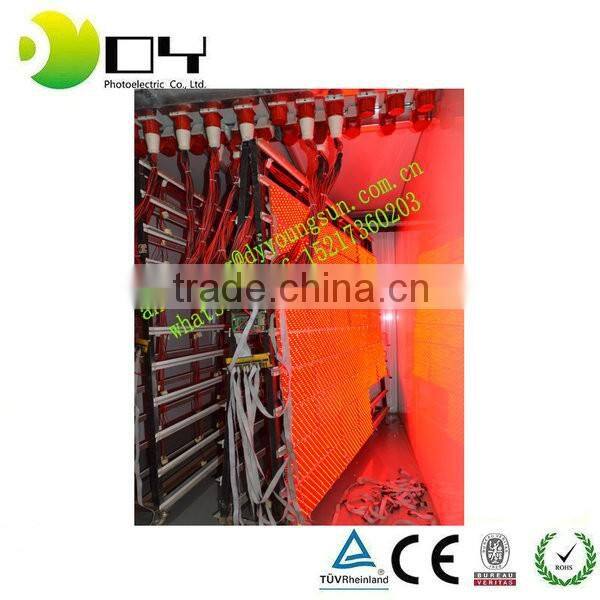

Before delivering the products ,we need to make sure the buring test almost 24 hours to be sure quality of our led display module

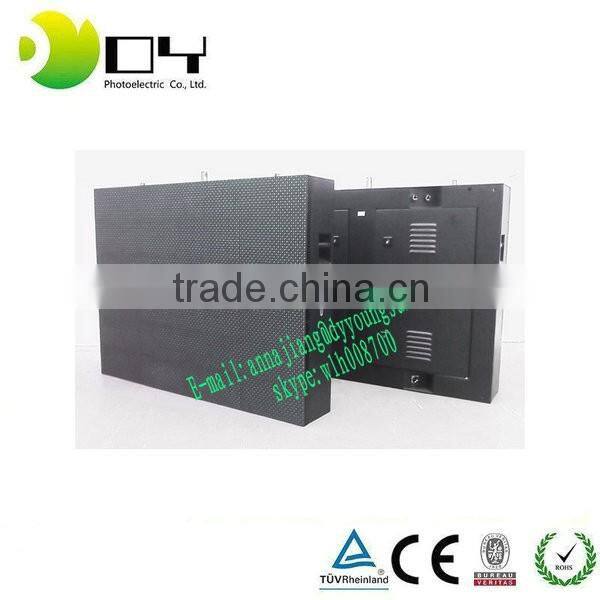

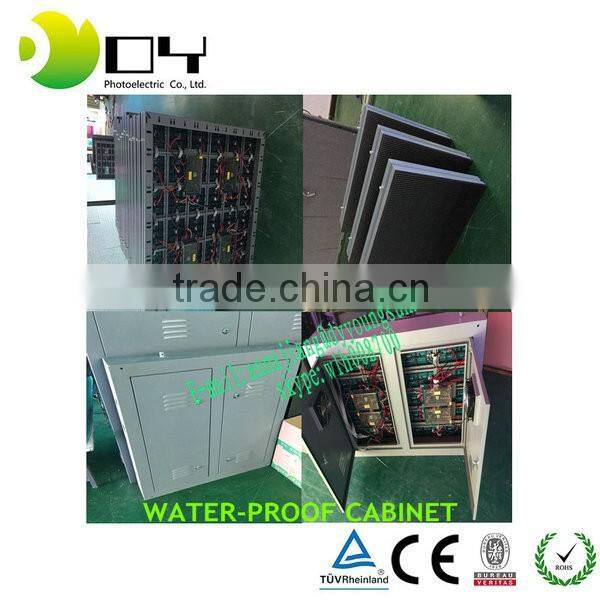

Led Display Screen Cabinet
Passing Certification With Strict Inspection
Packaging
Shipping & Delivery & Payment for Led Display Module
Our Service
1.Rapid Response on all inquiry at 24h/d
2.Reasonable Price
3.Fast shipping
4.Professional inspect before shipment
5.Consiederate after-sale service
Advantages of our factory 1.Two factories in Shipai Town, Dongguan city
2.More than 400 professional staffs
3.Full air condition and dust free workshop
4.CE, RoHS, Fcc, ISO9001:2008
5.100% 24 hours aging test before shipping
6.Rich experience in LED products with more than 10 years
7.Power cable and flat cable are free
8.Enough stock, ship quickly
Company Information
For more detailed information ,please kindly contact Anna
