Help CenterAdvertising Screen Outdoor Full Color Led Martix p6 Smd Led Module Display Screen
Related Products
-
Wholesale Popular Indoor P6 SMD3528 3in1 FULL COLOR DISPLAY SCREENUS$ 12 - 14MOQ: 100 Pieces -
Outdoor LED Full Color P16 LED Display ScreenUS$ 880 - 1,400MOQ: 1 Square Meter
-
New Outdoor P20 Led Display Module 12vNegotiableMOQ: 1 Piece
-
2015 Competitive Price Good Quality Good Reputation P10 Led Display ScreenUS$ 800 - 1,300MOQ: 1 Square Meter
-
2015 Lowest Good Quality Good Reputation P10 Led Display ScreenUS$ 800 - 1,300MOQ: 1 Square Meter
p6led display module
specifications 1)High brightness
2)Stable capability
3)China famous trademark
4).The applications for Multi Line Displays are endless.
5).Multi Line LED Electronic Displays are easy to use and can be up-dated quickly and with no technical expertise
6).Colour Options are: RED, GREEN, YELLOW, or TRI-COLOUR, blue and white are also available.
7).Various speed and Characters :The signs can display most different Characters and Graphic Symbols.
8).The signs can run at variable Speeds, and have various display features including Bold, Run Left/Right etc.
Parameter
| Items | Advertising Screen outdoor full color led martix p6 smd led module display screen |
| Pixel Pitch | 6mm |
| Module Size | 192*192mm |
| Pixel Density | 27777dots/m2 |
|
Pixel Configuration |
1R1G1B |
|
LED Encapsulation |
3535 |
| Module Resolution | 32*32 |
| Module Power Consumption | 28.5W |
|
Optimum Viewing Distance |
>6m |
|
Optimum Viewing Angle |
105±8° (H)/105±8° (V) |
| Max. Power Consumption | 774W/m2 |
| Cabinet Size | 768*768 mm |
| Cabinet Resolution | 128*128 |
| Screen Weight | 18.5kg |
| Driving Mode | 1/8, constant current |
| Brightnessofwhite balance | ≥6000 cd/m2 |
| Frame Frequency | ≥60Hz/s |
| Refresh Rate | ≥400Hz,max2000Hz |
|
Operating Environment |
Temperature, -20℃~+50℃; Humidity, 10%~90%RH |
| Ingress Protection | IP65/43 |
| Working Voltage | AC110V/220V ±10% |
| GreyScale/Color | Displaying colors≥16.7M(synchronized) |
|
Brightness Adjustment |
256 levels of each color (manually), 8 levels of each color (automatically) |
| Input Signal | RF, S-Video, RGB, RGBHV, YUV, YC & Composition, etc. |
| Control System | Controller card + DVI display card + function card (optional), etc. |
|
Control Distance |
Cat5 cable, 100m; Multimode fiber, 500m; Monomode fiber, 10km |
|
System Operating Platform |
Windows 98 / 2000 / XP / Vista / 7, with a friendly User Interface, etc. |
| Aspect Ratio | 4:3 (16:9 optional) |
|
Defective Dot Rate |
<0.0001 |
| MTBF | ≥10000 hours |
| Lifespan | 100,000 hours (50% brightness) |

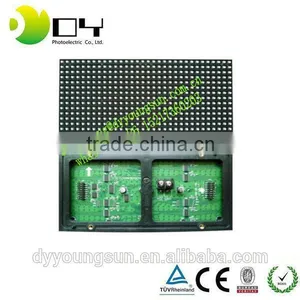

Pictures showing
Led Display Module Characteristics
1. The light transperant rate: 15%, and very uniformity.
2. Low wind-drag: with hole on the surface, wind drag will reduce to the lowest.
3. Energy saving: as the wind can pass through its bady, so don’t need cooling system. more than 40% energy saving over conventional display.
4. Compatibility: it is compatible to all kinds of weather condition with its dust-proof, fully sealed design feature.

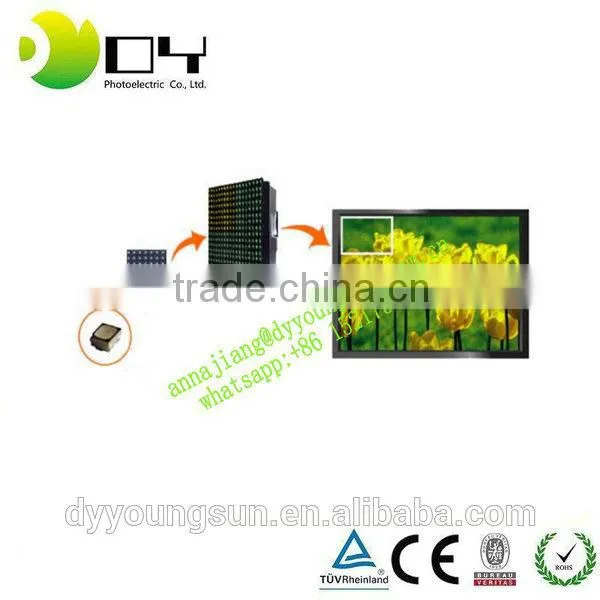

Led Display Module/Screen Development

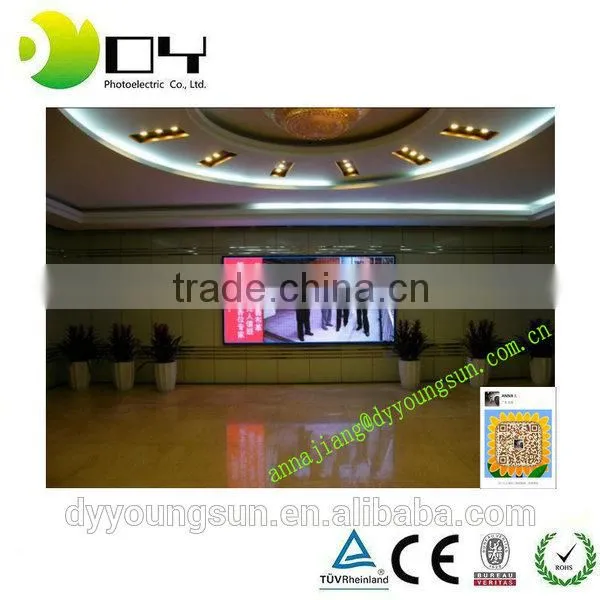

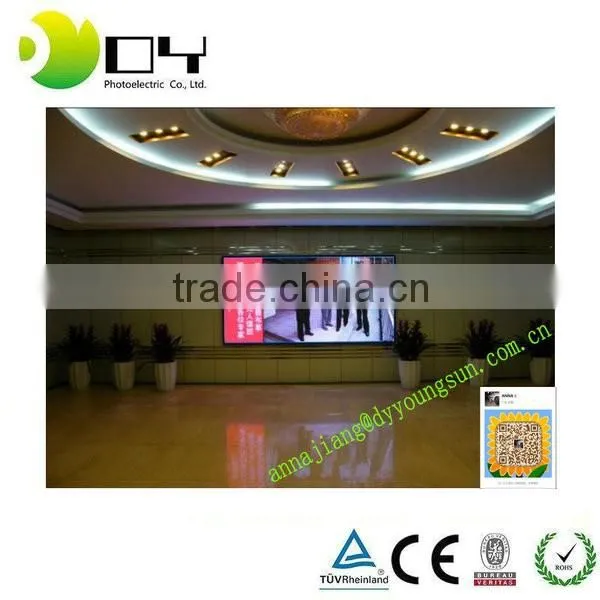

Led Display Module/Screen Application

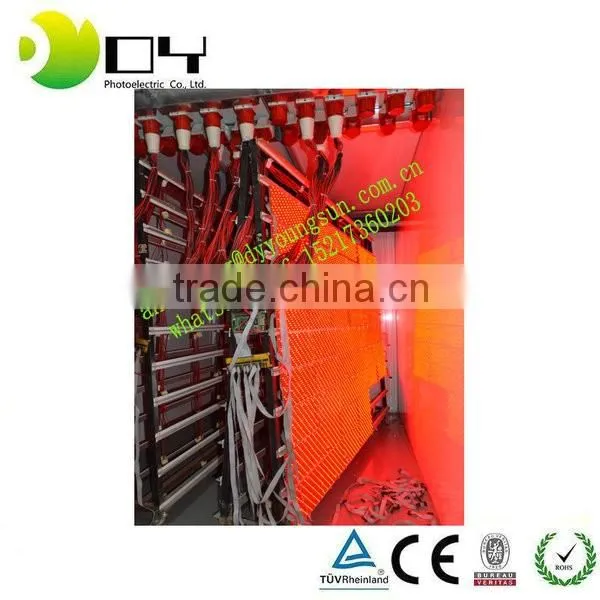

Before delivering the products ,we need to make sure the buring test almost 24 hours to be sure quality of our led display module

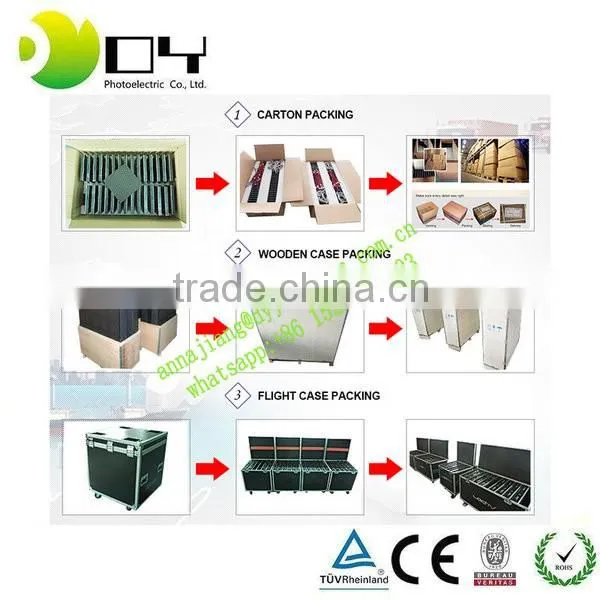

Led Display Module Packaging

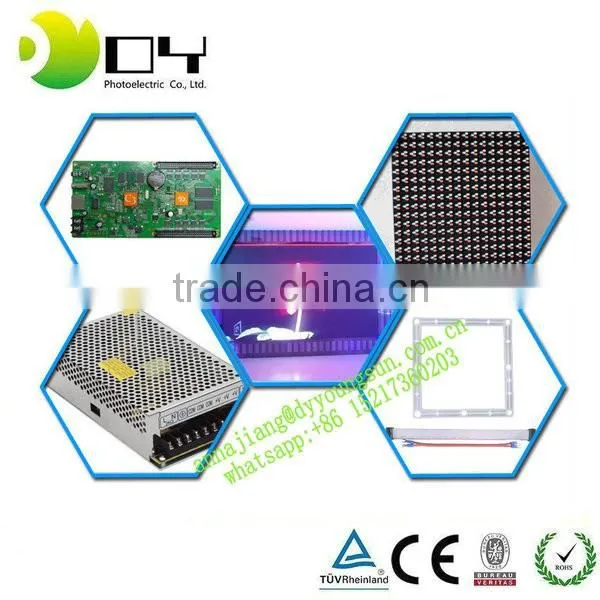

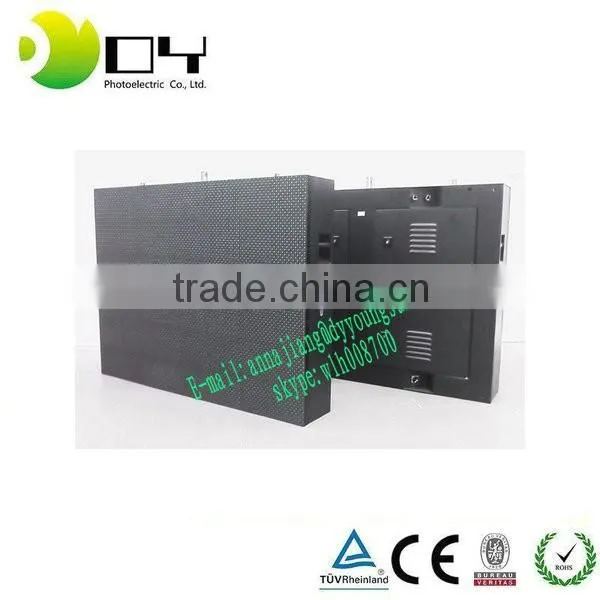

Led Display Screen Cabinet

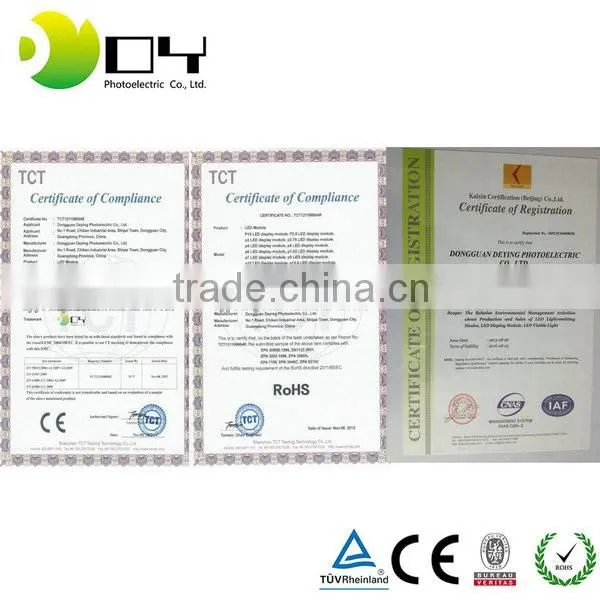

Passing Certification With Strict Inspection
Shipping & Delivery & Payment for Led Display Module
Our Service & Advantages of our factory
1.Rapid Response on all inquiry at 24h/d
2.Reasonable Price& Fast shipping
3.Professional inspect before shipment
4.Consiederate after-sale service
5.More than 400 professional staffs
6.CE, RoHS, Fcc, ISO9001:2008
7.Rich experince in LED products with more than 10 years
Company Information
For More Detailed Information ,Please Kindly Contact Anna
