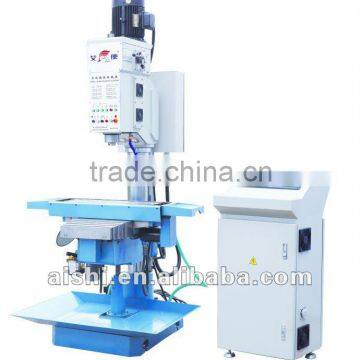

ZXK7540 CNC Drilling and Milling Machine,gear drive drilling and milling machine

Name: ZXK7540 CNC Drilling and Milling Machine,gear drive drilling and milling machine
Brand: Aishi
Availability: InStock

FOB Price

USD $1,000 - $10,000 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port shanghai / ningbo

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Place of Origin	Zhejiang, China	Brand Name	Aishi
Model Number	ZXK7540

Product Description

Specifications

Aishi machine is perfect for mass producing and training purpuses gear drive drilling and milling machine

Model : ZXK7540 Vertical CNC Drilling & Milling Machine

· An electromechanical integration design ensures the compact structure and esthetic appearance;

· Uses in the high speed hot extrusion,drilling, hole slash, reaming, tapping and milling;

· To feed transmission system uses the ball bearing guid screw, the precision stability is good;

· This machine has three axis numerical control system,various axes running rate is quick, can realizw the stepless change,the pinpointingm, through the drill hole ,the milling, working procedures and milling end surface and so on processes each kind of components;

·Table elevation of the workbench is conducted by an electric-driven mechanism,There are two optional means of elevation manual and automatic.

ZXK7540 CNC Drilling and Milling Machine,gear drive drilling and milling machine

Item	Parameter
Max. Drilling capacity	Φ40mm
Max. end milling capacity	Φ25mm
Max. face milling capacity	Φ80mm
spindle taper	MT4
Max. Travel of spindle	200mm
Max.distance from spindle nose to worktable	445mm
Spindle speed range	67-1780r/min
Spindle speed steps	12
Spindle positioning accuracy	0.025mm
Spindle repeat positioning accuracy	0.015mm
Max. travel of worktable	500mm×290mm×360mm
Dimension of worktable(L×W)	800mm×250mm
Max.table load	100kg
Main motor	2.2/2.8 KW
Rapid feed	5000mm/min
Machine dimension(L×W×H)	1180×1100×2400 mm
Net weight	1000kg

Materials and specifications are subject to change without notice.
