Specifications

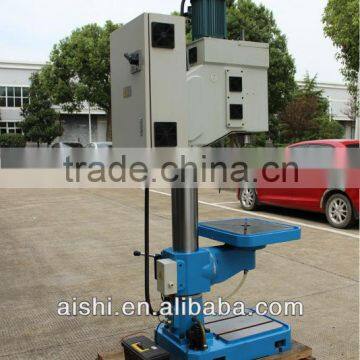

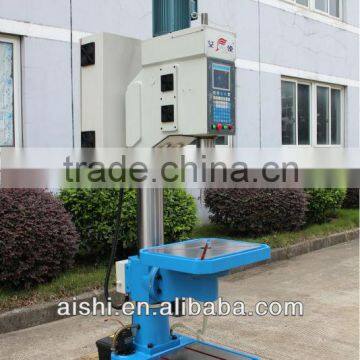

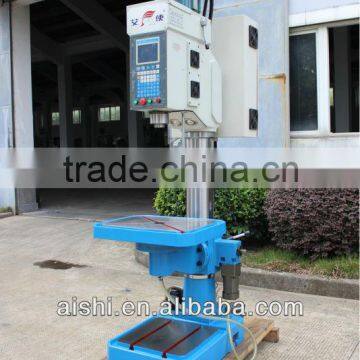

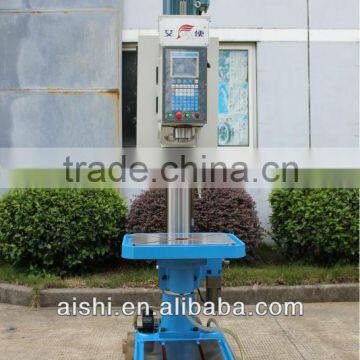

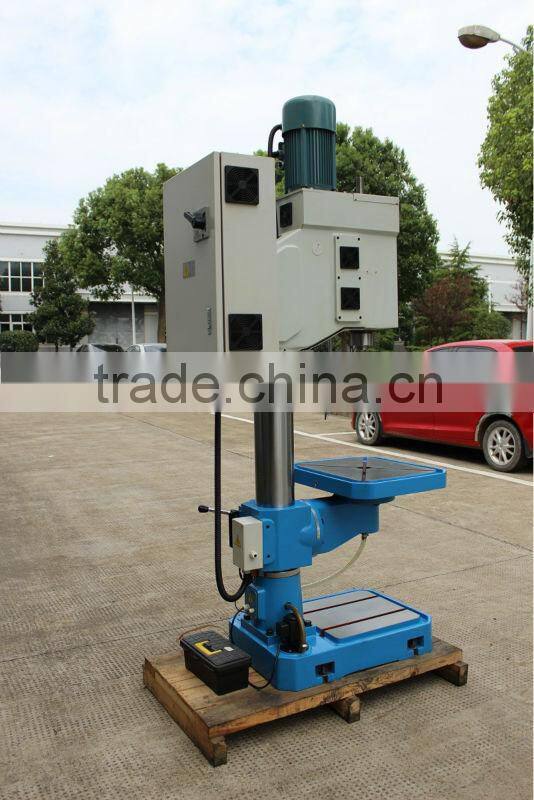

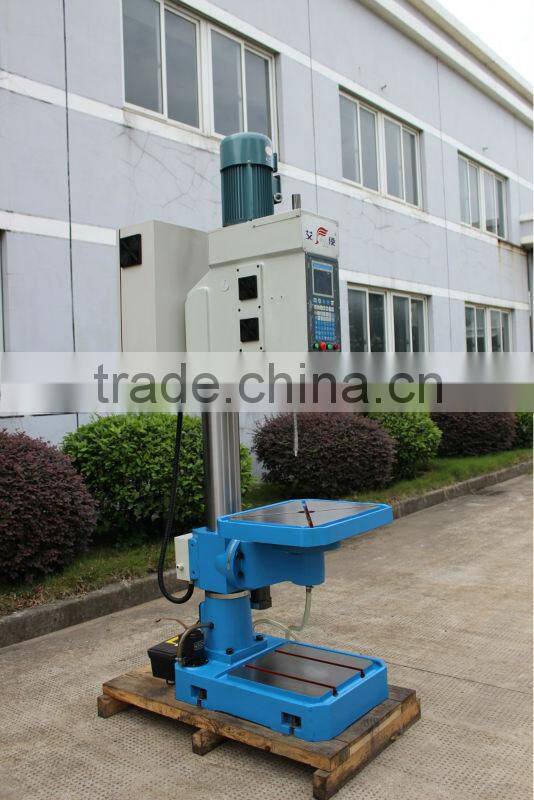

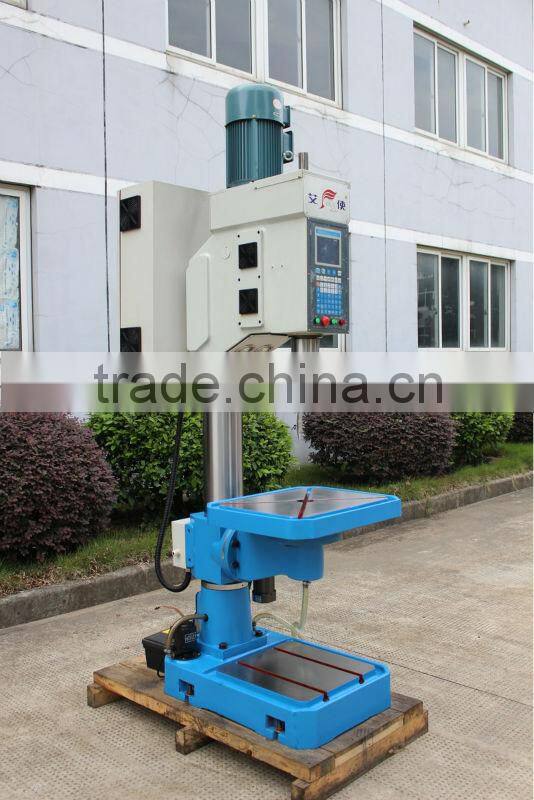

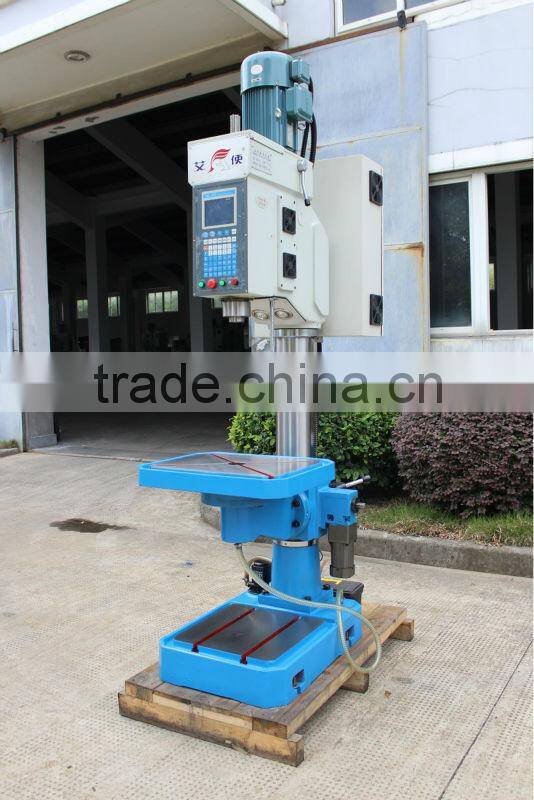

Aishi machine is perfect for mass producing and training purpuses cnc drilling machineAISHI - ZK5016A CNC drilling machine
· An electromechanical integration design ensures the cnc drilling machine compact structure and esthetic appearance
· ZK5016A,cnc drilling machine is used in the high speed hot extrusion,drilling,enlarging,reaming and threading;
· The feed for cnc drilling machine spindle transmission system uses the high accuracy ball bearing guide screw,the localization is precise,the precision stability is good,specially using in the blind hole decides the deep precision high work piece;
· Interlock devices are adopted for the workbench elecation locking,which is convenient and effective;
· The feeding is realized by means of CNC system,capable of realizing a cycle comprising fast forward→ fine forware→ fast backward(chip removal),the efficiency prominently improved. In addition,an orders are designed specifically for drilling operation,which simplifies the operation and improves the effectiveness ;
· The elevation of the workbench is conducted by an electric-driven mechanism.There are two optional means of elevation:manual and automatic. Besides,the workbench can be moved and rotate in various directions,providing the maximum opportunities to process the parts of different industries.
| MODEL | ZK5016A |
| CAPACITY | |
| Drilling capacity(max.) | Ø16mm |
| ACCURACY | |
| Repeating accuracy | 0.015mm |
| Positioning accuracy | 0.025mm |
| SPINDLE | |
| Spindle taper | MT4 |
| Spindle speed | 400-3000rpm |
| Spindle speed steps | Stepless |
| Distance spindle-column | 350mm |
| SPINDLE HOLEING FIXTURE | |
| Z-axis travel | 200mm |
| Rate of feed/Torque motor Z-axis | 0-5000mm/min |
| COLUMN | |
| Column diameter | Ø156mm |
| TABLE | |
| Middle Table speed | 355mm/min |
| Table (L×W) | 520×400mm |
| Table load | 100kg |
| T-slot | 14mm/2 |
| Distance spindle-middle table(max.) | 515mm |
| Distance spindle-base table(max.) | 1130mm |
| ELECTRIC SUPPLY | |
| Motor | 4kW |
| Motor coolant pump | 40W |
| DIMENSION AND WEIGHT | |
| Overall dimension (L×W×H) | 1060×600×2290mm |
| Packing size (L×W×H) | 800×1240×2150mm |
| Weight | 700kg |
