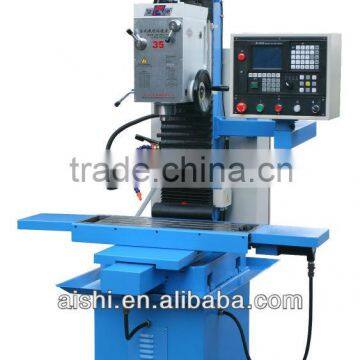

Aishi machine is perfect for mass producing and training purpuses universal milling machineCNC Model : ZXK7035 cnc drilling and milling machine
·An electromechanical integration design ensures the compact structure and esthetic appearance;
·Main drive system using high-intensity transmission gears, manual changes speed 6 levels, the highest rotational speed is 1160r/min, a wide range of applications, Is suitable in each material components low speed great torque drill hole; Simultaneously has the semi-finishing milling function;
·The three axle guide rail uses pastes models the guide rail, the guide rail resistance to wear is good, the movement does not have crawling steadily; To feed transmission system uses the ball bearing guide screw, the precision stability is good;
·ZXK7035 universal milling machine has three axis numerical control system, various axes running rate is quick, can realize the stepless change, the pinpointing, through the drill hole, the milling, working procedures and milling end surface and so on processes each kind of components;
ZXK7035 drilling and milling machine,cnc milling machine, universal milling machine
Item |
Parameter |
| Max. Drilling dia. | Ø35mm |
| Max. end milling dia. | Ø20mm |
| Max. face milling dia. | Ø60mm |
| Spindle to feed resisting force | 9kN |
| Spindle taper | MT4 |
| Max. travel of Spindle | 480mm |
| Max. distance from spindle nose to worktable | 560mm |
| Spindle speed and grades | 60~1160r/min 6 Steps |
| Spindle positioning accuracy | 0.05mm |
| Spindle repeat positioning accuracy | 0.03mm |
| Max. travel of worktable | 450×220 |
| Dimension of worktable(L×W) | 800×240mm |
| Max. table load | 80kg |
| Main motor | 2.2kW |
| Rapid feed | 5000mm/min |
| Machine dimension(L×W×H) | 1228×1115×2150 |
| Net weight | 500kg |
Pictures taken in the area of the factory
