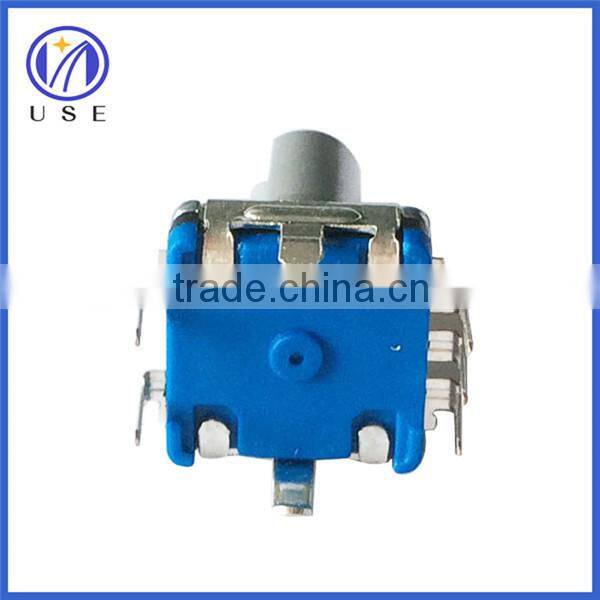

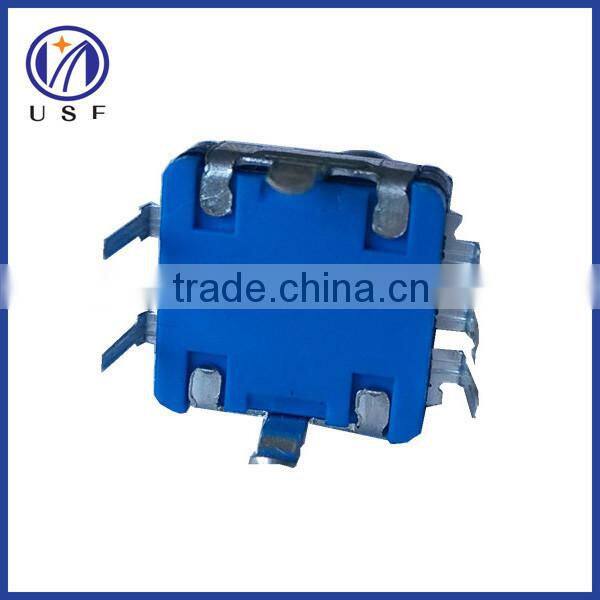

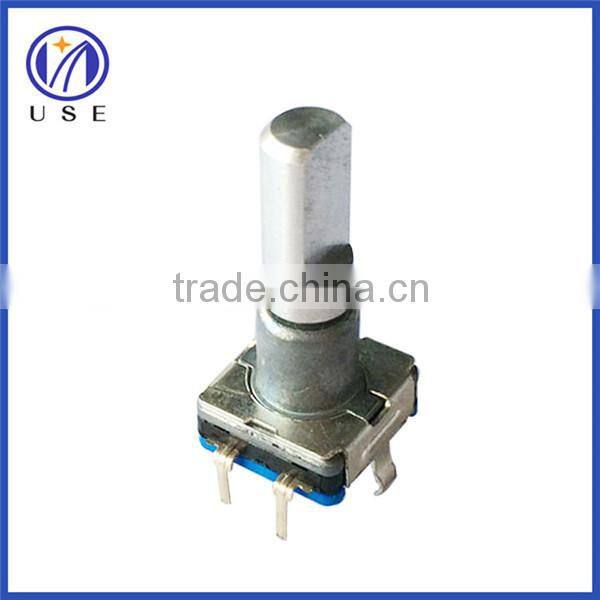

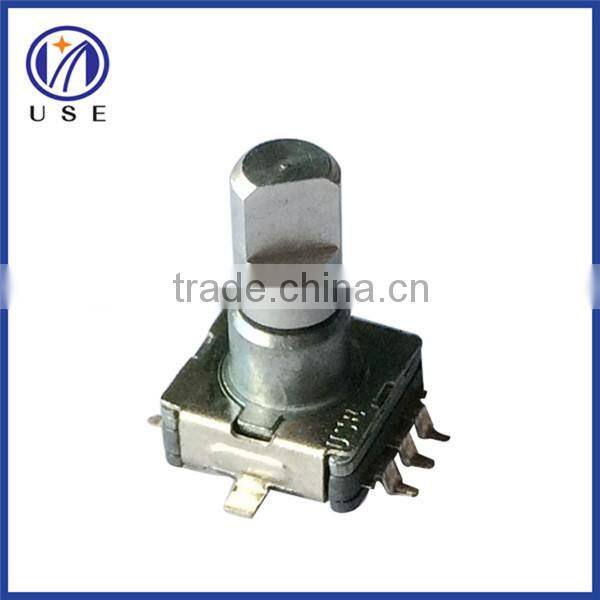

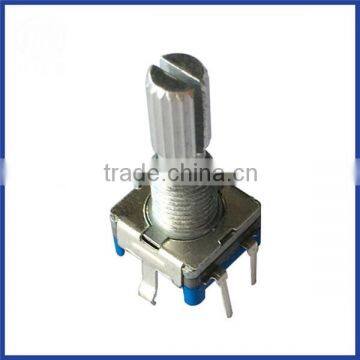

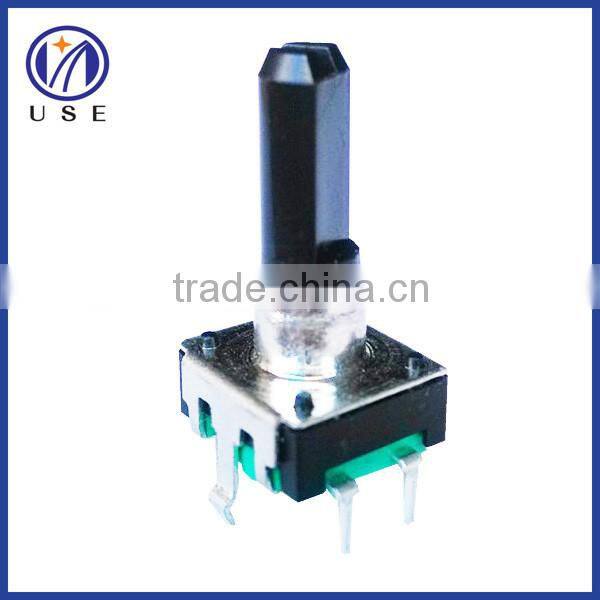

Price 11mm rotary encoder motor encoder
| EC11 Series Specification | |
| Mechnical Characteristics | |
| Total Rotational Angle | 360° |
| Rotantional Torque | 20≈200gf.cm |
| Click pull-out Torque | 20≈150gf.cm |
| Number of Click |
20 clicks Step Angle:18°±2° 30 clicks Step Angle:12°±2° |
| Bushing-nut tighting strength | 7.0kgf.cm Min |
| Shaft play in rotational wobble | 5°Max |
| Electrical Characteristics | |
| Power rated | DC 5V,A,B lead 5mA Max, C lead 10mA Max |
| Output signal | A,B 2 signals |
| Resolution |
20 pulses/360° 15 pulses/360° |
| Insulation resistance | 100MΩMin at DC 250V |
| Dielectric | 1 minute at AC 300V |
| Endurance characteristics | |
| Rotational life | 30,000±200 cycles ≤100gf.cm |
| Storage temperature range | -40℃≈+85℃ |
| Operating temperature range | -30℃≈+80℃ |
| Soldering characteristic |
dipping in soldering≤206℃±5°,within 3S solder by hand:≤300℃±5°,within 3S |
( Ultra-small size precision encoders,incremental and absolute type is available. Apply to handheld walkie-talkie,a small intercom system center,car stereo,etc.)
Packaging: 250 pcs in a polyfoam, 2000 pcs in a carton
Shippment: By Air, express or by sea.
1>Professinal manufacture and specilizing in rotary encoder and potentiometer for 13 years.
2> ISO9001:2008 manufactory,custom as your demand,we are sure to make a great manufacturing for you.
3>Quick and exact lead time.
4>We have QC team for every procedure and 100% satisfaction guaranteed.
5>OEM and ODM is welcome
6>Any questions and requirements ,we will reply you within 24 hours.
