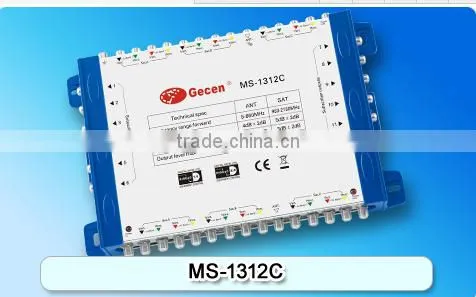

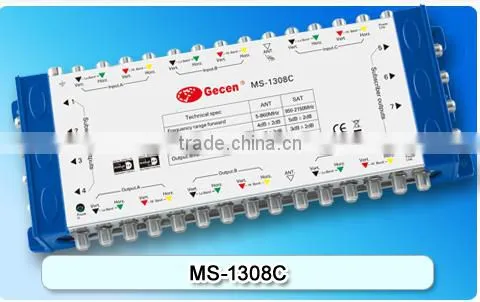

Satellite TV Cascadable Multiswitch of 13 in 8out/24/32OUT

Zhuhai Gecen Technology Co., Ltd.

US$ 40 - 100 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

MS-1332C

Payment & Shipping

Payment Methods:

Port of Shipment:

ZHUHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number MS-1332C

FTA(Free To Air) Yes

Type Digital

High Definition Yes

Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient
Excellent quality component, professional amplification design and low loss
External 20V 2000mA DC power offering more stable operation
13/18V 0/22KHz DiSEqC 1.0/2.0 supplied by satellite receiver through coaxial cable to switch corresponding port
Capable of connecting twelve SATV signals, one ANT signal or FM broadcast simultaneously
Twelve SATV signals switched through 13/18V 0/22KHz DiSEqC 1.0/2.0 from satellite receiver
Thirteen input signals cascadable and distributed into eight subscribers to use simultaneously and no mutual interference
Red LED for power, Yellow LED for power link
Supports multi-satellite multi-receiver and cascadable usage

Item	Specification	Item	Specification
Frequency Range ANT	5-860(MHz)	Return Loss SAT Inputs	10(dB)
Frequency Range SAT	950-2150 (MHz)	Return Loss ANT Input	12(dB)
Insertion Loss ANT	5(dB)	Return Loss Outputs	8(dB)
Insertion Loss SAT	4(dB)	Output Level ANT	88(dBuV)
Insertion Loss Trunk	5(dB)	Output Level SAT	100(dBuV)
Isolation In-In SAT	25(dB)	Normal Working Voltage	12-20(V)
Isolation In-In SAT/ANT	25(dB)	DC Power Consumption	50(mA)
Isolation Between Outputs	25(dB)	Supply Voltage(VDC)	20V(±1)3000mA
Switching Isolation SAT Inputs	28(dB)	Temperature Range	-20℃-60℃
Cross Isolation	25(dB)	Impedance(all ports)	75(Ω)
