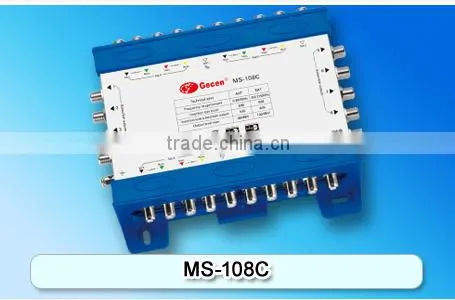

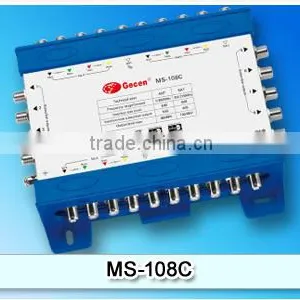

Cascadable Multiswitch of 10 in 8 Out

Cascadable Multiswitch of 10 in 8 Out thumbnail-1
Cascadable Multiswitch of 10 in 8 Out thumbnail-2
Cascadable Multiswitch of 10 in 8 Out thumbnail-3
Cascadable Multiswitch of 10 in 8 Out thumbnail-4
Cascadable Multiswitch of 10 in 8 Out thumbnail-5
Cascadable Multiswitch of 10 in 8 Out thumbnail-6
Cascadable Multiswitch of 10 in 8 Out photo-1
Cascadable Multiswitch of 10 in 8 Out photo-2
Cascadable Multiswitch of 10 in 8 Out photo-3
Cascadable Multiswitch of 10 in 8 Out photo-4
Cascadable Multiswitch of 10 in 8 Out photo-5
Cascadable Multiswitch of 10 in 8 Out photo-6
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
MS-1032C
Contact Supplier Request Quote Chat Now
Zhuhai Gecen Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhuhai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM
Model Number MS-1032C
Cascadable Multiswitch of 10 in 8 out

Product Name :Cascadable Multiswitch of 10 in 32

Model :MS-1032C

Packing Information

Giftbox Size :mm

Carton Size :cm

Features:

  • C means Cascade type, E means End type.
  • Power supplied by satellite receiver and external power supply.
  • 9 SAT inputs + 1 ANT input, 32 output. Cascade type
  • support 9SAT + 1ANT connect with next stage.
  • SAT IF selected by 13/18V, 0-22KHz and DiSEqC 1.0/2.0 commands.



Specifications



Item





Specification





Item





Specification





Frequency Range ANT



5-860(MHz)

Return Loss SAT Inputs

10(dB)



Frequency Range SAT



950-2150(MHz)

Return Loss ANT Input

12(dB)



Insertion Loss ANT



6(dB)

Return Loss Outputs

8(dB)



Insertion Loss SAT



7(dB)

Output Level ANT

88(dBuV)

Insertion Loss Trunk(for cascadable type)

ANT.: 7(dB) SAT.: 9(dB)

Output Level SAT

100(dBuV)

Isolation In-In SAT

25(dB)

Normal Working Voltage

12-20(V)

Isolation In-In SAT/ANT

25(dB)

DC Power Consumption

200(mA)

Isolation Between Outputs

25(dB)

Supply Voltage(VDC)

20V(±1)2000mA

Switching Isolation SAT Inputs

28(dB)

Temperature Range

-20℃-60℃

Cross Isolation(for cascadable type)

25(dB)

Impedance(all ports)

75(Ω)



Switching Voltage,Signal : 13/18V ,0/22KHz,DiSEqC 1.0,2.0
Connectors:“F” type female
