Cascadable /End Type Satellite Multiswitch of 17 in 32 Out

Cascadable /End Type Satellite Multiswitch of 17 in 32 Out thumbnail-1
Cascadable /End Type Satellite Multiswitch of 17 in 32 Out thumbnail-2
Cascadable /End Type Satellite Multiswitch of 17 in 32 Out photo-1
Cascadable /End Type Satellite Multiswitch of 17 in 32 Out photo-2
US$ 1 - 130 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
MS-1732C
Contact Supplier Request Quote Chat Now
Zhuhai Gecen Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhuhai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM
Model Number MS-1732C

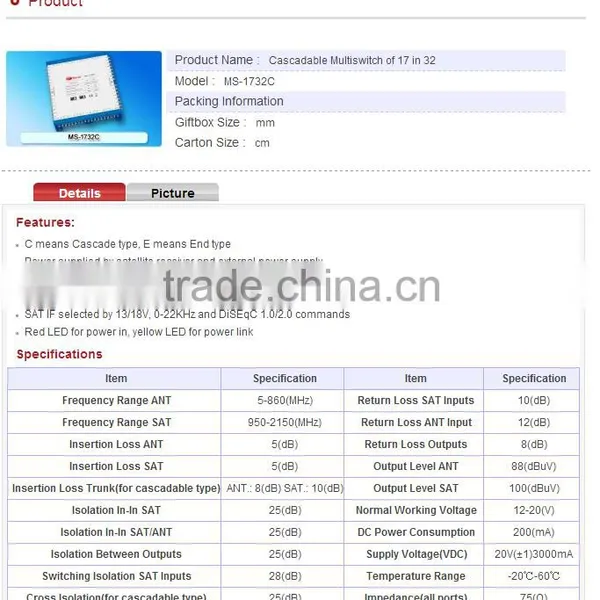

Cascadable /End Type Satellite Multiswitch of 17 in 32 out

Features:

  • C means Cascade type, E means End type
  • Power supplied by satellite receiver and external power supply
  • 16 SAT inputs + 1 ANT input, 32 output. Cascade type supports
  • 16 SAT + 1ANT connect with next stage
  • SAT IF selected by 13/18V, 0-22KHz and DiSEqC 1.0/2.0 commands
  • Red LED for power in, yellow LED for power link



Specifications



Item





Specification





Item





Specification





Frequency Range ANT



5-860(MHz)

Return Loss SAT Inputs

10(dB)



Frequency Range SAT



950-2150(MHz)

Return Loss ANT Input

12(dB)



Insertion Loss ANT



5(dB)

Return Loss Outputs

8(dB)



Insertion Loss SAT



5(dB)

Output Level ANT

88(dBuV)

Insertion Loss Trunk(for cascadable type)

ANT.: 8(dB) SAT.: 10(dB)

Output Level SAT

100(dBuV)

Isolation In-In SAT

25(dB)

Normal Working Voltage

12-20(V)

Isolation In-In SAT/ANT

25(dB)

DC Power Consumption

200(mA)

Isolation Between Outputs

25(dB)

Supply Voltage(VDC)

20V(±1)3000mA

Switching Isolation SAT Inputs

28(dB)

Temperature Range

-20℃-60℃

Cross Isolation(for cascadable type)

25(dB)

Impedance(all ports)

75(Ω)

Cascadable /End Type Satellite Multiswitch of 17 in 32 outCascadable /End Type Satellite Multiswitch of 17 in 32 out
