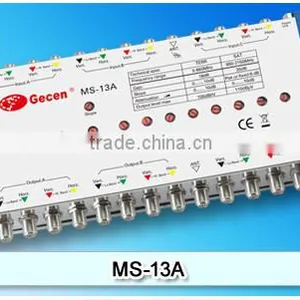

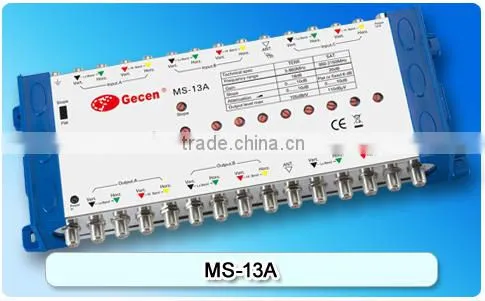

Help CenterCascadable 13 in Amplifier
US$ 50 - 65
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
MS-13A
Payment & Shipping
Payment Methods:
Port of Shipment:
zhuhai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cascadable Multiswitch of 10 in 8US$ 50 - 60MOQ: 50 Pieces -
Cascadable Multiswitch of 5 in 32 OutUS$ 50 - 80MOQ: 100 Pieces
-
Satellite 4 in 4 MultiswitchUS$ 10 - 12MOQ: 1000 Pieces
-
Satellite 3 in 4 MultiswitchUS$ 6 - 8MOQ: 1000 Pieces
-
2X4satellite Cascade Multi SwitchUS$ 10 - 12MOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
OEM
Model Number
MS-13A
|
Product Name :Cascadable Amplifier Model :MS-13A Packing Information Giftbox Size :mm Carton Size :cm |
Features:
- Gain adjustable design
- Can compensate the loss in your distribution system
- External 20V, 3000mA DC power supply
- Red LED for power in, yellow LED for power link
Specifications
|
Item
|
Specification
|
Item
|
Specification
|
|
Frequency Range ANT
|
5-860(MHz) |
Output Level ANT
|
105(dBuV)
|
|
Frequency Range SAT
|
950-2150 (MHz) |
Output Level SAT |
110(dBuV) |
Gain SAT |
20(dB) |
Noise Figure |
6(dB) |
|
Gain ANT
|
18(dB) |
DC Power Consumption |
350(mA) |
|
Slope Control SAT
|
0/6(dB) selectable |
Supply Voltage(VDC) |
20V(±1)3000mA |
|
Slope Control ANT
|
0-10(dB) |
Temperature Range |
-20 ℃ -60 ℃ |
|
Return Loss
|
10(dB) |
Impedance(all ports) |
75(Ω) |
|
Gain Adjustable Range
|
0-10(dB) |
|
|
Connectors:“F”type female
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2011
Factory Size
5,000-10,000 square meters
Total Employees
301 - 500 People
