Home > Computer Products > Speaker & Sound Box > Wireless Speaker > Home Agile Modulator(CATV/TV Channel Selectable) GC-AV04

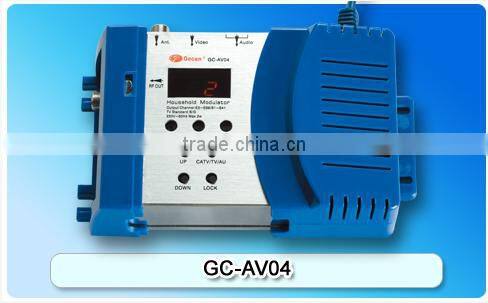

Home Agile Modulator(CATV/TV Channel Selectable) GC-AV04

Home Agile Modulator(CATV/TV Channel Selectable) GC-AV04 thumbnail-3

Home Agile Modulator(CATV/TV Channel Selectable) GC-AV04 thumbnail-4

Home Agile Modulator(CATV/TV Channel Selectable) GC-AV04 photo-1

Home Agile Modulator(CATV/TV Channel Selectable) GC-AV04 photo-2

Home Agile Modulator(CATV/TV Channel Selectable) GC-AV04 photo-3

Home Agile Modulator(CATV/TV Channel Selectable) GC-AV04 photo-4

US$ 10 - 11 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ODM

Model Number:

GD-AV04

Contact Supplier Request Quote Chat Now

Zhuhai Gecen Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ZHUHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ODM

Model Number GD-AV04

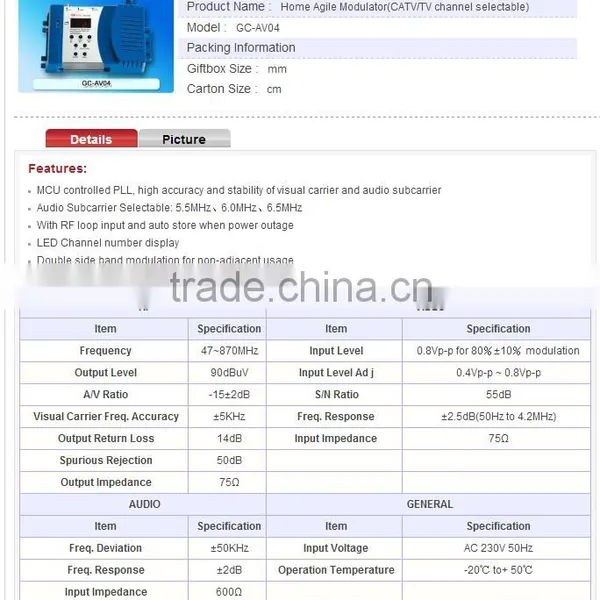

Product Name :Home Agile Modulator(CATV/TV channel selectable)

Model :GC-AV04

Packing Information

Giftbox Size :mm

Carton Size :cm

Features:

MCU controlled PLL, high accuracy and stability of visual carrier and audio subcarrier
Audio Subcarrier Selectable: 5.5MHz,6.0MHz,6.5MHz
With RF loop input and auto store when power outage
LED Channel number display
Double side band modulation for non-adjacent usage

Specifications

RF		VIDEO
Item	Specification	Item	Specification
Frequency	47~870MHz	Input Level	0.8Vp-p for 80%±10% modulation
Output Level	90dBuV	Input Level Ad j	0.4Vp-p ~ 0.8Vp-p
A/V Ratio	-15±2dB	S/N Ratio	55dB
Visual Carrier Freq. Accuracy	±5KHz	Freq. Response	±2.5dB(50Hz to 4.2MHz)
Output Return Loss	14dB	Input Impedance	75Ω
Spurious Rejection	50dB
Output Impedance	75Ω
AUDIO		GENERAL
Item	Specification	Item	Specification
Freq. Deviation	±50KHz	Input Voltage	AC 230V 50Hz
Freq. Response	±2dB	Operation Temperature	-20℃ to+ 50℃
Input Impedance	600Ω

Located in Zhuhai National Hi-Tech Industry Development Zone, we, Zhuhai Gecen Technology Co., Ltd, have been persisting in the development strategy of High Starting Point, High Technology, High Quality and High Efficient since founded. At present, we have our own leading core technology and the capability of sustainable research and development. Our turnover is increasing geometrically in recent years due to mature technology, very high quality products and strong market response ability. Moreover, our products are taking a large percentage in Middle East, Southeast Asia and Americas market rapidly which makes Gecen become one of the outstanding manufacturers in this field among the world. Nowadays Gecen this brand has become a well-known brand in SATV and CATV industry.
