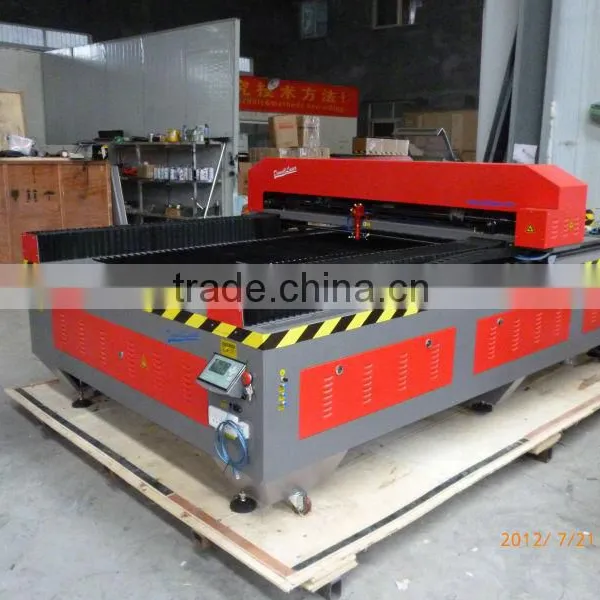

Fabric Laser Cutting Bed 1300*2500mm

Name: Fabric Laser Cutting Bed 1300*2500mm
Brand: DOWELL
SKU: 108459553

US$ 7,000 - 7,900 MOQ: 1 Set

Key Specifications

Condition:

New

Laser Type:

CO2

Applicable Material:

Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood

Jinan Dowell Photoelectricity Equipment Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Laser Type CO2

Applicable Material Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood

Cutting Thickness 0-30mm

Cutting Area 1300*2500mm

Cutting Speed 0-1000mm/s

CNC or Not Yes

Cooling Mode Water Cooling

Control Software DSP,coreldrew,auto-CAD

Graphic Format Supported AI, PLT, DXF, BMP, DST, DWG, LAS, DXP

Place of Origin Shandong, China

Brand Name DOWELL

Model Number DW 1325

Certification CE, ISO, GS, SGS, UL, CCC

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Fabric laser cutting bed:
1.DSPcontrol, High precision & efficiency
2.Stable performance
3.auto-feeding system

Fabric laser cutting bed

Model	DW-1325 Laser Cutting bed for fabric
Laser-type	CO2 laser tube
Laser-power	60W (80W ,100w,150w for option)
Cooling Mode	Circulating-water-cooling
Power Adjustment	0-100% controlling, no segment and adjusting by software
Machine Control and Drive	Speedy DSP controlling, stepper motor
Max Engraving Speed	1000mm/s
Max Cutting Speed	500mm/s
Repeating Location	±0.01mm
Minimum Character	Chinese character 1.5mm, crisscross-row 1mm
Max Power	<1500W
Adjustable Up-down Distance of Laser Head	30mm
Working Travel Area	1300*2500mm
Table Area	1350*2550mm
Up-down Range of Working Table	Mechanical 360mm
Working Voltage	AC220V 50Hz
Working Environment	Temperature: 0-45, Humidity: 5%-95%, and congeal-water removed
Controlling Software Language	English, Simplified Chinese, or multi-languages
Dictate Format	.plt,.dst,.dxf,.bmp,.dwg,.al,*las, Support AutoCAD,CoreDraw direct outputting
Packaging	Wooden box
Machine Color	optional
Delivery Time	15 working days
Payment	T/T
Optional Equipment	Rotary attachment
	auto-feeding system
	Water-cooling unit
	Red-light position
	honeycomb table
	DSP Off-line operation with usb flash
