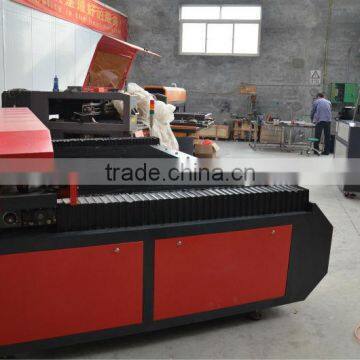

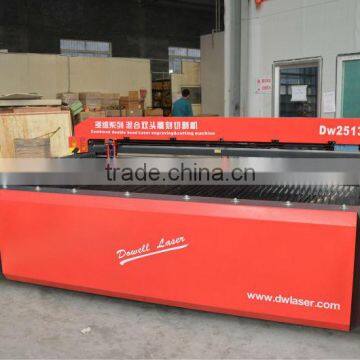

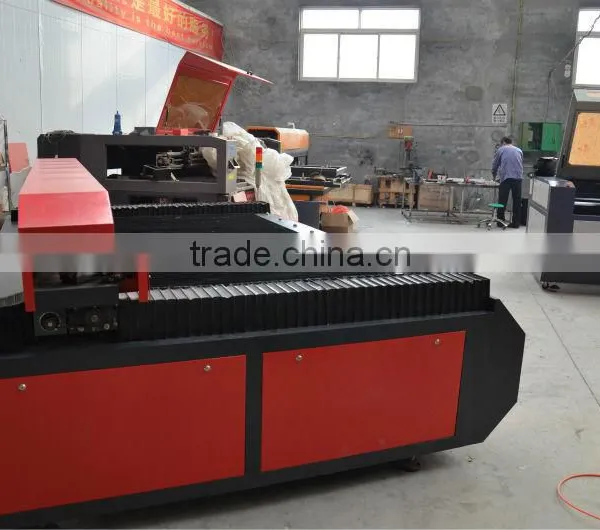

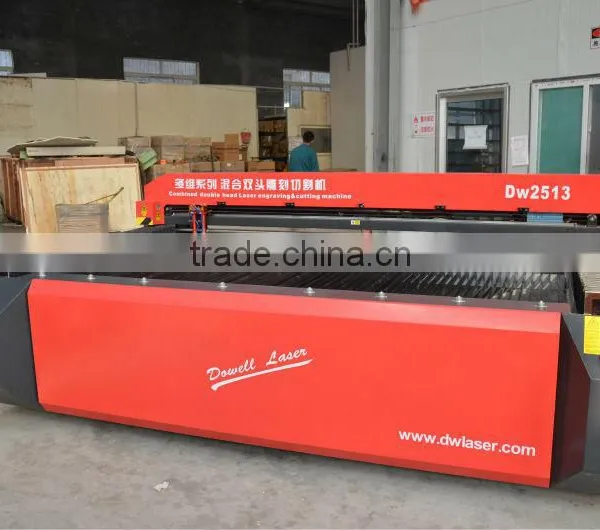

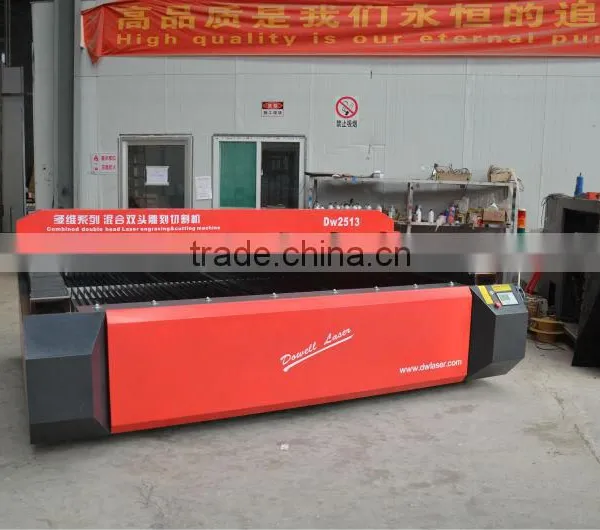

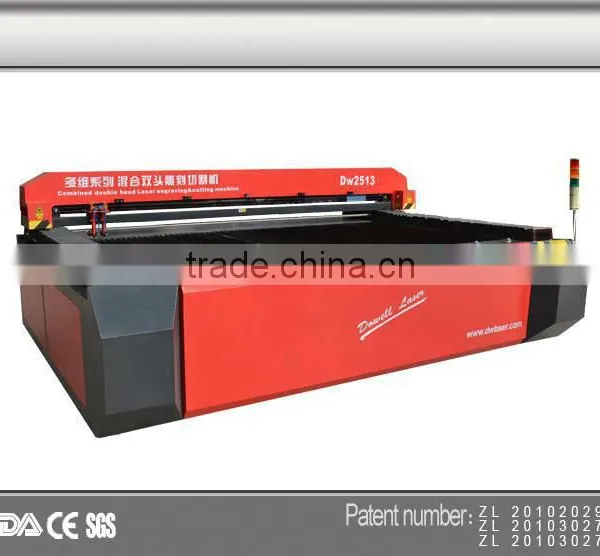

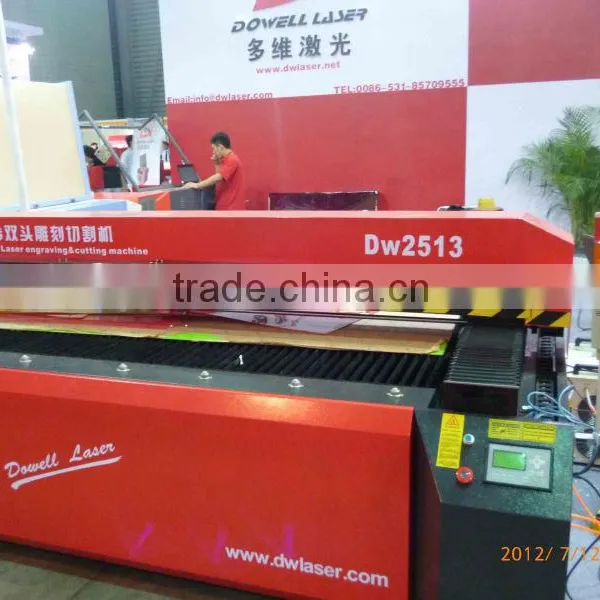

Fabric Laser Cutting Bed DW2513

Name: Fabric Laser Cutting Bed DW2513
Brand: DOWELL
SKU: 108459595
Availability: InStock

US$ 8,000 - 10,500 MOQ: 1 Set

Key Specifications

Condition:

New

Laser Type:

CO2

Applicable Material:

Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood

Jinan Dowell Photoelectricity Equipment Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Laser Type CO2

Applicable Material Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood

Cutting Thickness 0-30mm

Cutting Area 2500mm*1300mm

Cutting Speed 0-600mm/s

CNC or Not Yes

Cooling Mode Water Cooling

Control Software coreldraw, auto-CAD

Graphic Format Supported AI, PLT, DXF, BMP, DST, DWG, LAS, DXP

Place of Origin Shandong, China

Brand Name DOWELL

Model Number DW 2513

Certification CE, ISO, GS, SGS, UL, CCC

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Fabric laser cutting bed DW2513
1.DSP offline control
2.Double heads, one for engraving another cutting
3.X -2500 Y-1300

Fabric laser cutting bed DW2513

Model	fabric Laser Cutting bed
Laser-type	CO2 laser tube
Laser-power	60W (80W ,100w,150w for option)
Cooling Mode	Circulating-water-cooling
Power Adjustment	0-100% controlling, no segment and adjusting by software
Machine Control and Drive	Speedy DSP controlling, stepper motor
Max Engraving Speed	1000mm/s
Max Cutting Speed	500mm/s
Repeating Location	±0.01mm
Minimum Character	Chinese character 1.5mm, crisscross-row 1mm
Max Power	<1500W
Adjustable Up-down Distance of Laser Head	30mm
Working Travel Area	2500*1300mm
Table Area	2550*1350mm
Auto-feeding system	YES
Working Voltage	AC220V 50Hz
Working Environment	Temperature: 0-45, Humidity: 5%-95%, and congeal-water removed
Controlling Software Language	English, Simplified Chinese, multi-languages
Dictate Format	.plt,.dst,.dxf,.bmp,.dwg,.al,*las, Support AutoCAD,CoreDraw direct outputting
Packaging	Wooden box
Machine Color	optional
Delivery Time	12 working days
Payment	T/T
Optional Equipment	Rotary attachment
	auto-feeding system
	Water-cooling unit
	Red-light position
	Vacuum table
	DSP Off-line operation with usb flash
