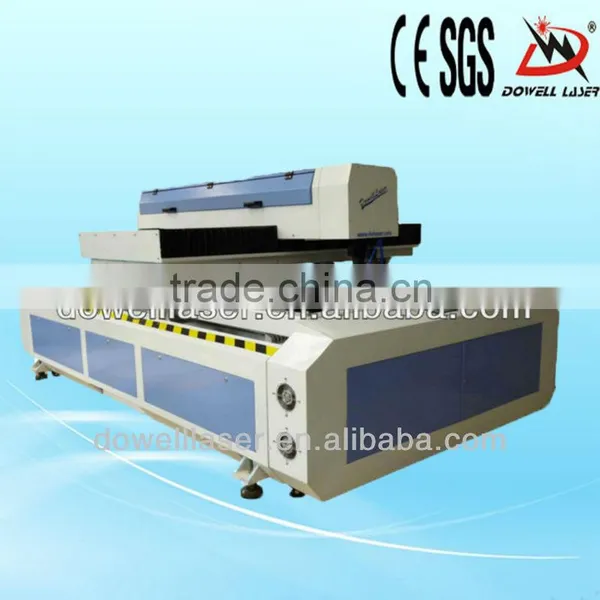

laser cutting bed
1.Laser parts of laser cutting bed |
|
Laser Parts: 1) GSI metal Laser Tube 300W original 2) GSI laser power source 3) PANASONIC JAPAN servo motor with Driver’s 4) Servo control system (control card) Leetro 6535 DSP offline system 5) Laser Head ( Au3Tech) (lens dia & Thickness) With Cooling Systems (Lens & Mirror are Air Cooling Mounted) 6) Laser Head With Motorized & Auto Focusing System (Non-metal Sensing System) 7) Head Need Cover For Protection 8) Air purge For Lens Cleaning 9) Air cool facility is included for Mirror & Lens cleaning 10) Red dot 11) Laser Lens (Singapor Wavelength) 12) Mirror (Singapor Wavelength) 13) Water Chiller System:- LW15 14) Air ON / Off Automatically with Laser |
| 2.Machine body of laser cutting bed |
|
|
3.CNC parts of laser cutting bed |
|
1) Die Board Machine Body :- Steel Fabricated Structure With Lath Bed with tempering heat treated (Machining & Grinding) Yes 2) Machine Heavy Duty Structure: 1500 KG min 3) XYZ Axis Square Guide & Block (Set) :- HIWIN (Made In Taiwan) X Axis 20mm Y Axis 25mm 4) X Axis Ball Screw :- No.2510 HIWIN (Made In Taiwan) 5) Y Axis Ball Screw :- 32MM Hiwin (Made In Taiwan) 6) Z Axis Ball Screw :- 80 MM max up &down distance Hiwin (Made In Taiwan) 7) Limit Switch / Sensor :- Omron (Made In Japan) 8) All Cables of Machine ECU (Made In USA) 9) Electric Component (Power supply, Switch, Control Board) :- Schneider (Made In Germany) 10) Cutting Speed: with 100% of 300W GSI base on 18mm die board cutting MAX 1200mm/min 11) Total Cutting quality require perpendicular 90 degree: Accuracy( + /- 2 Degree) 12)Auto Lubrication Systems Requirement all part yes. For all ball screws and rails blocks, bearings. 13) Compressor:- As Per Laser Cutting Required Capacity with Air Dryer 0% Moisture nil purpose3 phase AirCompressor ( 3 KW power) 14) Vacuum:- Blower 100% Fume Suck (Fume Collector Pipe is Metal pipe or plastic 15) Bed Surface Accuracy: Machine Bed made by German CNC working station. Accuracy is 0.02mm To 0.05mm for guarantee mechanical accuracy. 16) Optic alignments system with ruggedness otherwise Machine Can’t Cut The Thickness (One Time Alignments) 18) tool section aluminium blad (thickness 10mm) with distance between 20mm |
| 4.Laser head and laser tube details of laser cutting bed |
|
|
| 5. software of laser cutting bed |
|
Software: 1) Laser Cutting Software:…leetro 6535 Cutting Cerf selection is automatically by Software During Single Drawings multi selection done automatic. ( Beam spot dia. Are define as PT1 = 0.45 mm, PT2 = 0.71mm , PT3 = 1.07mm ) ( existing system no facility Manually doing by defocusing for spot dia changing.) 2) marking Is Compulsory Needy ( for company logo) 3) Material types : Wooden = 18mm to 20mm , Acrylics = up to 40mm , Bakelite = 5 /8 / 12 mm. 4) Software System should capable to keep store data in memory & recall Automatics. 5) Auto Focus System For Z Axis (If Material is Not Bottom Side Than Soft Limit Protection) no material no work, Z Axis limit is must 6) Trouble Shooting Error: system has automatic mistake protection interface 7) Electrical Schematic Diagram ( Control Penal ) 8) Machine Operating Manual ( Trouble Shooting Manual ) 9) Alignment Picture shows in operating manual 10) CE Certified Product 11)Supporting Format: CF2, DXF, DWG, Coral Open CDR, EPS, PSD, PLT, Etc Files 12)Test Process: Nesting of different die (Rotation in steps of 90 degree linear movement. |
| 6.Machine details about laser cutting bed |
|
|
| 7.samples of die laser cutting bed |
|
|
| 8.original picturers of laser cutting bed |
|
|
| 10.After-sales service of Dowell Laser |
|
1).Field training:When you order the machine and you are the first time to use the machine,our engineer can go your coutry for installing the machine. 2)24hours calling Skype,MSN,or email or QQ 3)Skype:dowell-april |
| 11.Company introduct of Dowell Laser |
|
Jinan Dowell Photoelectricity Equipment Co.,Ltd with 12years production experience,specialized in laser cutting,engraving,marking equipment production,developing and sales and provide customers with comprehensive solutions,compare to same industry,we hold less autonomy R& D companies.
|
| 12.Certafication of Dowell company |
|
All the machines have passed CE,SGS,CIQ,FDA and other international certafications.
|
