Specifications
Laser cutting bed 13251 RECI laser tube
2.CW5200 industrial water chiller
3.Air compressor
4.Stable stepper motor

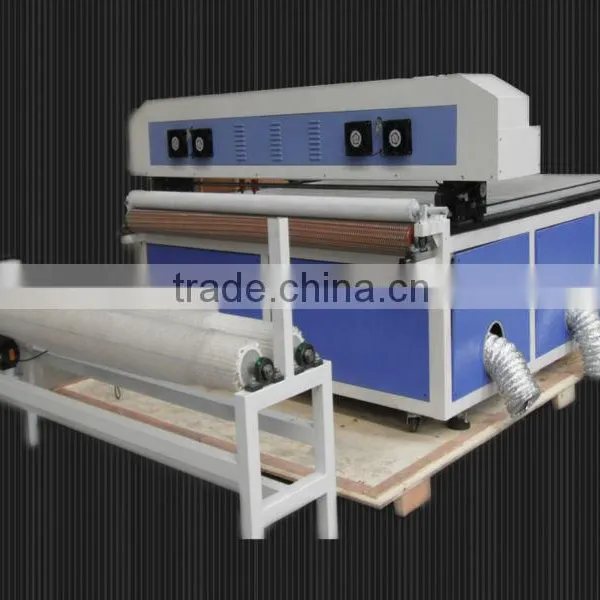

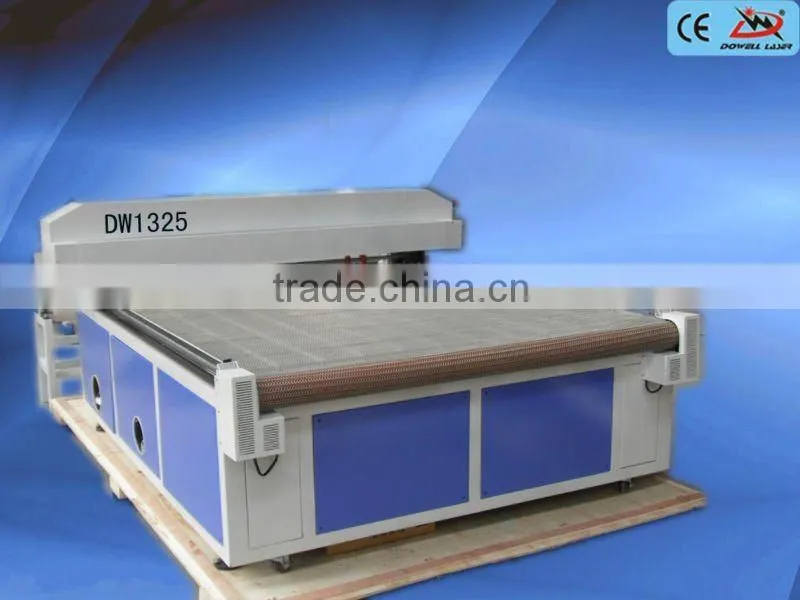

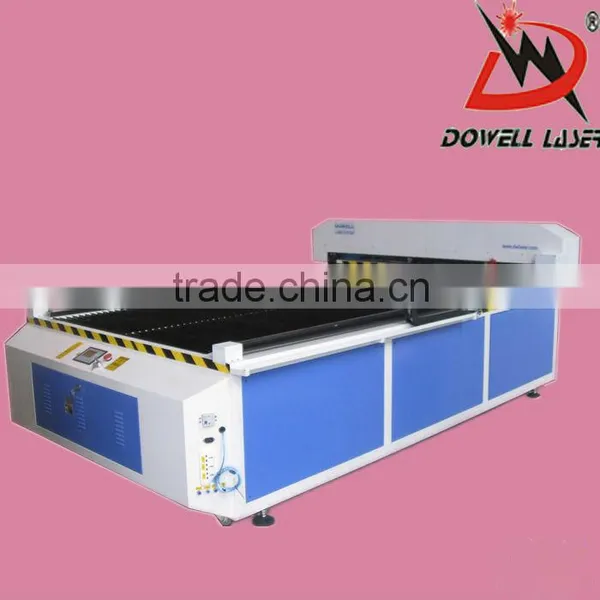

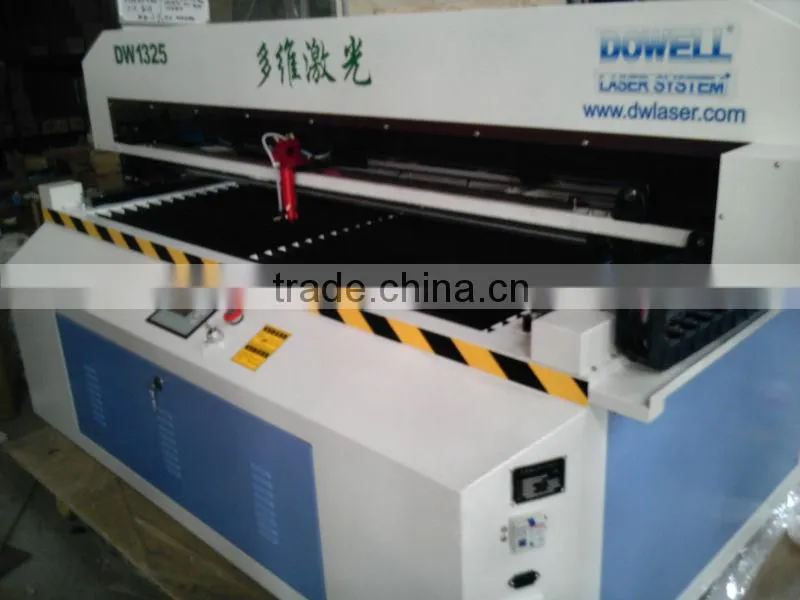

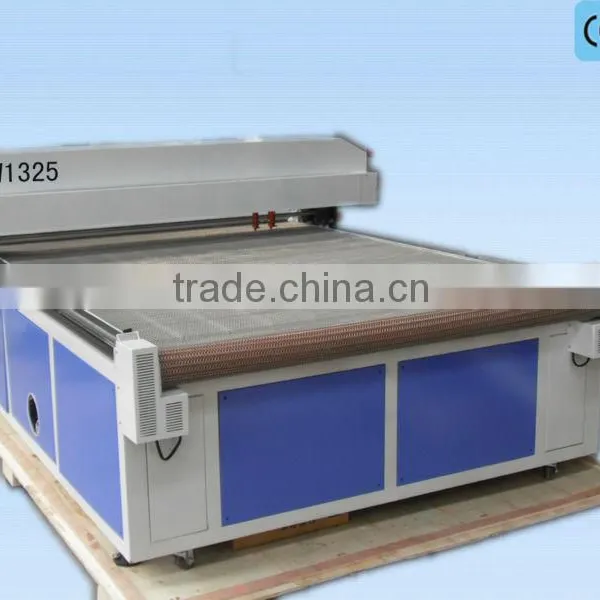

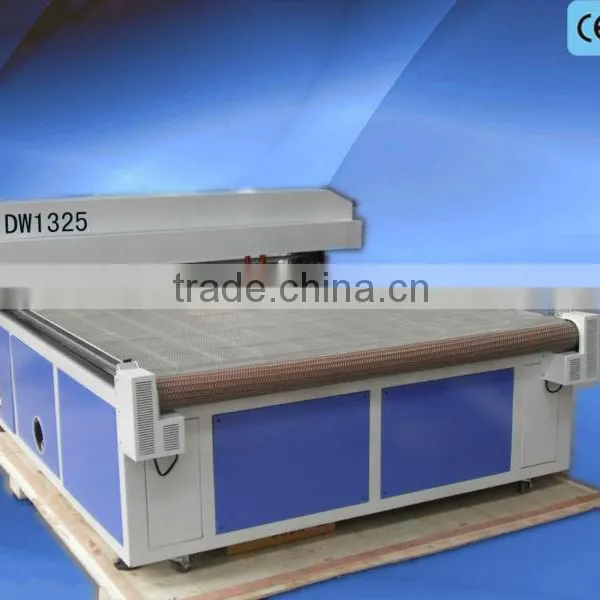

Laser cutting bed DW-1325
Technical Data
Laser-type |
sealed CO2 laser tube |
Laser-power |
80w,100w,150w,180w for option |
Cooling Mode |
Water cooling |
Power Adjustment |
0-100% controlling, no segment and adjusting by software |

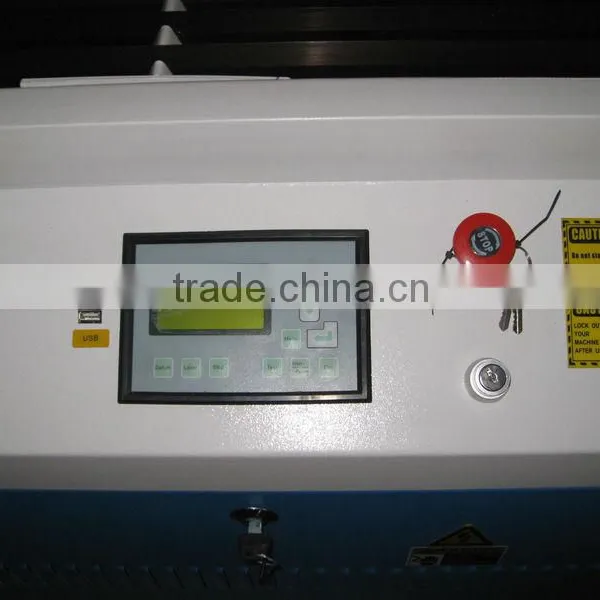

Controling Software |
DSP Control System |
Driving System |
Stepper |
Max Engraving Speed |
1200mm/s |
Max Cutting Speed |
500mm/s |
Resetting positioning accuracy |
±0.01mm |
Minimum shaping Character |
Chinese character 1.5mm, English 1mm |
Gross Power |
<2500W |
Adjustable Up-down Distance of Laser Head |
30mm |
Working Travel Area |
1300*2500mm, 1300mm width with infinity material-feeding |
Table Area |
1350*2550mm |
Working Voltage |
AC110-220V±10%, 50-60Hz |
Working Environment |
Temperature: 0-45, Humidity: 5%-95%, and congeal-water removed |
Controlling Software Language |
English, Simplified Chinese, Traditional Chinese and procuring of multi-languages |
Supported graphic |
*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support AutoCAD,CoreDraw direct outputting |
Packaging |
Wooden box |
Machine Color |
Red/Grey |
Optional Equipment |
Water-cooling unit |
|
Red dot pointer |
|
DSP Off-line operation with usb flash |
Packing Size |
310*218*160cm |
Gross Weight |
980KG |

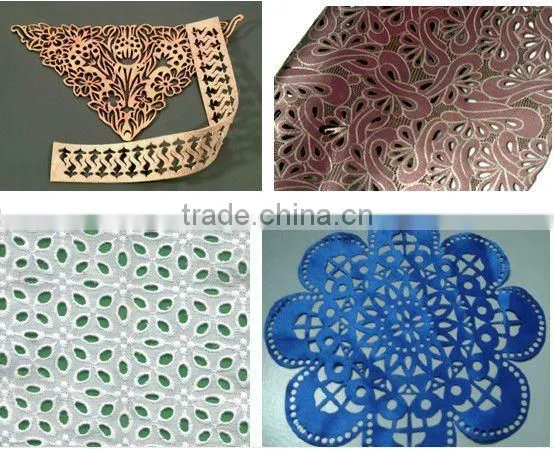

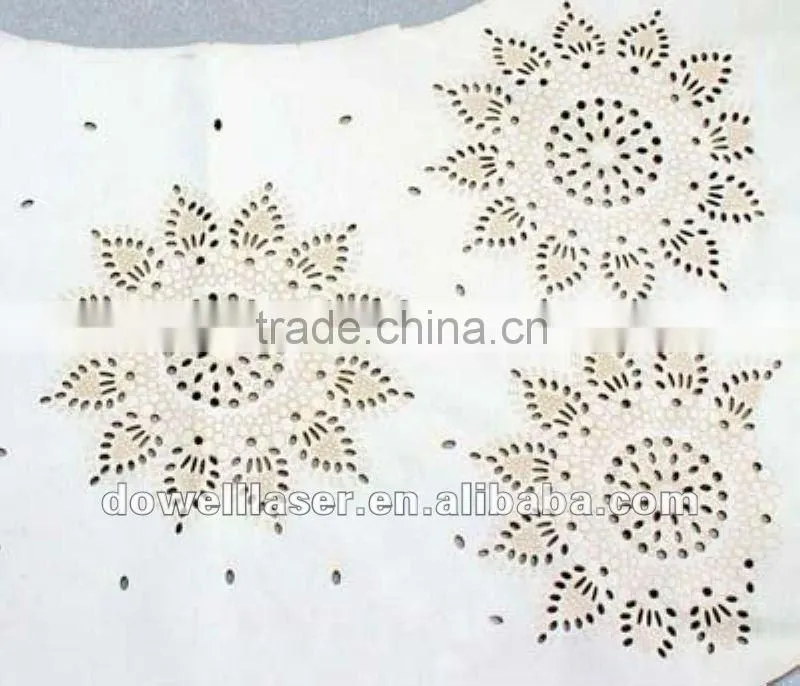

Applicable Materials:
Non-metal materials such as acrylic, wood, MDF, plywood, die board, double color board, rubber, plastic, as well as paper,
leather, fabric, jeans and many other nonmetal materials.
Applicable Industries:
Advertising industry, billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, furniture, garment and leather, embroidery, decoration and upholster industry.
....
