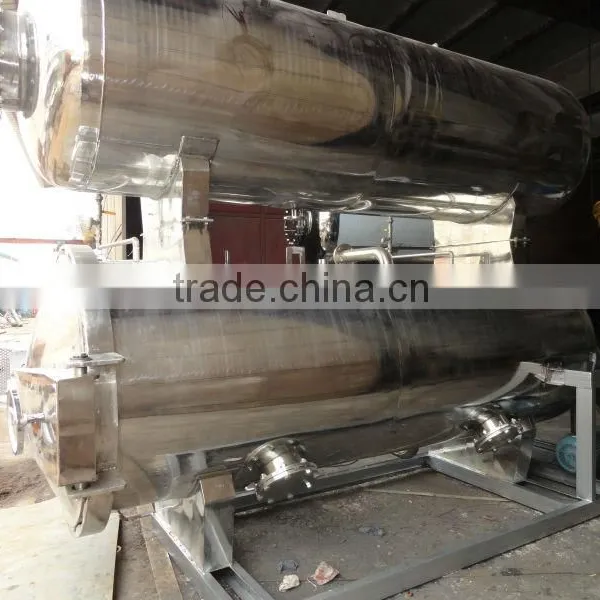

(Manufacturer)Parallel Water Bath Sterilizing Retort
- 100 Set / Sets per Month
- WenZhou
- T/T
- Professional pipe hydraulic pressure test equipment machine with automatic print test reports
- manual and automatic type stainless steel centrifugal milk cream separator
- manual and automatic type stainless steel milk cream separator machine
- semi-automatic centrifugal Milk/dairy cream separator
- automatic centrifugal Milk/dairy fat separator
- automatic Milk/dairy Cream separator
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | HY |
Model Number: | HY-001 | Usage: | Canned Food | Type: | Autoclave |
Certification: | CE | Warranty: | 1years | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
(Manufacturer)Parallel Water Bath Sterilizing RetortSpecifications
1. Water Spray
2. Energy Saving
3. Fully automatic or semi-automatic system
4. Uniform heat distribution, no dead angle
1. Water Spray
2. Energy Saving
3. Fully automatic or semi-automatic system
4. Uniform heat distribution, no dead angle
Hot water immersion sterilization controlled with precise temperature and pressure by PLC two sets of autoclave use the same sterilizing water one after another. The hot sterilizing hot water inject to another autoclave after finishing on batch to decrease heat and water consumption.
Model | RJD-500 | RJD-700 | RJD-900 | RJD-1000 | RJD-1100 | RJD-1200 | RJD-1300 | RJD-1500 | |
Sterilizing Tank | ID (mm) | 500 | 700 | 900 | 1000 | 1100 | 1200 | 1300 | 1500 |
Height (mm) | 800 | 1200 | 1500 | 2000 | 2400 | 3000 | 3750 | 3750 | |
Volume of the Inside Tank (m3) | 0.2 | 0.5 | 1 | 1.8 | 2.5 | 3.5 | 5.2 | 7 | |
Sterilizing Baskets | 1 | 2 | 2 | 2 | 3 | 4 | 4 | 4 | |
Steam Consumption kg/cycle | 85 | 150 | 250 | 285 | 350 | 385 | 420 | 500 | |
Design Temperature (C) | 147 | ||||||||
Design Pressure (Mpa) | 0.35 | ||||||||
Steam Work Pressure (Mpa) | 0.4-0.6 | ||||||||
Cooling Water Work Pressure (MPa) | 0.3 | ||||||||
Compressed Air Work Pressure (Mpa) | 0.7 | ||||||||
Outside Sizes | L (mm) | 1150 | 1650 | 2050 | 2600 | 3050 | 3700 | 4500 | 5650 |
W (mm) | 750 | 950 | 1150 | 1250 | 1350 | 1450 | 1550 | 1750 | |
H (mm) | 1000 | 1200 | 1400 | 1500 | 1600 | 1700 | 1800 | 2050 |
