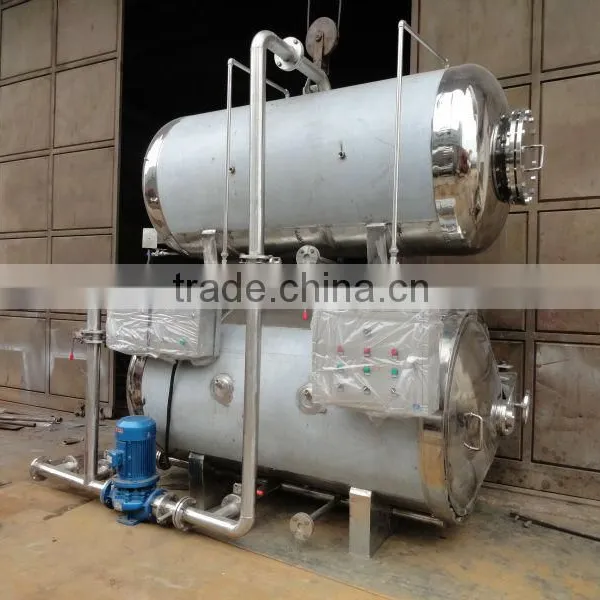

(Manufacturer)Double tank automatic food sterilizer retort
Specifications
1.suitable for all kinds of Heatresistent packaging materials
2.It saves energy
3.high temperature sterilizing process costs
1. It saves energy. The working medium utilized in the sterilizing process
can be reused, saving energy, time, manpower and physical resourses and reducing the producing cost.
2.The high temperature sterilizing process costs a short time. It sterilizes by adopting the double-pot water circulation system. It heats the water in the pot up to the sterilizing temperature, which reduces the sterilizting time and increases the working efficiency.
3.The Temperature in the sterilizing pot is stable in the whole process, which guarantees the quality comformity rate of its F ratio.
Parameter:
Model | RJD-500 | RJD-700 | RJD-900 | RJD-1000 | RJD-1100 | RJD-1200 | RJD-1300 | RJD-1500 | |
Sterilizing Tank | ID (mm) | 500 | 700 | 900 | 1000 | 1100 | 1200 | 1300 | 1500 |
Height (mm) | 800 | 1200 | 1500 | 2000 | 2400 | 3000 | 3750 | 3750 | |
Volume of the Inside Tank (m3) | 0.2 | 0.5 | 1 | 1.8 | 2.5 | 3.5 | 5.2 | 7 | |
Sterilizing Baskets | 1 | 2 | 2 | 2 | 3 | 4 | 4 | 4 | |
Steam Consumption kg/cycle | 85 | 150 | 250 | 285 | 350 | 385 | 420 | 500 | |
Design Temperature (°C) | 147 | ||||||||
Design Pressure (Mpa) | 0.35 | ||||||||
Steam Work Pressure (Mpa) | 0.4-0.6 | ||||||||
Cooling Water Work Pressure (MPa) | 0.3 | ||||||||
Compressed Air Work Pressure (Mpa) | 0.7 | ||||||||
Outside Sizes | L (mm) | 1150 | 1650 | 2050 | 2600 | 3050 | 3700 | 4500 | 5650 |
W (mm) | 750 | 950 | 1150 | 1250 | 1350 | 1450 | 1550 | 1750 | |
H (mm) | 1000 | 1200 | 1400 | 1500 | 1600 | 1700 | 1800 | 2050 | |
