Punches and Shears Tools ISO9001 ShangHai China Q35Y-25

Machine feature

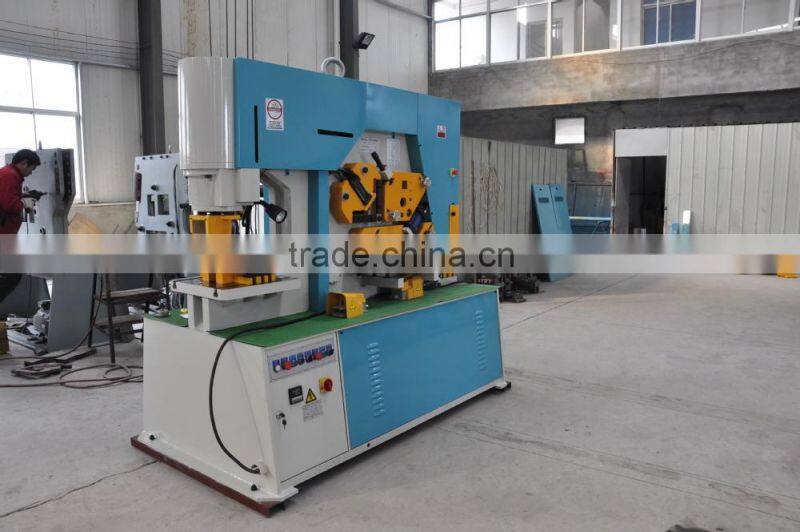

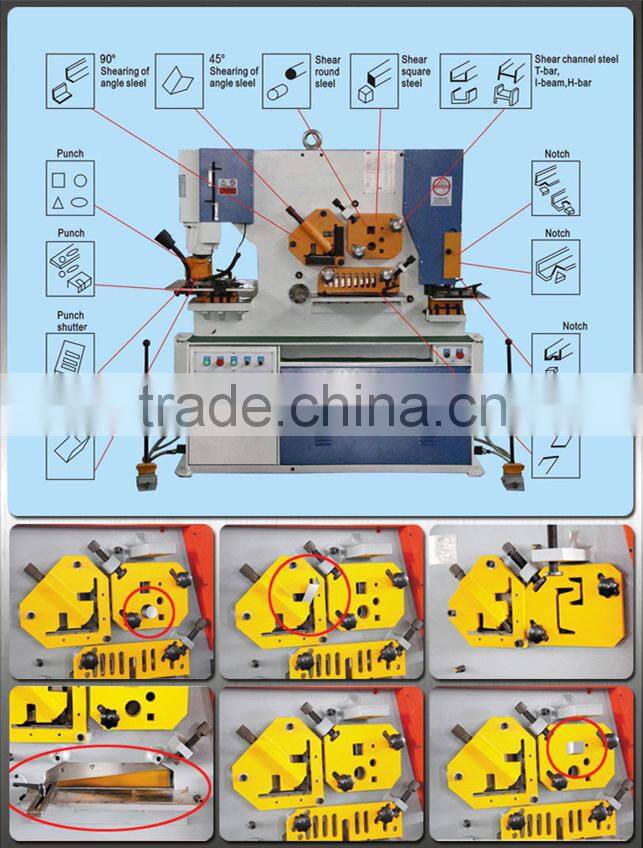

Q35Y Series hydraulic combined punching&shearing machine can cut and punch

all kinds of materials such as plate, square bar, angle, round bar, channel and so on.

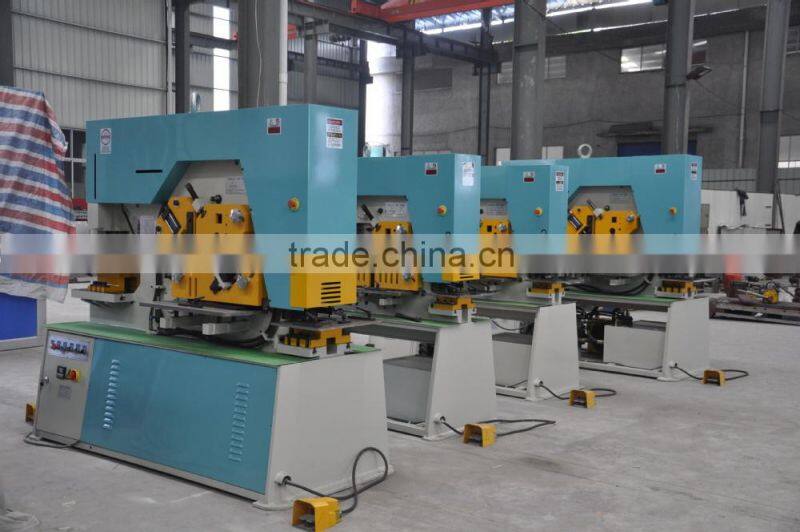

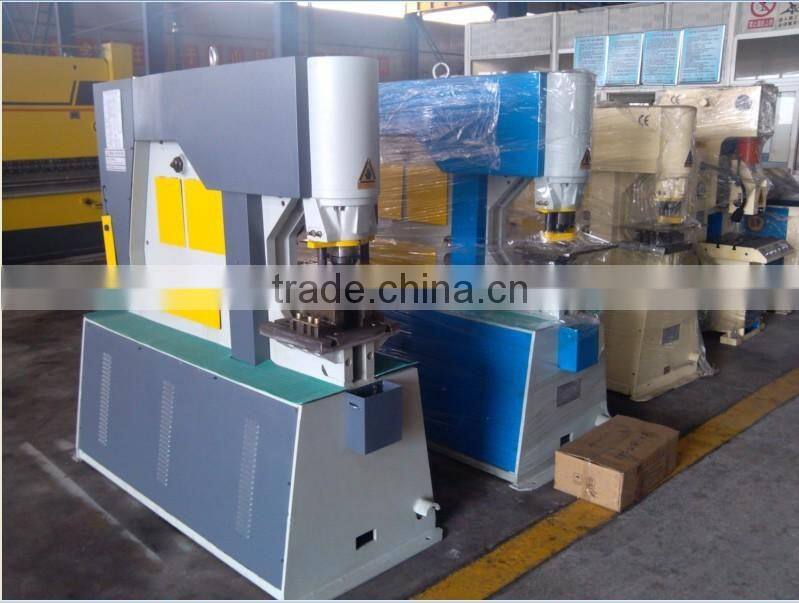

BOHAI industrial hydraulic ironworkers have been designed and built to the highest

quality standards in the industry.

This profitable machine will serve any grueling fabrication shop for decades to come.

This machine is typically in stock for quick deliveries.

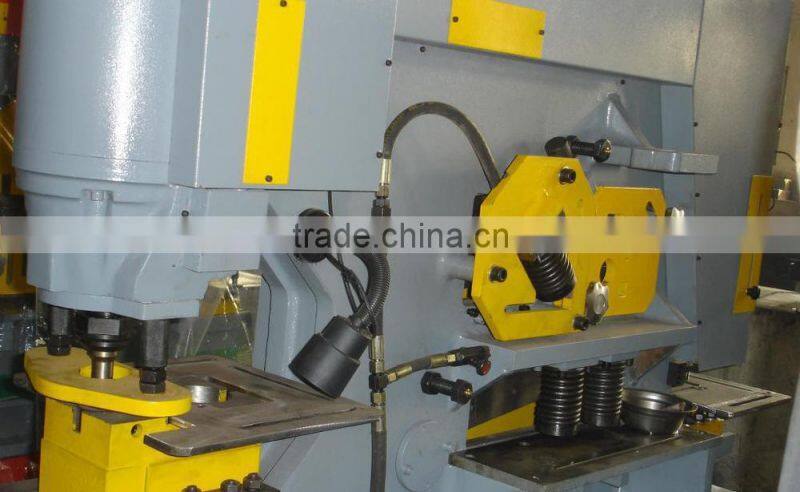

1. Punching

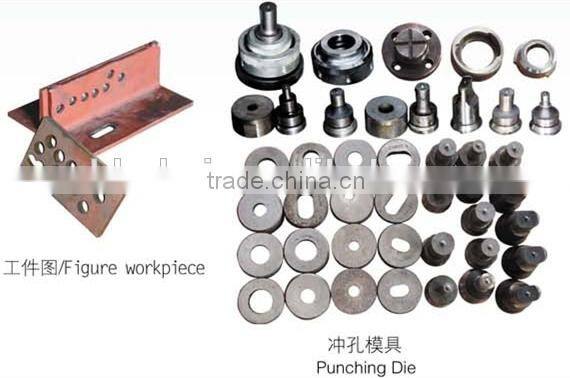

Full range of universal punches and dies are available.unique style allows for large angle iron punching and large channel punching.Large viewing window on stripper swing away design for ease of operation.large two piece gauging table with rulers and stop as standard fittings.Quick change coupling nut and sleeve for rapid replacement of change.

2. Shearing

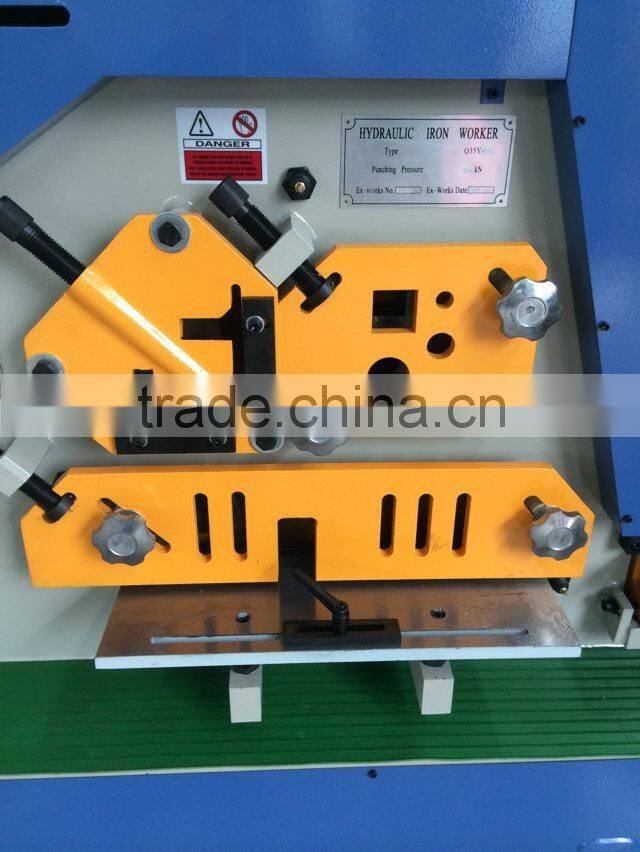

Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/square bar,channel/beam cutting. Large strong guarding for max safety. The angle shear has the ability to cut angle at 45°both top and bottom leg.

This gives the operator the ability to make a picture frame corner for perfect welds.Diamond shaped blade for quality cuts that is minimal material lost and deformity. Easily adjustable hold-down device for accurate plate cutting.

Large 15″squaring arm with inlaid scale.Special anti-istorted blade for quality cutting.

Lower blade has four usable edges.There is screw allow for gap adjust no shim needed.

3 . Notching

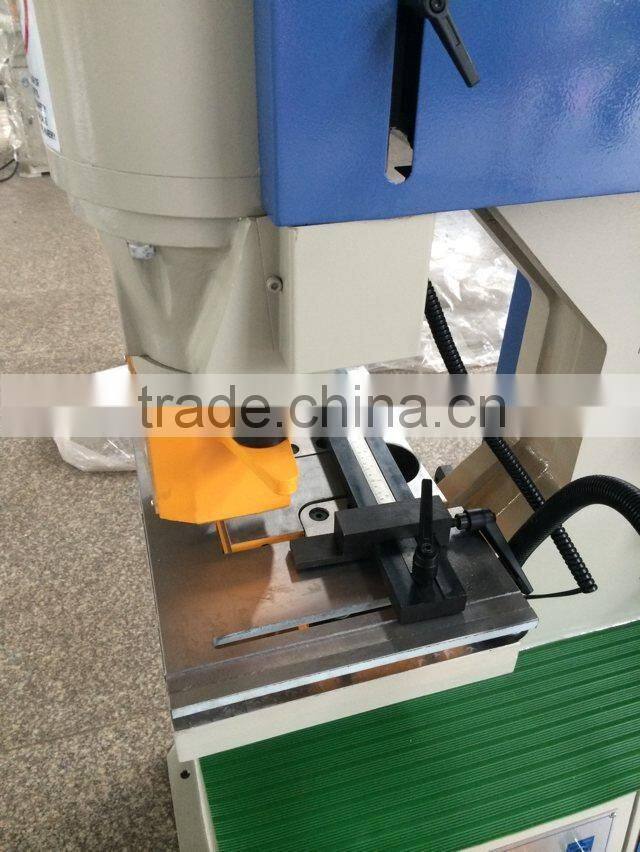

Unique design allows for cutting of angle and flat bar. Electrical interlock safety guardand three gauging stops for precise positioning. The notching section of this hydraulic ironworker is perfect for notching out metal plate, angle iron and much more. The notching station also has an oversized table with material stops.

This section of the machine can also be outfitted with the optional vee notcher.

4. Bending

 Also bend the plate below 500mm. All the components of Machine are of the highest quality in their safty, function, capability and maintenance.

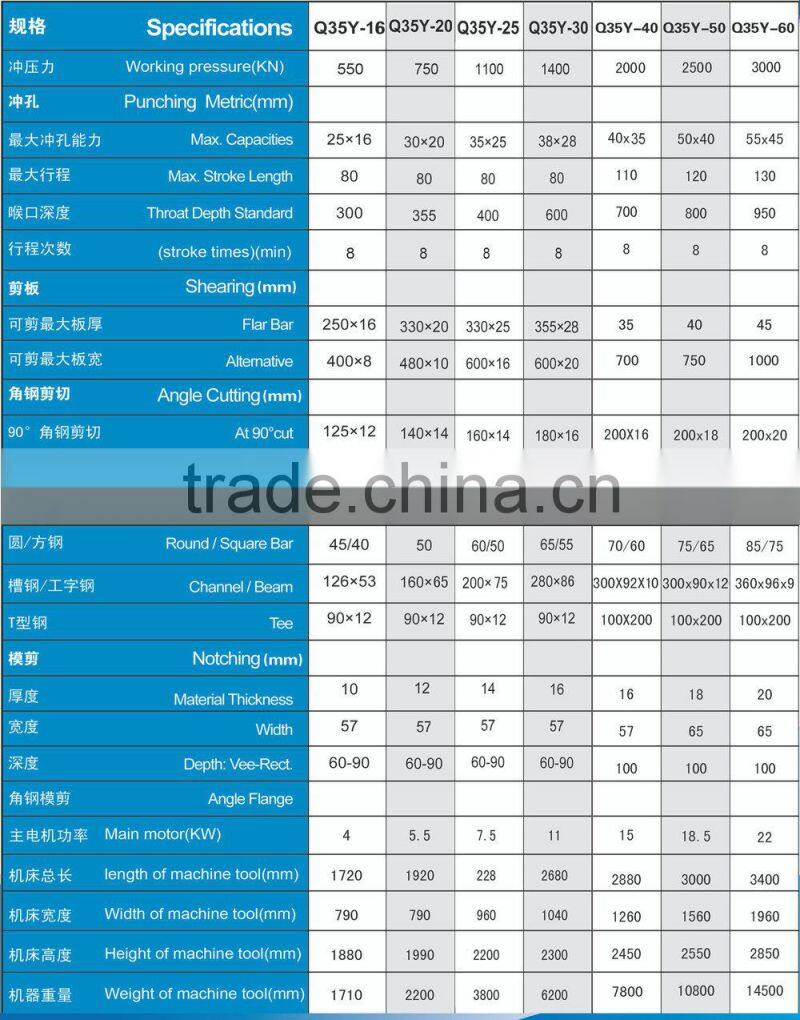

The above date is just for your reference.if there is any disaccord please refer to actual adate.

1. Payment Terms

    T/T, L/C at sight is acceptable by us.

2. Price Terms

    It is up to your requirement. EX-WORS, FOB, CIF, CFR and so on are acceptable  by us.

3. Delivery Time

    15 Days from our accountant confirm your deposit payment.

4. Shipment Condition

    We will arrange the machine production from our accountant confirm your deposit payment. The deposit is 30% of the contract.

    The balance should be paid up before loading machines.

5. Warranty

    1 year quality guaranty for the main spare parts, not include quick-wears parts, like blade, punch, die and so on. If the parts of machines have problems, which are caused by its own quality, we will provide the accessories for free.

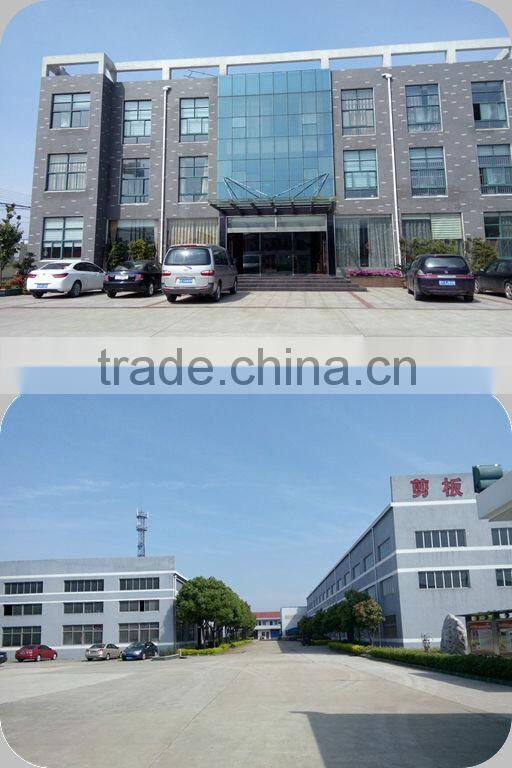

As the parent company of Shanghai Wanjiao Machine Tools Co., Ltd and Maanshan Huayu Machine Tools Co., ltd,BOHAI owns one of the the most contemporary production plants in the industry in China.

The main pruducts of the company are guillotine shears,hydraulic swing beam guillotine shears,hydraulic plate bending machine and other complete set of forging equipment,various type of toolings and cutters,spare parts for machine tools etc.Three different ISO certified factories producing different product families employ 300 employees.

In order to offer customer solutions and further develop patents, the BOHAI R&D center opened in 2000. Now, there are fifteen engineers serve for the R & D center.

Designed and engineered with modern technology, Bohai products are equipped with high quality and proven readily available components.

Established in 1989, Bohai has vast experience in building and supplying  high quality products. With over 60,000 machines delivered worldwide, Bohai has earned a reputation as a supplier of innovative “value oriented” solutions.

We promise solemnly:BoHai honor,is our each person’s honor,only hard work,in order ro maintain the honor,enterprises can develop continuously,continue to grow together with customers,will be rooted in the integration of resources of the world back to the world,is the ultimate goal of BoHai enterprises.

Our company will grasp the opportunity,gather large number of talented people,increase competitive power in the science and technology of products,accelerate enterprise development and provide higher quality products and service for our new and old customers.Your partner today, tomorrow, and forever!
