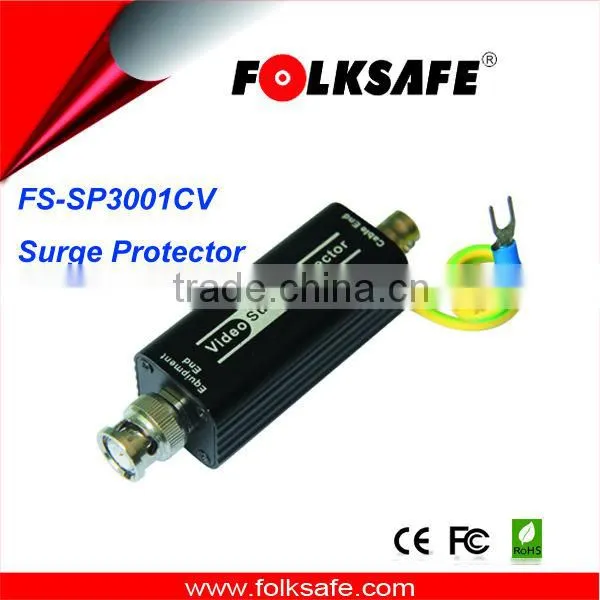

Coaxial Video Surge Protector BNC connector FS-SP3001CV
Coaxial Video Surge Protector
Model |
FS-SP3001CV |
Product Name |
Coaxial Video Surge Protector BNC connecto |
Function |
Coaxial Video Signal Surge Protection |
Applied devices |
CCTV/CATV system, Antenna of Television, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR. VOD….etc. |
Connector |
BNC male and female |
Nominal Operating Voltage (Un) |
5V |
Max Continuous Running Voltage (Uc) |
8V |
Nominal Discharge Current In (8/20us)} |
5KA |
Max Discharge Current Imax (8/20us) |
10KA |
Rated Load Current ( IL) |
500mA |
Limited Voltage |
15V |
Response Time |
≤1ns |
Max Transmission Rate |
10Mbps |
Matched Impedance |
75Ω |
Insertion Loss |
<0.2dB |
Housing |
Aluminum alloy |
Net weight |
0.08kg |
Dimension |
58*25*25mm |
Application Diagram of Coax Surge Protector
Picture of Coax Surge Protector
Transportation of Coax Surge Protector
Company&Factory Show
Certification
Exhibition
