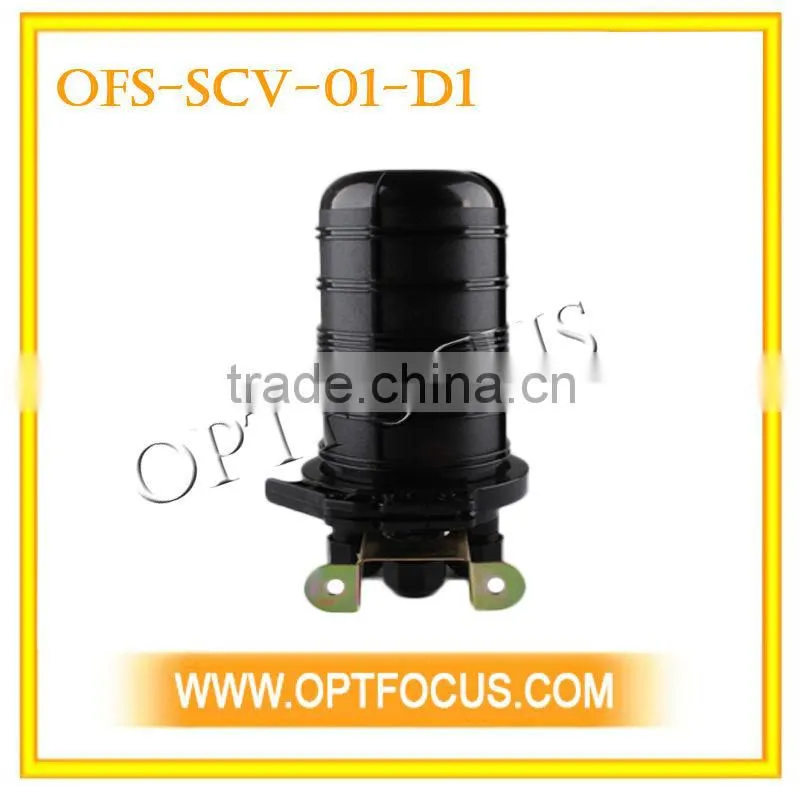

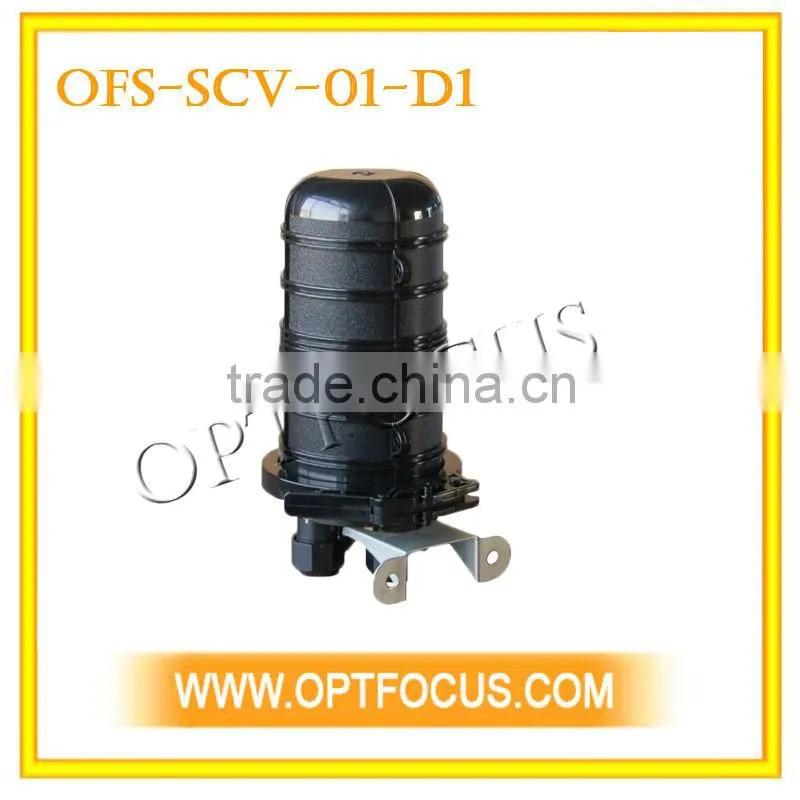

OFS-SCV-01-D1 horizetal closure1.high quality , IP 68
2.Max capacity 48C
OFS-SCV-01-D1
Dome Mechanical Seal Splice Closure
Features:
l Easy to re-enter, it never requires re-entry tool kit.
l The strong housing provide fire resistant, waterproof and quakeproof while protecting splices during pulling, torsioning and impacting.
l Design flexibility and high reliable sealing system
l Cable sealing method: mechanical type
Applications
l It can be used in straight-through and branching application
l It can be used in aerial, underground , direct buried, Wall-mounting, hand hole and duct mounting application.
l It can be mounted on a pole, wall or strand.
OFS-SCH-01M Fiber Optic Splice Closure Datasheet
Model No. |
Size (mm) L×W×H |
Core capacity |
Cable Ports (max) |
Max diameter of cable (mm) |
Weight (excluding outside box) |
OFS-SCV-01-D1 |
Φ178×288 |
4 |
4 ports for Max. Φ16 |
48 |
1-4 |
Accessories
The accessories included in the FOSC: earthling wire, nylon tie, emery paper, buffer tube, metal hoop, sealing tape, insulation tape, special wrench,
Accessories to be ordered in addition: earthling ground, pressure testing valve.
2. Basic structure and configuration
2.1 Dimension and capacity
Outside dimension (Height x Diameter) |
288mm×178mm |
Weight (excluding outside box) |
1800g—1910g |
Number of inlet/outlet ports |
4 pieces |
Diameter of fiber cable |
Φ8mm~Φ16 mm |
Capacity of FOSC |
Bunchy: 4-48 (cores) |

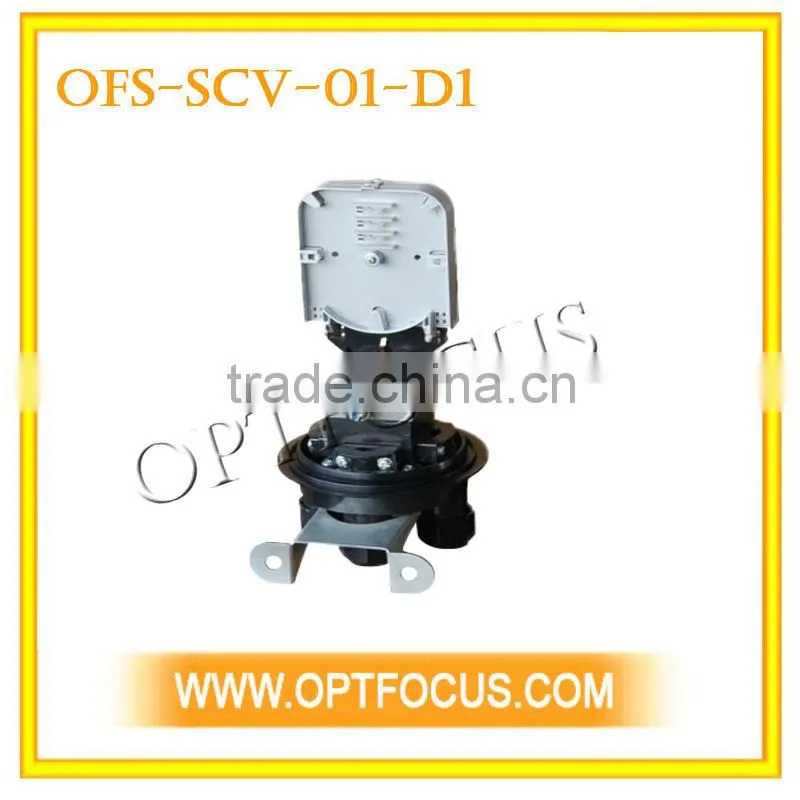

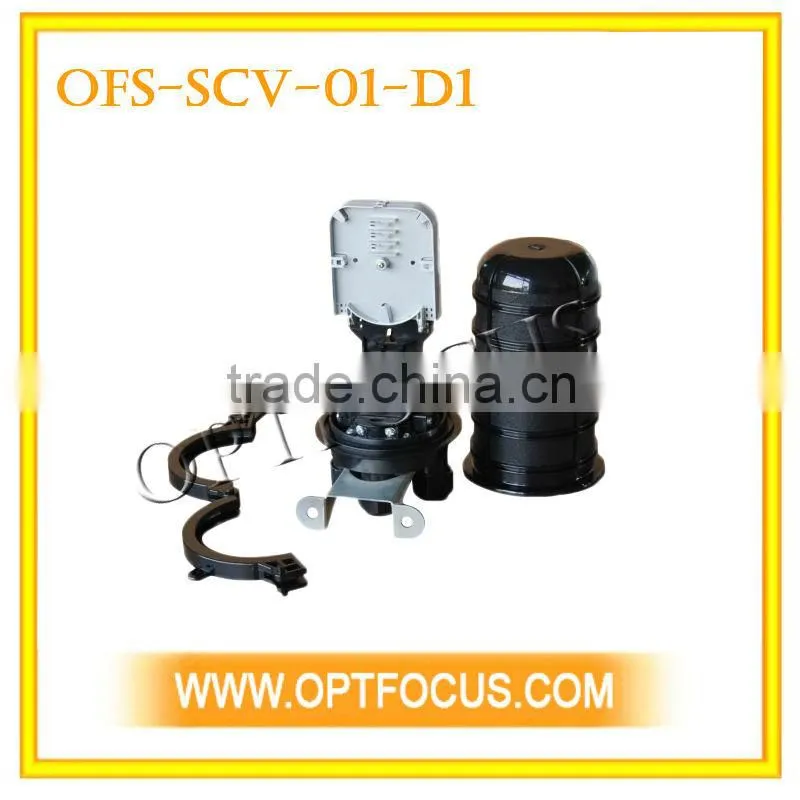

2.2 Main components
No. |
Name of components |
Quantity |
Usage |
Remarks |
1 |
FOSC cover |
1 piece |
Protecting fiber cable splices in whole |
Height x Diameter 208mm x 132mm |
2 |
Fiber optic splice tray (FOST) |
Max. 4 trays (bunchy) |
Fixing heat shrinkable protective sleeve and holding fibers |
Suitable for: Bunchy:4,6,8,12,(cores) |
3 |
Fiber holding tray |
1 pcs |
Holding fibers with protective coat |
|
4 |
Base |
1set |
Fixing internal and external structure |
|
5 |
Plastic hoop |
1 set |
Fixing between FOSC cover and base |
|
6 |
Seal fitting |
1 piece |
Sealing between FOSC cover and base |
|
7 |
Pressure testing valve |
1 set |
After inject air, it is used for pressure testing and sealing testing |
Configuration as per requirement |
8 |
Earthing deriving device |
1 set |
Deriving metal parts of fiber cables in FOSC for earthing connection |
Configuration as per requirement |
2.3 Main accessories and special tools
No. |
Name of accessories |
Quantity |
Usage |
Remarks |
1 |
Heat shrinkable protective sleeve |
|
Protecting fiber splices |
Configuration as per capacity |
2 |
Nylon tie |
|
Fixing fiber with protective coat |
Configuration as per capacity |
3 |
Earthing wire |
1 piece |
Putting through between earthing devices |
To put through as per actual requirement |
4 |
Abrasive cloth |
1 piece |
Scratching fiber cables |
|
5 |
Labeling paper |
1 piece |
Labeling fibers |
|
6 |
Special wrench |
2 pieces |
Installing and tightening nut of reinforced core and nut (plastic) of inlet/outlet tube |
|
7 |
Measuring paper |
1 piece |
To measure perimeter, of which its diameter is enlarged with seal tape |
To measure perimeter with the corresponding measuring paper |
8 |
Seal tape |
1 ring |
Enlarging diameter of fiber cable which fits in with gasket ring. |
Configuration as per specification |
9 |
Insulation tape |
1 ring |
Enlarging diameter of fiber cable for easy fixing |
|
10 |
Metal hoop |
1 set |
For wall mounting and pole hugging |
|
11 |
Buffer tube
|
decided by customers |
Hitched to fibers and fixed with FOST, managing buffer. |
Configuration as per requirement |
12 |
Desiccant |
1 bag |
Put into FOSC before sealing for desiccating air |
|
