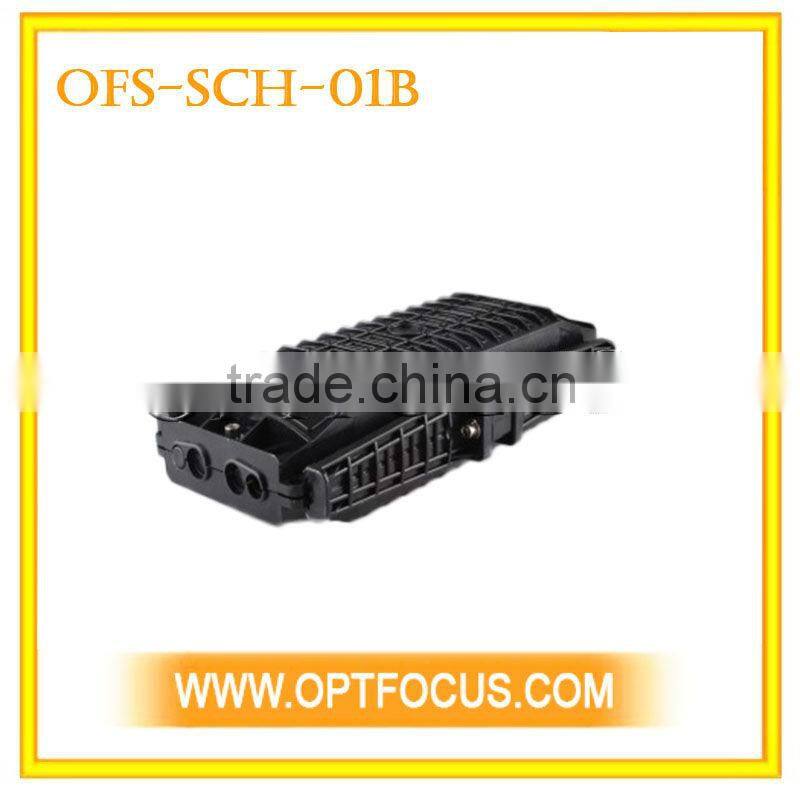

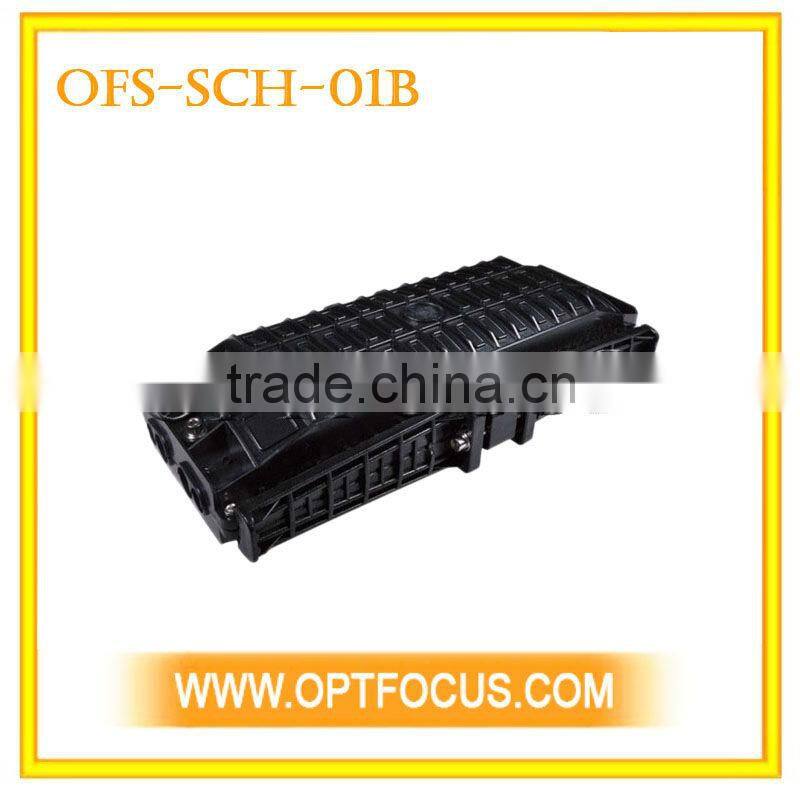

Horizetal Enclosure OFS-SCH-01B

Name: Horizetal Enclosure OFS-SCH-01B
Brand: OPTFOCUS
SKU: 107908065
Availability: InStock

Shenzhen Optfocus Technology Co., Ltd.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OPTFOCUS

Model Number:

OFS-SCH-01A

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OPTFOCUS

Model Number OFS-SCH-01A

Specifications

OFS-SCH-01B horizetal closure
1.high quality , IP 68
2.Max capacity 96C

Horizontal Splice Closure

Features:

l Excellent sealing performance,reusable. Protection grade is IP 68.

l Installation Method: wall-mounted, aerial,pipe-lined,manhole

l Feature:

l Easy in operation and good in practicality.

l Inner and external push button can insure good sealing,requirements of cable torque , stretching, pressure, bending.

l Vulcanized sealing can meet the Φ8—Φ23 (mm)optical cable sealing needs with excellent re-package performance.

l The ambient temperature ranges from -40 to +65°C.

Applications

The scope of application is: aerial, underground, wall-mounting, wall-mounting in duct and handhole.

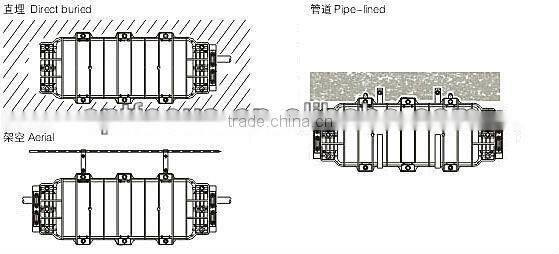

INSTALLATION METHODS

OFS-SCH-01B Fiber Optic Splice Closure Datasheet

Model No.	Size (mm) L×W×H	Core capacity	Cable Ports (max)	Max diameter of cable (mm)	Weight (excluding outside box)
OFS-SCH-01B	450x216x110 (mm)	96	8	Φ8—Φ23 (mm)	2750g-3200g

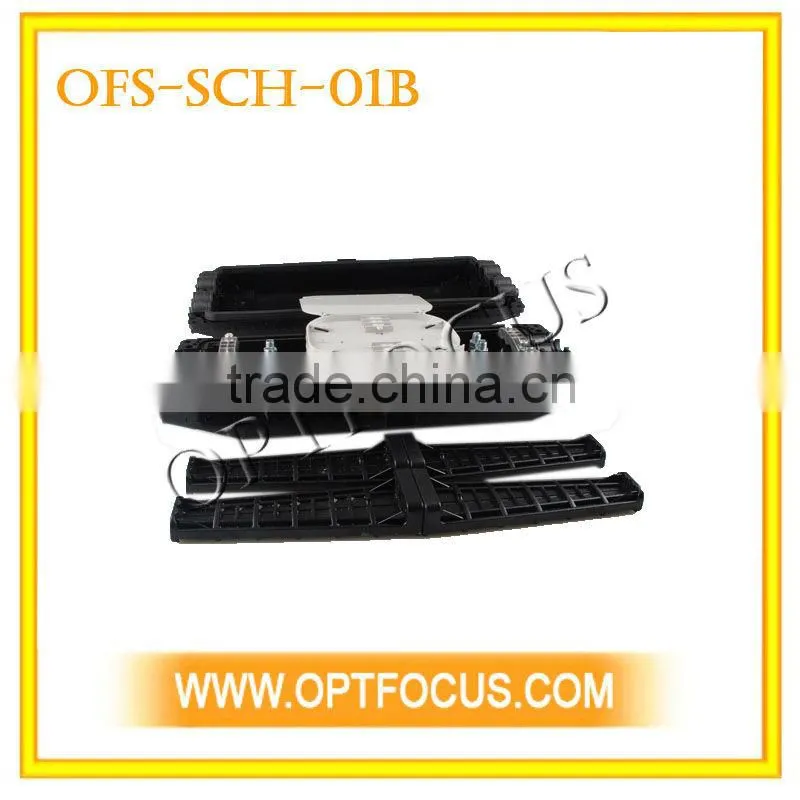

Main components

No.	Name of components	Quantity		Usage		Remarks
1	Housing	1 set		Protecting fiber cable splices in whole		Internal diameter: 340x122 (mm)
2	Insert plate	2 pairs		Fixing the housing		175x56x30(mm)
3	Fiber optic splice tray (FOST)	Max 5 trays(bunchy) Max 4 trays( ribbon)		Fixing heat shrinkable protective sleeve and holding fibers		Suitable for: Bunchy:12,24(cores) Ribbon: 3 (pieces)
4	Foundation	1 set		Fixing fiber cable, reinforced core and FOST
5	Seal fitting	1 set		Sealing between FOSC cover and FOSC bottom
6	Port plug	8 pieces		Sealing empty ports
7	Pressure testing valve	1 set	After injecting air, it is used for pressure testing and sealing testing		Configuration as per requirement
8	Earthing deriving device	1 set	Deriving metallic parts of fiber cable in FOSC for earthing connection		Configuration as per requirement

2.3 Main accessories and special tools

No.	Name of accessories	Quantity	Usage	Remarks
1	Heat shrinkable protective sleeve		Protecting fiber splices	Configuration as per capacity
2	Nylon tie		Fixing fiber with protective coat	Configuration as per capacity
3	Insulation tape	1 roll	Enlarging diameter of fiber cable for easy fixing
4	Seal tape	1 roll	Enlarging diameter of fiber cable which fits in with seal fitting	Configuration as per specification
5	Hanging hook	1 set	For aerial use
6	Earthing wire	1 piece	Putting through between earthing devices	To put through as per actual requirement
7	Abrasive cloth	1 piece	Scratching fiber cable
8	Labeling paper	1 piece	Labeling fiber
9	Special wrench	3 pieces	Fixing bolts, tightening nut of reinforced core
10	Measuring paper	1 piece	To measure perimeter of fiber cable, of which the diameter is enlarged with seal tape	To measure perimeter with the corresponding measuring paper
11	Buffer tube	To be decided by customers	Hitched to fibers and fixed with FOST, managing buffer	Configuration as per requirement
12	Desiccant	1 bag	Put into FOSC before sealing for desiccating air.
