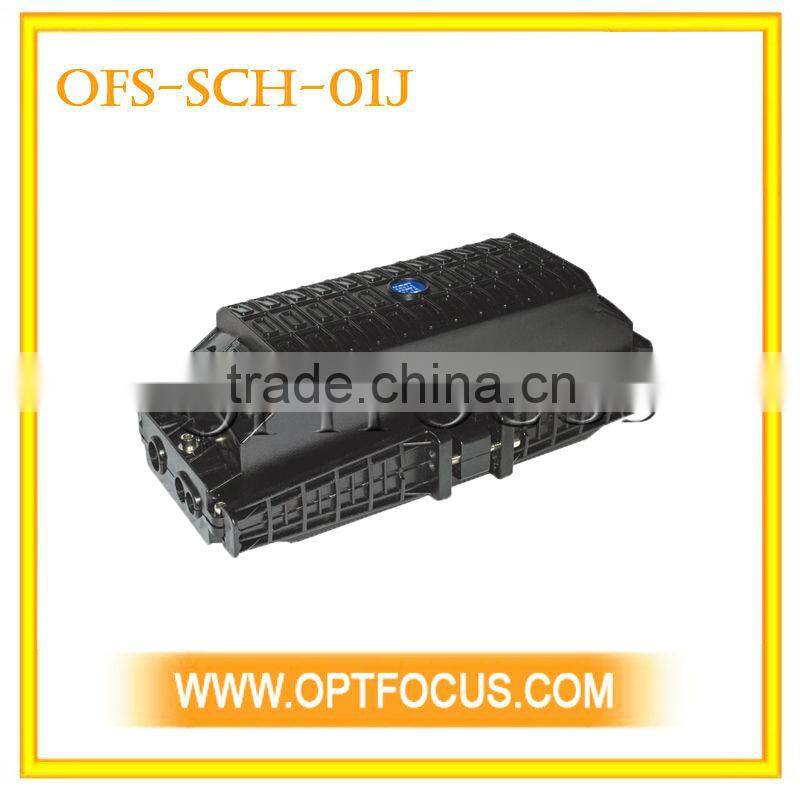

Horizontal Splice Closure

Features:

l Excellent sealing performance, reusable. Protection grade is IP 68.

l Installation Method: wall-mounted, aerial, pipe-lined, manhole

l Feature:

l Easy in operation and good in practicality.

l Inner and external push button can insure good sealing, requirements of cable torque, stretching, pressure, bending.

l Vulcanized sealing can meet the Φ8—Φ23 (mm) optical cable sealing needs with excellent re-package performance.

l The ambient temperature ranges from -40 to +65°C.

Applications

The scope of application is: aerial, underground, wall-mounting, wall-mounting in duct and handhold.

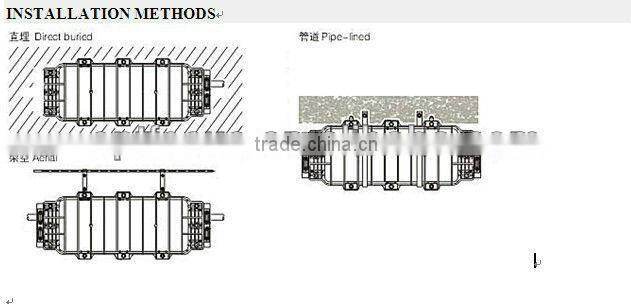

INSTALLATION METHODS

OFS-SCH-01J Fiber Optic Splice Closure Datasheet

Model No.	Size (mm) L×W×H	Core capacity	Cable Ports (max)	Max diameter of cable (mm)	Weight (excluding outside box)
OFS-SCH-01J	450x216x160 (mm)	96	6	Φ8—Φ23 (mm) (mm)	3100g-3800g

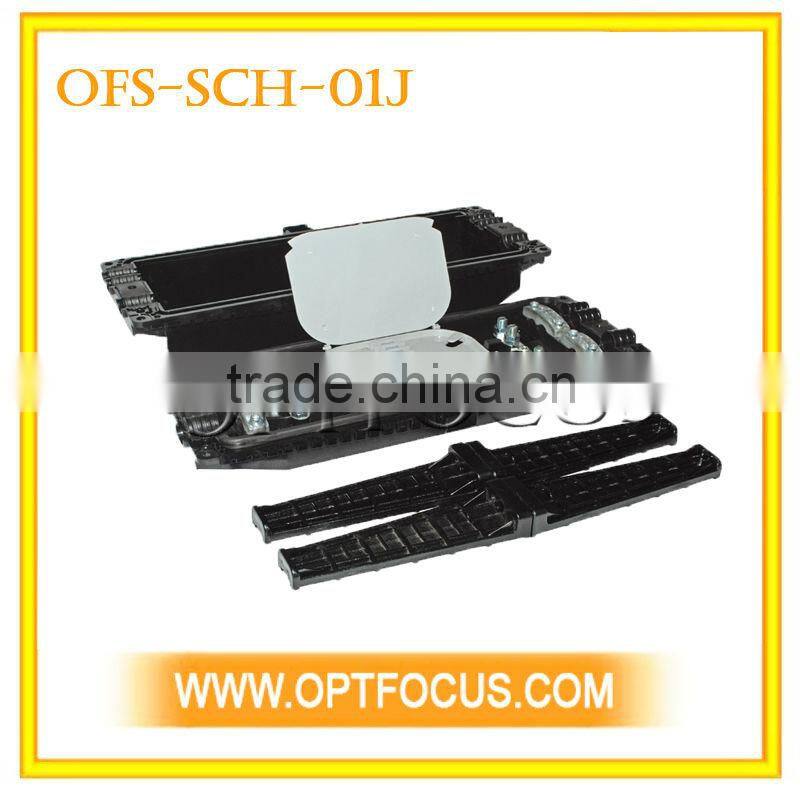

Main components

No.		Name of components	Quantity	Usage	Remarks
1		Housing	1 set	Protecting fiber cable splices in whole	Internal diameter: 378x136 (mm)
2		Insert plate	2 pairs	Fixing the housing	175x56x30(mm)
3		Fiber optic splice tray (FOST)	Max 8 pieces (bunchy) or 6pcs ( ribbon)	Fixing heat shrinkable protective sleeve and holding fibers	Suitable for: Bunchy:12,24(cores) Ribbon:6 (pieces)
4		Foundation	1 set	Fixing reinforced core of fiber cable and fiber optic splice tray (FOST)
5		Seal fitting	1 set	Sealing between FOSC cover and FOSC bottom
6		Port plug	6 pieces	Sealing empty ports
7	Pressure testing valve		1 set	After injecting air it is used for pressure testing and sealing testing	Configuration as per requirement
8	Earthing deriving device		1 set	Deriving metallic components of fiber cable in the FOSC for earthing connection	Configuration as per requirement

2.3 Main accessories and special tools

No.	Name of accessories	Quantity	Usage	Remarks
1	Heat shrinkable protective sleeve		Protecting fiber splices	Configuration as per capacity
2	Nylon tie		Fixing fiber with protective coat	Configuration as per capacity
3	Insulation tape	1 roll	Enlarging diameter of fiber cable for easy fixing
4	Seal tape	1 roll	Enlarging diameter of fiber cable which fits in with seal fitting	Configuration as per specification
5	Hanging hook	1 set	For aerial use
6	Earthing wire	1 piece	Putting through between earthing device
7	Abrasive cloth	1 piece	Scratching fiber cable
8	Labeling paper	1 piece	Labeling fiber
9	Special Wrench	3 pieces	Fixing bolts and tightening nut of reinforced core
10	Measuring paper	1 piece	To measure circle, of which its diameter is enlarged with seal tape
11	Buffer tube	To be decided by customers	Hitched to fibers and fixed with FOST, managing buffer	Configuration as per requirement
12	Desiccant	1 bag	Put into FOSC before sealing for desiccating air.
